Customizable Stainless Steel Railing Components / Side Mount Bracket
Customizable Stainless Steel Railing Components / Side Mount Bracket
Specifications
Brand Name :
Compass
Model Number :
626
Certification :
ISO 9001, SGS
Place of Origin :
Qingdao, China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/A, D/P
Supply Ability :
10000pcs per month
Delivery Time :
30-45days according to quantity
Packaging Details :
Bag + Box + Carton + Pallet
Product name :
Wall Bracket
Plate :
300*70*10mm
Pipe DIA. :
33.7mm, 42.4mm, 48.3mm
Application :
Side mounted bracket
Surface :
Brushed, polished
Packing :
Bag + inner box + carton + pallet
Description

Wall Bracket for Stainless Steel Railing with Glass Designs for Balcony

Our Railing systems allow you to install high quality, sleek railing in a fraction of the time traditional systems require. This means quicker installation, less labor and cost savings. With the use of the system’s bonding agent, it’s no longer necessary to weld connections resulting in a cleaner look. Round system components come in type 304 and 316 stainless steel.

Customizable Stainless Steel Railing Components / Side Mount Bracket

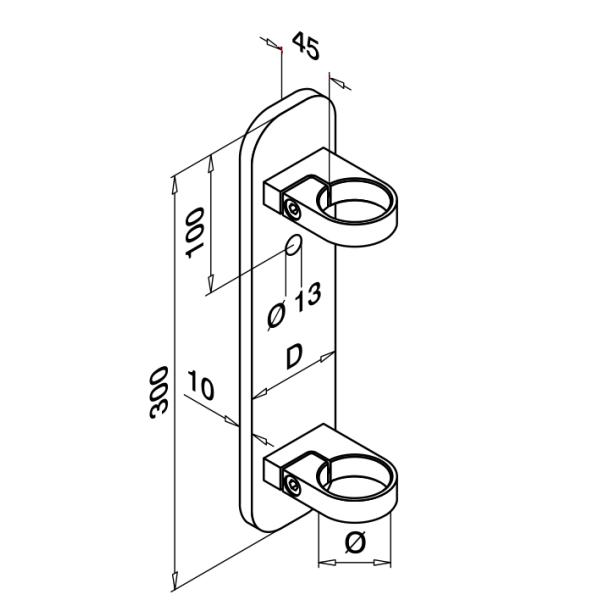

Dimensions.

Product NO. φtube(mm) Base(mm) Height
626.337 33.7 300*70*10 45
626.424 42.4 300*70*10 45
626.483 48.3 300*70*10 45

General terms.

1. Material is in SS304 (V2A) or SS316 (V4A).

2. Surface could be brushed(satin) or polished(mirror) according to requirements.

3. Available tube diameter is 33.7mm, 38.1mm, 42.4mm, 48.3mm or 50.8mm.

4. Working with 1.5mm or 2.0mm pipes.

5. Customized dimensions are welcomed too.

6. Lead time : 35-45days according to order quantity.

7. Packing : Bubble bag per piece, 10pcs in a inner box, 10boxes in a carton, with pallet outside.

8. Delivery term : FOB, CIF, CFR, DDU, DAP.

9. Departure port: Qingdao or according to needs.

10. Payment term: T/T30% as deposit, 70% payed according to Bill of Lading.

Material Standard(%)

AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.00

AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00

AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00

Pre-Sales Service

Inquiry and consulting support.

Sample testing support.

Drawings and design supplied.

Visiting our factory.

After-Sales Service

8hours * 6days online service.

Timely updating on production status.

Fast respond on quality complain within 24 hours.
