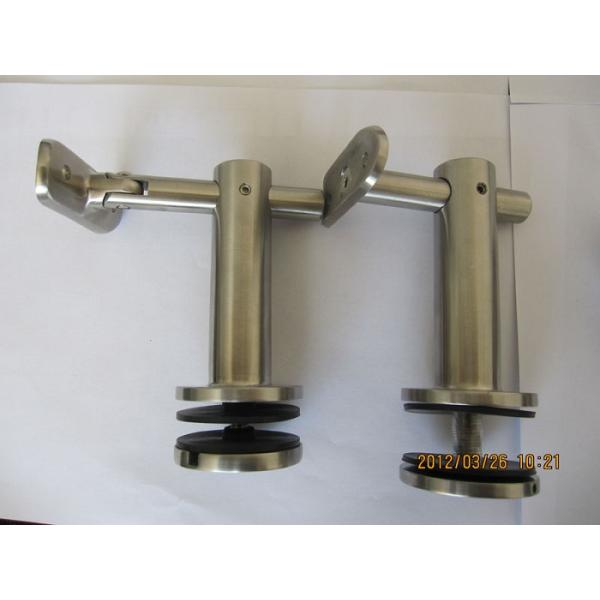

Inox Glass Mount Bracket Used for Steel Railing with Glass Designs for Balcony
Inox Glass Mount Bracket Used for Steel Railing with Glass Designs for Balcony
Inox Glass Mount Bracket Used for Steel Railing with Glass Designs for Balcony
Inox Glass Mount Bracket Used for Steel Railing with Glass Designs for Balcony
Specifications
Brand Name :
Compass
Model Number :
539
Certification :
ISO 9001, SGS
Place of Origin :
Qingdao, China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/A, D/P
Supply Ability :
10000pcs per month
Delivery Time :
30-40days according to quantity
Packaging Details :
Bag + Box + Carton + Pallet
Product :
Inox Glass Mount Bracket
Height :
30-80mm adjutable
Glass thickness :
6-21mm
Material :
AISI304, AISI316, AISI316L
Finish :
Brushed, polished
Application :
Adjustable hanrail support
Description

Inox Glass Mount Bracket Used for Steel Railing with Glass Designs for Balcony

Inox Glass Mount Bracket Used for Steel Railing with Glass Designs for Balcony

Item NO. Top saddle Base Rod Glass Height
539.000 flat 50mm 14mm/ 25mm up to 21.52mm 30 - 80
539.337 33.7mm 50mm 14mm/ 25mm up to 21.52mm 30 - 80
539.381 38.1mm 50mm 14mm/ 25mm up to 21.52mm 30 - 80
539.424 42.4mm 50mm 14mm/ 25mm up to 21.52mm 30 - 80
539.483 48.3mm 50mm 14mm/ 25mm up to 21.52mm 30 - 80
539.508 50.8mm 50mm 14mm/ 25mm up to 21.52mm 30 - 80

This series can be used in both inetrior and outdoor, for residential and commercial buildings. The quality materials keep them corrosion resistance, anti-rust and eco-friendly in nature.

General information.

1. Material is in SS304 (V2A), SS316 (V4A). SS316L.

2. Surface could be brushed(satin) or polished(mirror) according to requirements.

3. Available top saddle is 33.7mm, 38.1mm, 42.4mm, 48.3mm or 50.8mm.

4. The base is in 50mm or customized

5. Lead time : 35-45days according to order quantity.

6. Packing : Bubble bag per piece, 10pcs in a inner box, 10boxes in a carton, with pallet outside.

7. Delivery term : FOB, CIF, CFR, DDU, DAP.

8. Payment term: T/T30% as deposit, 70% payed according to Bill of Lading.

Material Standard(%)

C Si Mn P S Ni Cr Mo
AISI304 ≤0.08 ≤1.00 ≤2.00 ≤0.035 ≤0.030 8.-10.0 18.0-20.0
AISI316 ≤0.08 ≤1.00 ≤2.00 ≤0.035 ≤0.030 10.0-14.0 16.0-18.0 2.0-3.0
AISI316L ≤0.03 ≤1.00 ≤2.00 ≤0.035 ≤0.030 10.0-14.0 16.0-18.0 2.0-3.0

304 is the basic chromium-nickel austenitic stainless steel and has been found suitable for a wide range of applications. It is the most readily available in a variery of prodcut forms. This grade is easy to form and fabricate with excellent resistance to corrosion.

316 offers more corrosion-resistance through the addition of molybdunum. This grade is desirable where the possibility of severe corrosion exists, such as heavy industrial atmospheres and marine environments.

316L is the low carbon version of 316.

Inox Glass Mount Bracket Used for Steel Railing with Glass Designs for Balcony

What can Compass do for you?

  • Stable quality control system
  • Competitive and reasonable price
  • Fast and on-time delivery time
  • Reliable destination service
  • Professional after-sale service
