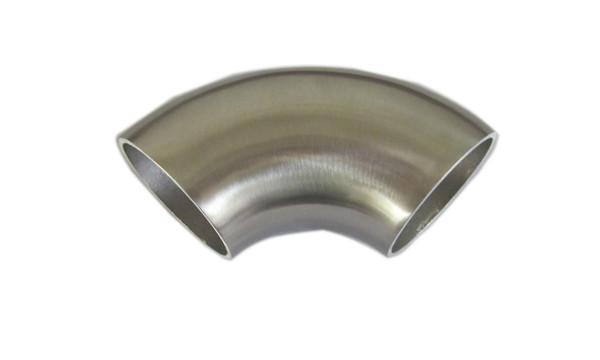

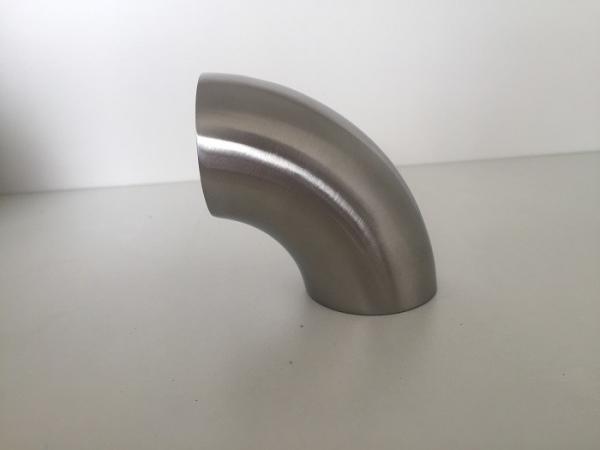

Satin 90 Degree Welded Elbow for Stainless Steel Outdoor Stair Railings
Satin 90 Degree Welded Elbow for Stainless Steel Outdoor Stair Railings
Satin 90 Degree Welded Elbow for Stainless Steel Outdoor Stair Railings
Satin 90 Degree Welded Elbow for Stainless Steel Outdoor Stair Railings
Specifications
Brand Name :
Compass
Model Number :
316
Certification :
ISO 9001, SGS
Place of Origin :
Qingdao, China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/A, D/P
Supply Ability :
10000pcs per month
Delivery Time :
30-40days according to quantity
Packaging Details :
Bag + Box + Carton + Pallet
Item Name :
Satin 90 Degree Welded Elbow
Type :
Welded elbow
Available size :
33.7, 38.1, 42.4, 48.3, 50.8mm
Material :
AISI304, AISI316
Shape :
90 degree
Usage :
Bluastrade,stair, terrace
Description

Satin 90 Degree Welded Elbow for Stainless Steel Outdoor Stair Railings

Whatever stype you would like your railing system to take, Compass can help you with everything you might need. Round or square, witha wooden handrail or a glass balustrade or even fitted with a stainless steel cable system, the possibilities are endless.

Products available.
With kinds of product lines, Compass could be your one-stop supplier.
- Stainless Steel Railing Systems
- Frameless Glass Railing System(glass spigot,glass standoff, Aluminum U channel)
- Slot tube/ Channel tube system
- Balustrade & Handrail Accessories
- Malleable iron pipe key clamps
- Carbon Steel galvanized parts(kick plate clamps, self-closing gate hinge, splice locks, fixing clips)
- Shower / bathroom fittings
- Laminated tempered glass could be supplied if needed.

Satin 90 Degree Welded Elbow for Stainless Steel Outdoor Stair Railings

Available sizes.

Item NO. Outer DIA Tube thickness Material Surface
316.337 33.7mm 1.5mm, 2mm or customized AISI304, AISI316 Brushed, Polished
316.381 38.1mm 1.5mm, 2mm or customized AISI304, AISI316 Brushed, Polished
316.424 42.4mm 1.5mm, 2mm or customized AISI304, AISI316 Brushed, Polished
316.483 48.3mm 1.5mm, 2mm or customized AISI304, AISI316 Brushed, Polished
316.508 50.8mm 1.5mm, 2mm or customized AISI304, AISI316 Brushed, Polished

Material


304 is the basic chromium-nickel austenitic stainless steel and has been found suitable for a wide range of applications. It is the most readily available in a variery of prodcut forms. This grade is easy to form and fabricate with excellent resistance to corrosion.

316 offers more corrosion-resistance through the addition of molybdunum. This grade is desirable where the possibility of severe corrosion exists, such as heavy industrial atmospheres and marine environments.

316L isthe low carbon version of 316.

Care of Stainless Steel.

- Use pater or other protective wrapping one the surface of the stainless steel until processing is complete.

- Handle stainless steel with clean gloves or cloths to guard against stains or finger marks.

- Avoid the use of oily rags or greasy cloths when wiping the surface

- If possible, rinse with water after cleaning.

Satin 90 Degree Welded Elbow for Stainless Steel Outdoor Stair Railings
