Brushed Fixed Post Mount Used for Stainless Steel Pipe Railing

Available dimensions.

Application.

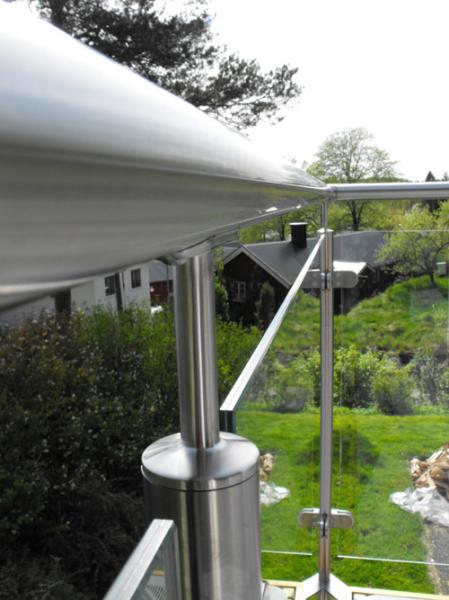

This Brushed Fixed Post Mount Used for Stainless Steel Pipe Railing is widely as support for top handrails in stainless steel railings, stainless steel banister rails, stainless steel stair railings for balcony, terrace, staircase, etc.

Remarks.

For this series, the top saddle could coud work with tubes in the same diameter with the bottom, or they can work with different diameter pipes according to special requirements. Send us the dimensions you need, more information could be confirmed accordingly.

Product advantages

Our Railing systems allow you to install high quality, sleek railing in a fraction of the time traditional systems require. This means quicker installation, less labor and cost savings. With the use of the system’s bonding agent, it’s no longer necessary to weld connections resulting in a cleaner look. Round system components come in type 304 and 316 stainless steel.

Material Standard(%)

AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.00

AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00

AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00

304 is the basic chromium-nickel austenitic stainless steel and has been found suitable for a wide range of applications. It is the most readily available in a variery of prodcut forms. This grade is easy to form and fabricate with excellent resistance to corrosion.

316 offers more corrosion-resistance through the addition of molybdunum. This grade is desirable where the possibility of severe corrosion exists, such as heavy industrial atmospheres and marine environments.

316L isthe low carbon version of 316.
