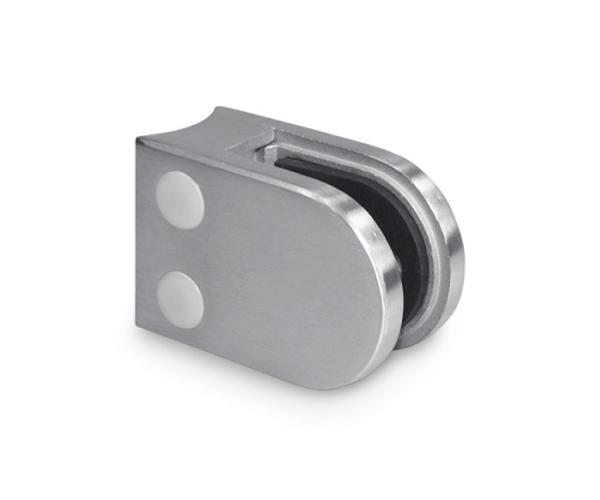

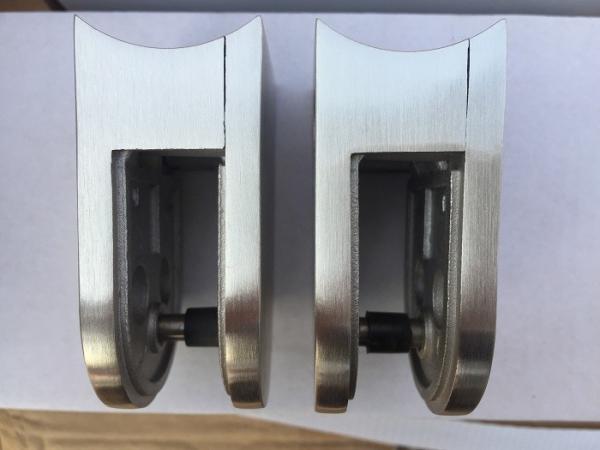

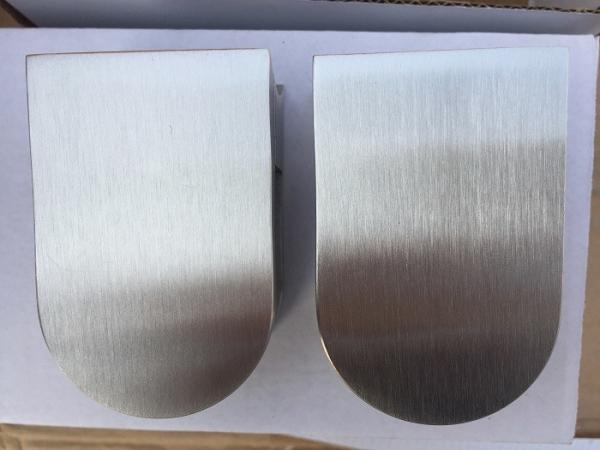

Stainless and Glass Balustrade 45*63mm Glass Clamp for 12.76mm Glass
Stainless and Glass Balustrade 45*63mm Glass Clamp for 12.76mm Glass
Stainless and Glass Balustrade 45*63mm Glass Clamp for 12.76mm Glass
Stainless and Glass Balustrade 45*63mm Glass Clamp for 12.76mm Glass
Stainless and Glass Balustrade 45*63mm Glass Clamp for 12.76mm Glass
Stainless and Glass Balustrade 45*63mm Glass Clamp for 12.76mm Glass
Specifications
Brand Name :
Compass
Model Number :
102.4563
Certification :
ISO 9001
Place of Origin :
Qingdao, China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/A, D/P
Supply Ability :
10000pcs per month
Delivery Time :
30-40days according to quantity
Packaging Details :
6pcs in a box, 10boxes in a carton.
Product name :
45*63mm Glass Clamp for 12.76mm Glass
Size :
45*63*29mm
Weight :
297g
Finish :
Satin(brushed) / Mirror(polished)
Base :
Flat or for 33.7 / 38.1 / 42.4 / 48.3 /50.8mm tube
Packing :
6pcs in a box, 10boxes in a carton, with pallet outside
Description

Stainless and Glass Balustrade 45*63mm Glass Clamp for 12.76mm Glass

Stainless and Glass Balustrade 45*63mm Glass Clamp for 12.76mm Glass

Application.

Our glass calmps are very versatile part of the railing systems. Available in both flat and concave back, they can be used with either round or square balusters ot mount glass or other architectural panels.

When it comes to our glass solutions, one thing is perfectly clear: Safety first? All glass clamps are certified and grip the glass panels with immense strength. Our glass clamps have been successfully tested with both tempered and laminated glass.

Used in both residential and commercial applidations, the glass railing systems allow you to showcase the view, rather than hide it.

Material Standard(%)

AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.00

AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00

AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00

Pre-Sales Service.

Inquiry and consulting support.

Sample testing support.

Drawings and design supplied.

Visiting our factory.

After-Sales Service.

8hours * 6days online service.

Timely updating on production status.

Fast respond on quality complain within 24 hours.

General terms.

- Lead time: 35-50days according to order quantities.

- Payment term: T/T 30% deposit, 70% balance payed according to the documents copy.

- Departure port: Qingdao or other ports according to needs.

- Delivery term : FOB, CIF, CFR, DDU, DAP..

- Payment term: T/T30% as deposit, 70% payed according to Bill of Lading.

Dimensions.

Item NO. sizes Base Glass thickenss(mm)
102.4563.000 45*63*29mm flat for square tube 6, 6.76, 8, 8.76, 10, 10.76, 12, 12.76
102.4563.337 45*63*29mm for 33.7mm round tube 6, 6.76, 8, 8.76, 10, 10.76, 12, 12.76
102.4563.381 45*63*29mm for 38.1mm round tube 6, 6.76, 8, 8.76, 10, 10.76, 12, 12.76
102.4563.424 45*63*29mm for 42.4mm round tube 6, 6.76, 8, 8.76, 10, 10.76, 12, 12.76
102.4563.483 45*63*29mm for 48.3mm round tube 6, 6.76, 8, 8.76, 10, 10.76, 12, 12.76
102.4563.508 45*63*29mm for 50.8mm round tube 6, 6.76, 8, 8.76, 10, 10.76, 12, 12.76


Stainless and Glass Balustrade 45*63mm Glass Clamp for 12.76mm Glass

Stainless and Glass Balustrade 45*63mm Glass Clamp for 12.76mm Glass
