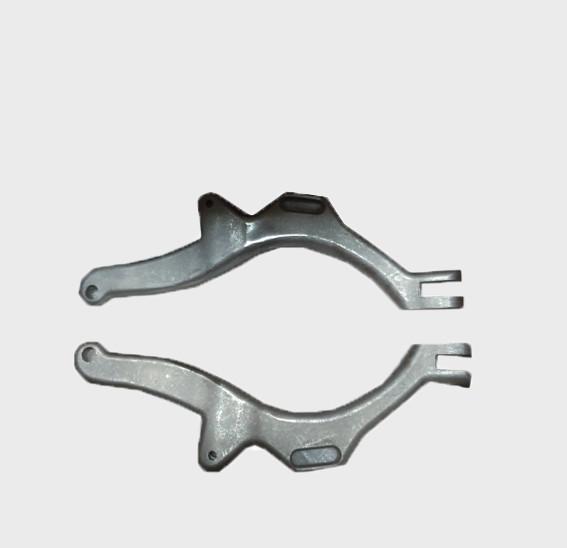

SUS304 Lost Wax Precision Casting CT4~CT6 Stainless Steel Casting Instruments
SUS304 Lost Wax Precision Casting CT4~CT6 Stainless Steel Casting Instruments
SUS304 Lost Wax Precision Casting CT4~CT6 Stainless Steel Casting Instruments
SUS304 Lost Wax Precision Casting CT4~CT6 Stainless Steel Casting Instruments
SUS304 Lost Wax Precision Casting CT4~CT6 Stainless Steel Casting Instruments
SUS304 Lost Wax Precision Casting CT4~CT6 Stainless Steel Casting Instruments
Specifications
Brand Name :
ABlinox
Model Number :
ABL-V07
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
200Ton/month
Delivery Time :
33days
Packaging Details :
PP bag/carton/plywood crate
Certification :
ISO9001:2015,CE
Product name :
Medical Apparatus And Instruments
Material :
Stainless steel 304
Usage for :
Medical Treatment
weight :
1.9kg
standrad :
GB,ISO, AISI, DIN, etc
Certificate :
ISO 2015
Surface Roughness :
Ra 0.4um-13.49um
Service :
OEM
Sample day :
25days
Description

SUS304 lost wax casting process CT4~CT6 Stainless Steel Precision Casting Instruments For Pet Hospital

Place of Origin: Guangdong,China Port: Guangzhou
Material: Stainless Steel 304,201,202,CF8,,WCB,1.4408,1.4308, Size: According to drawing
Technology: Precision Investment Casting Process: CNC Machining,Surface Treatment
Surface Treatment : Customized Casting Tolerance: CT4~CT6
Brand Name: ABLinox or OEM Packing: As client’s requirements
Standard: GB,DIN,AISI,ASTM,BS,JIS Certification: ISO9001:2015
Quality Control: 100% inspection Lead Time: 30~35 Days
Application: Industrial Parts

Applications

Food processing machinery

Pumps

Valves

Pipe Fittings

Automotive

Marine and Oil

Machinery

Power & Energy

Mechanical Castings

​Production Process

1.TOOL MAKING
A wax injection mold is designed and built to produce castings per customer specifications.
2. WAX PRODUCTION
A wax pattern is produced from the wax injection mold.
3. PATTERN ASSEMBLY
Wax patterns are attached to gating system by hot knife.
4. SHELL MAKING
The pattern assembly is dipped into a ceramic slurry, coated with a refractory material and dried. The process is repeated until the desired thickness and strength is achieved.
5. DEWAXING
Using regulated steam pressure, an autoclave melts and remove the wax from the ceramic shells.
6.SHELL PREHEAT
High temperature ovens cure and preheat the ceramic shells before pouring.
7.CASTING
Pre-heated Ceramic cavities are poured with the molten metal.
8.KNOCK OUT
The ceramic shell is removed by vibration knocking and the cluster is cleaned.
9.CUT OFF
Castings are cut off from the gating system.
10.MACHINING,SURFACE FINISH,AND INSPECTION
After cut off and gate removal, all secondary finishing operations are performed. Each casting is inspected according to customer specifications and requirements.

SUS304 Lost Wax Precision Casting CT4~CT6 Stainless Steel Casting Instruments

Equipments

We specialize in turning, drilling, tapping, and a variety of other machining capabilities to offer a complete product.

With these in-house turning capabilities,We also can quote your bar stock requirements, which complements

our investment casting line.

SUS304 Lost Wax Precision Casting CT4~CT6 Stainless Steel Casting Instruments

Why Choose Us

· Expert engineering and design assistance

· Personalized, one-on-one customer service with fast response times for inquiries

· ISO 9001:2015 certification, demonstrating our commitment to quality management

· TS16949 for classification and inspection of metal castings

· Prototype production capabilities for testing new or unique components

· Competitive pricing structure

· Short project lead times and on-time shipping

Our Service

l OEM & ODM l Mould design l Drawing design l Investment Casting l Heat treatment

l Machining l Surface treatment l Assembly l Packing l Export & Trading to whole world

l Fast response within 24 hours l Project management l After-sales service

SUS304 Lost Wax Precision Casting CT4~CT6 Stainless Steel Casting Instruments

Quality Control

Quality inspection at each stage,

1. Incoming material inspection 2. Inspection of work-in-progress

3. Finished product inspection 4. Random warehouse inspections
