Woven Stainless Steel Ferrule Mesh , 304 / 316 Stainless Steel Diamond Mesh
Woven Stainless Steel Ferrule Mesh , 304 / 316 Stainless Steel Diamond Mesh
Woven Stainless Steel Ferrule Mesh , 304 / 316 Stainless Steel Diamond Mesh
Woven Stainless Steel Ferrule Mesh , 304 / 316 Stainless Steel Diamond Mesh
Woven Stainless Steel Ferrule Mesh , 304 / 316 Stainless Steel Diamond Mesh
Woven Stainless Steel Ferrule Mesh , 304 / 316 Stainless Steel Diamond Mesh
Specifications
Brand Name :
wanchi
Model Number :
FM-006
Certification :
SGS ISO9001
Place of Origin :
Hebei
MOQ :
100 rolls
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 rolls per week
Delivery Time :
7 days after payment received
Packaging Details :
Usually, the mesh will be rolled and packed into the P.P. woven bags,the size of bulk roll is approx
Price :
Negotiation
color :
black,silver
material :
304,316
technique :
weave
specification :
7*7 7*19
feature :
durable
aperture :
20mm-100mm
Description

Woven Durable Stainless Steel Ferruled Mesh With Material 304 And 316

Product Details

Material SS wire 201, 304, 304L, 316, 316L, 431, 321 347 etc.
Wire diameter 0.018-2.03mm
Woven style plain weave,twill weave,dutch weave,reversed dutch weave,crimped weave
Mesh counts

Plain weave wire mesh can be woven up to 400 mesh.

Twill weave wire mesh can be woven from 30 to 635 mesh.
Packaging Details inner kraft, outside plastic cloth, put into wooden pallet or case

Feature

1). High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
2). Anti-corrosive, resist the rust, can be repeated use.
3). Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
4). Can bear the heavy snow and the gale very much.
5). Without toxic material, safety, environmental protection.

Specification

Material:

stainless steel type 304, 304L, 316, 316L

Structure:

7x7 and 7x19

Standard cable diameter:

1/8", 3/32", 1/16", and 3/64"

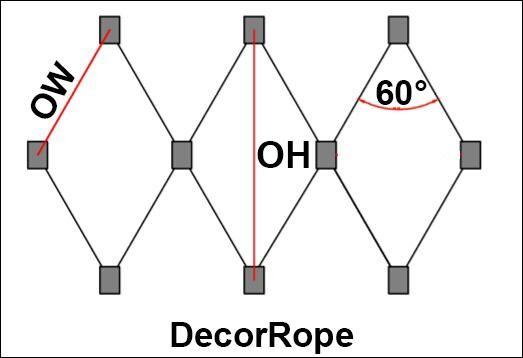

Standard mesh opening size:

1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4"

The list of Stainless Steel Wire Rope Mesh (knotted mesh)Material made of S.S 304 or 316 and 316L
Code Wire Rope Construction Min. Breaking Load
(KN)		 Wire Rope Diameter Aperture
Inch mm Inch mm
WC-3210 7x19 8.735 1/8 3.2 4" x 4" 102 x 102
WC-3276 7x19 8.735 1/8 3.2 3" x 3" 76 x 76
WC-3250 7x19 8.735 1/8 3.2 2" x 2" 51 x 51
WC-2410 7x7 5.315 3/32 2.4 4" x 4" 102 x 102
WC-2476 7x7 5.315 3/32 2.4 3" x 3" 76 x 76
WC-2450 7x7 5.315 3/32 2.4 2" x 2" 51 x 51
WC-2076 7x7 3.595 5/64 2.0 3" x 3" 76 x 76
WC-2050 7x7 3.595 5/64 2.0 2" x 2" 51 x 51
WC-2038 7x7 3.595 5/64 2.0 1.5" x 1.5" 38 x 38
WC-1676 7x7 2.245 1/16 1.6 3" x 3" 76 x 76
WC-1650 7x7 2.245 1/16 1.6 2" x 2" 51 x 51
WC-1638 7x7 2.245 1/16 1.6 1.5" x 1.5" 38 x 38
WC-1625 7x7 2.245 1/16 1.6 1" x 1" 25.4 x 25.4
WC-1250 7x7 1.36 3/64 1.2 2" x 2" 51 x 51
WC-1238 7x7 1.36 3/64 1.2 1.5" x 1.5" 38 x 38
WC-1225 7x7 1.36 3/64 1.2 1"x1" 25.4x25.4
WC-1220 7x7 1.36 3/64 1.2 4/5"x4/5" 20x20

Application

(1) screening and filtering in acid or alkali environment.

(2) as mud mesh in oil industry, chemical packing nets,

(3) chemical fiber industry as screen mesh,

(4) electroplating industry as pickling nets.

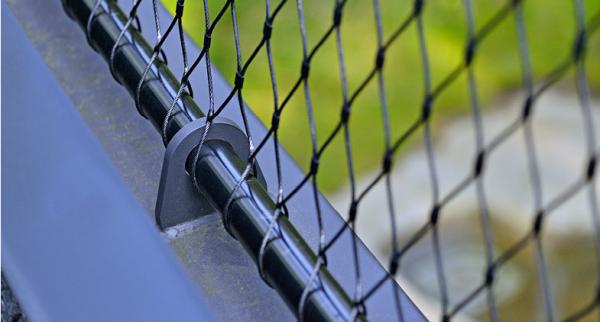

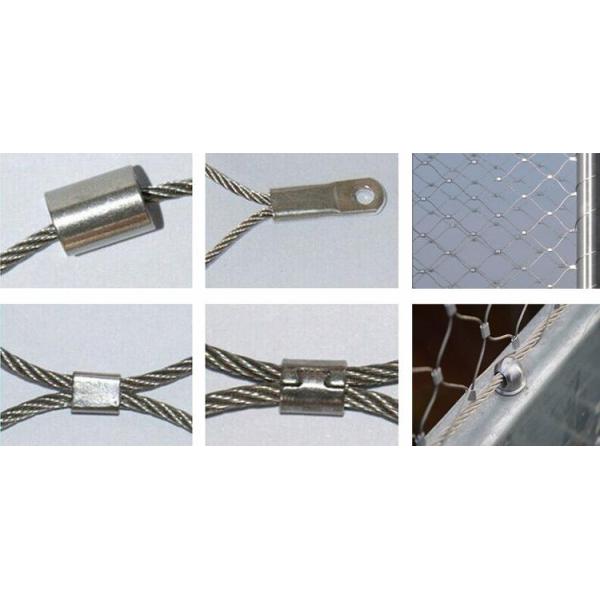

Product Show

Woven Stainless Steel Ferrule Mesh , 304 / 316 Stainless Steel Diamond Mesh

Woven Stainless Steel Ferrule Mesh , 304 / 316 Stainless Steel Diamond Mesh

Our Packing

Woven Stainless Steel Ferrule Mesh , 304 / 316 Stainless Steel Diamond Mesh
