Stainless Steel Wire Rope Ferrule Mesh Black / Silver Excellent Heat Resistance
Stainless Steel Wire Rope Ferrule Mesh Black / Silver Excellent Heat Resistance
Stainless Steel Wire Rope Ferrule Mesh Black / Silver Excellent Heat Resistance
Stainless Steel Wire Rope Ferrule Mesh Black / Silver Excellent Heat Resistance
Stainless Steel Wire Rope Ferrule Mesh Black / Silver Excellent Heat Resistance
Stainless Steel Wire Rope Ferrule Mesh Black / Silver Excellent Heat Resistance
Specifications
Brand Name :
wanchi
Model Number :
FM-014
Certification :
SGS ISO9001
Place of Origin :
Hebei
MOQ :
100 rolls
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 rolls per week
Delivery Time :
7 days after payment received
Packaging Details :
Usually, the mesh will be rolled and packed into the P.P. woven bags,the size of bulk roll is approx
Price :
Negotiation
color :
silver
material :
304,316
technique :
weave
specification :
7*7 7*19
feature :
corrosion resistance
rope diameter :
1.2-3.2mm
Description

Black And Silver Stainless Steel Ferruled Mesh With Kinds Of Rope Constructions

Product Details

Advantage


1. Excellent heat resistant and high intensity
2. High strength and strong integration
3. Flat and smooth surface combined with firm structure
4. Perfect anti - rust property
5. Stay holistic even cut into fragmented parts
6. Long use life

Place of Origin:

Hebei, China (Mainland)

Material:

Stainless Steel Wire

Type:

Rope Mesh

Application:

Woven Wire Mesh, Construction of Animal Enclosure,Animal Cage,Aviary

Weave Style:

Plain Weave

Wire Diameter:

1.2MM-3.2MM

Technique:

Woven

Wire Rope Construction:

1x1, 1x6, 1x7, 1X12, 1X19, 7x7, 7x19, 19x7

Opening size:

1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4"

aviary mesh feature:

Lightweight, high-strength, never rust, softness

Specification

Material:

stainless steel type 304, 304L, 316, 316L

Structure:

7x7 and 7x19

Standard cable diameter:

1/8", 3/32", 1/16", and 3/64"

Standard mesh opening size:

1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4"

The list of Stainless Steel Wire Rope Mesh (knotted mesh)Material made of S.S 304 or 316 and 316L
Code Wire Rope Construction Min. Breaking Load
(KN)		 Wire Rope Diameter Aperture
Inch mm Inch mm
WC-3210 7x19 8.735 1/8 3.2 4" x 4" 102 x 102
WC-3276 7x19 8.735 1/8 3.2 3" x 3" 76 x 76
WC-3250 7x19 8.735 1/8 3.2 2" x 2" 51 x 51
WC-2410 7x7 5.315 3/32 2.4 4" x 4" 102 x 102
WC-2476 7x7 5.315 3/32 2.4 3" x 3" 76 x 76
WC-2450 7x7 5.315 3/32 2.4 2" x 2" 51 x 51
WC-2076 7x7 3.595 5/64 2.0 3" x 3" 76 x 76
WC-2050 7x7 3.595 5/64 2.0 2" x 2" 51 x 51
WC-2038 7x7 3.595 5/64 2.0 1.5" x 1.5" 38 x 38
WC-1676 7x7 2.245 1/16 1.6 3" x 3" 76 x 76
WC-1650 7x7 2.245 1/16 1.6 2" x 2" 51 x 51

WC-1638

 7x7 2.245 1/16 1.6 1.5" x 1.5" 38 x 38
WC-1625 7x7 2.245 1/16 1.6 1" x 1" 25.4 x 25.4
WC-1250 7x7 1.36 3/64 1.2 2" x 2" 51 x 51
WC-1238 7x7 1.36 3/64 1.2 1.5" x 1.5" 38 x 38
WC-1225 7x7 1.36 3/64 1.2 1"x1" 25.4x25.4
WC-1220 7x7 1.36 3/64 1.2 4/5"x4/5" 20x20

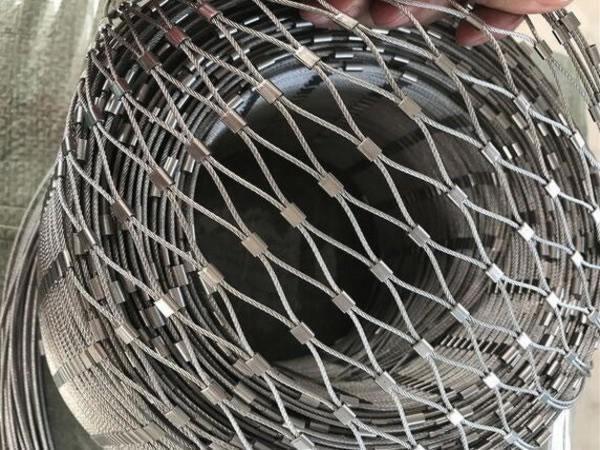

Product Show
