Anti Corrosion Stainless Steel Ferrule Rope Mesh For Corridor / Flyover Protection
Anti Corrosion Stainless Steel Ferrule Rope Mesh For Corridor / Flyover Protection
Anti Corrosion Stainless Steel Ferrule Rope Mesh For Corridor / Flyover Protection
Anti Corrosion Stainless Steel Ferrule Rope Mesh For Corridor / Flyover Protection
Anti Corrosion Stainless Steel Ferrule Rope Mesh For Corridor / Flyover Protection
Anti Corrosion Stainless Steel Ferrule Rope Mesh For Corridor / Flyover Protection
Specifications
Brand Name :
wanchi
Model Number :
RM-012
Certification :
SGS ISO9001
Place of Origin :
Hebei
MOQ :
100 rolls
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 rolls per week
Delivery Time :
7 days after payment received
Packaging Details :
Usually, the mesh will be rolled and packed into the P.P. woven bags,the size of bulk roll is approx
Price :
Negotiation
material :
304,316
technique :
weave
specification :
7*7 7*19
feature :
corrosion resistance
rope diameter :
1.2mm-3.2mm
aperture :
20mm-100mm
Description

Diamond Metal Grid Stainless Steel Rope Mesh With Material 304,316 And 316L

Product Details

Place of Origin Hebei, China (Mainland)
Material stainless Steel Wire
Type Rope Mesh
certificate ISO9001,SGS
Weave Style Plain Weave
Wire Diameter 1.2MM-3.2MM
Technique Woven
PORT Tianjin
Brand Name wanchi
Hole Shape rhombus
Rope Construction 7*7 ,7*19
aviary mesh feature Lightweight, high-strength, never rust, softness


Product Parameter

Usage plant climbing wall, zoo mesh
Technique Woven
Application Woven Wire Mesh
Hole shape Square
Surface treatment process polishing
Length Requirement
Material SS 304,316,316L
Weave Style Plain Weave/Twill Weave

specification

Stainless Steel Rope Mesh
structure of wire Wire rope Diameter Aperture Breaking stenght Min.Breaking load (KN) Weight per sqm
inch mm inch mm lbs. KN KG
7x19 1/8 3.2 4.75 x 4.75 120 x 120 1,600 5.1 0.83
7x19 1/8 3.2 4 x 4 102 x 102 1,600 5.1 1.02
7x19 1/8 3.2 3.55 x 3.55 90 x 90 1,600 5.1 1.14
7x19 1/8 3.2 3 x 3 76 x 76 1,600 5.1 1.35
7x19 1/8 3.2 2 x 2 51 x 51 1,600 5.1 2.03
7x7 3/32 2.4 4 x 4 102 x 102 920 2.65 0.57
7x7 3/32 2.4 3.55 x 3.55 90 x 90 920 2.65 0.64
7x7 3/32 2.4 3 x 3 76 x 76 920 2.65 0.76
7x7 3/32 2.4 2.4 x 2.4 60 x 60 920 2.65 0.99
7x7 3/32 2.4 2 x 2 51 x 51 920 2.65 1.14
7x7 5/64 2 3 x 3 76 x 76 676 2.55 0.53
7x7 5/64 2 2.4 x 2.4 60 x 60 676 2.55 0.69
7x7 5/64 2 2 x 2 51 x 51 676 2.55 0.8
7x7 5/64 2 1-1/2 x 1-1/2 38 x 38 676 2.55 1.07
7x7 1/16 1.6 3 x 3 76 x 76 480 1.43 0.34
7x7 1/16 1.6 2.4X2.4 60X60 480 1.43 0.41
7x7 1/16 1.6 2 x 2 51 x 51 480 1.43 0.51
7x7 1/16 1.6 1-1/2 x 1-1/2 38 x 38 480 1.43 0.68
7x7 1/16 1.6 1.2 x 1.2 30 x 30 480 1.43 0.85
7x7 1/16 1.6 1 x 1 25.4 x 25.4 480 1.43 1.02
7x7 3/64 1.2 2 x 2 51 x 51 270 0.7 0.29
7x7 3/64 1.2 1-1/2 x 1-1/2 38 x 38 270 0.7 0.38
7x7 3/64 1.2 1.2 x 1.2 30 x 30 270 0.7 0.48
7x7 3/64 1.2 1 x 1 25.4 x 25.4 270 0.7 0.58
7x7 3/64 1.2 4/5 X 4/5 20 x 20 270 0.7 0.73

Application

(1) Animal Enclosure mesh
(2) animal cages, bird netting
(3) Agriculture
(4) Residential
(5) Sports
(6) Fall Security
(7) Ocean Park and other similar environments
(8) Garden decoration and construction and renovation.

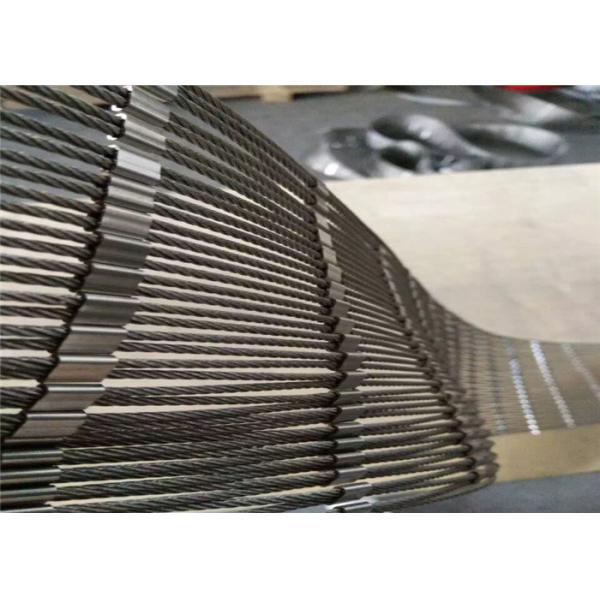

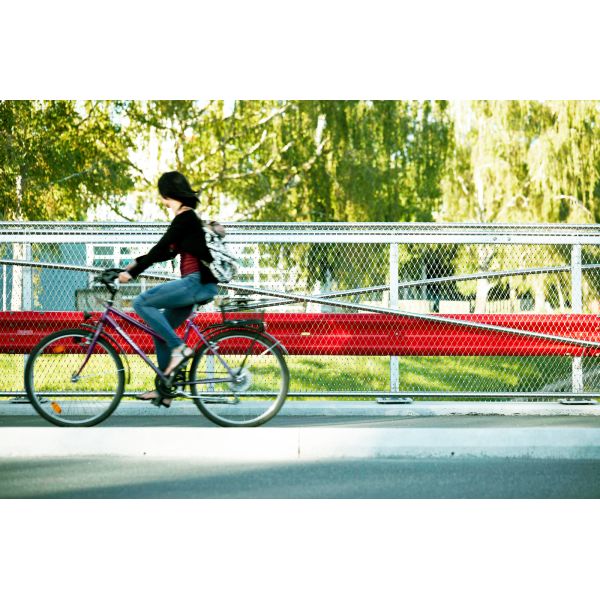

Product Show

Anti Corrosion Stainless Steel Ferrule Rope Mesh For Corridor / Flyover Protection

Anti Corrosion Stainless Steel Ferrule Rope Mesh For Corridor / Flyover Protection

Anti Corrosion Stainless Steel Ferrule Rope Mesh For Corridor / Flyover Protection
