Silver Stainless Steel Balustrade Mesh , Custom Size Metal Mesh Stair Railing
Silver Stainless Steel Balustrade Mesh , Custom Size Metal Mesh Stair Railing
Silver Stainless Steel Balustrade Mesh , Custom Size Metal Mesh Stair Railing
Silver Stainless Steel Balustrade Mesh , Custom Size Metal Mesh Stair Railing
Silver Stainless Steel Balustrade Mesh , Custom Size Metal Mesh Stair Railing
Silver Stainless Steel Balustrade Mesh , Custom Size Metal Mesh Stair Railing
Silver Stainless Steel Balustrade Mesh , Custom Size Metal Mesh Stair Railing
Silver Stainless Steel Balustrade Mesh , Custom Size Metal Mesh Stair Railing
Specifications
Brand Name :
wanchi
Model Number :
BM-004
Certification :
SGS ISO9001
Place of Origin :
Hebei
MOQ :
50 square meter
Payment Terms :
T/T, Western Union
Supply Ability :
500+square meter+per week
Delivery Time :
5-8 work days
Packaging Details :
PP film inside and wooden case outside
Price :
Negotiation
Material :
Stainless steel wire 304 or 316
Rope Construction :
7x7 7x19
Rope Diameter :
1.2mm-3.2mm
Aperture :
20mm
Color :
Silver
Mesh Size :
Custom-made
Description

Custom Size Stainless Steel Rope Balustrade Mesh In The Downstairs

Description

Stainless steel rope net (roof fence net) (roof protection net) (roof soft net) (roof flexible net) is made of stainless steel rope twisted up and down and extruded with a steel sleeve. The diameter of the wire rope is 1.0, 1.5, 2.0 , 3.0mm, wire rope structure is 7 * 7, 7 * 19, 1 * 19, etc., and the material is 304, 316, 316L. Secondly, we can also provide hot-dip galvanized wire rope mesh products. The material of the steel sleeve is mainly stainless steel sleeve, and there are aluminum sleeve, copper sleeve and copper tinned sleeve for customers' choice.

Speacification

Code Rope Construction Rope Diameter Aperture Breaking Force
Inch mm mm kN
WANCHI-01 7X19 1/8 3.2 120X208 7.38
WANCHI-02 7X19 1/8 3.2 100X173 7.38
WANCHI-03 7X19 1/8 3.2 90X156 7.38
WANCHI-04 7X7 3/32 2.4 100X173 4.18
WANCHI-05 7X7 3/32 2.4 90X156 4.18
WANCHI-06 7X7 3/32 2.4 80X139 4.18
WANCHI-07 7X7 3/32 2.4 70X121 4.18
WANCHI-08 7X7 5/64 2.0 100X173 3.17
WANCHI-09 7X7 5/64 2.0 90X156 3.17
WANCHI-10 7X7 5/64 2.0 80X139 3.17
WANCHI-11 7X7 5/64 2.0 70X121 3.17
WANCHI-12 7X7 1/16 1.6 80X139 2.17
WANCHI-13 7X7 1/16 1.6 70X121 2.17
WANCHI-14 7X7 1/16 1.6 60X104 2.17
WANCHI-15 7X7 1/16 1.6 50X87 2.17
WANCHI-16 7X7 3/64 1.2 80X139 1.22
WANCHI-17 7X7 3/64 1.2 60X104 1.22
WANCHI-18 7X7 3/64 1.2 50X87 1.22
WANCHI-19 7X7 3/64 1.2 40X69 1.22

About accessories

Main installation accessories: stainless steel standard parts, stainless steel wire rope, stainless steel collar, stainless steel buckle, etc. After installation, no maintenance is required at a later stage.
Attention should be paid during installation: the distribution of accessories is reasonable, pay attention to the bearing capacity, and the angle of the net surface is reasonable. Be sure to install each standard part and other mounting accessories firmly. The net connection must be tight and there should be no exposed head.

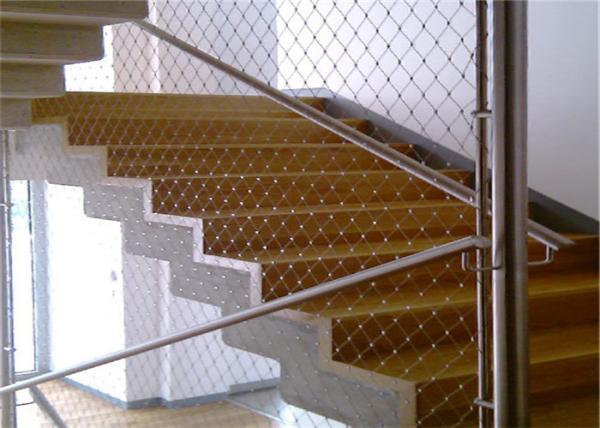

Photo Show

Silver Stainless Steel Balustrade Mesh , Custom Size Metal Mesh Stair Railing

Silver Stainless Steel Balustrade Mesh , Custom Size Metal Mesh Stair Railing

Silver Stainless Steel Balustrade Mesh , Custom Size Metal Mesh Stair Railing
