Custom Made 304 Silver Stainless Steel Zoo Mesh For Animals Leopard Protection
Custom Made 304 Silver Stainless Steel Zoo Mesh For Animals Leopard Protection
Custom Made 304 Silver Stainless Steel Zoo Mesh For Animals Leopard Protection
Custom Made 304 Silver Stainless Steel Zoo Mesh For Animals Leopard Protection
Custom Made 304 Silver Stainless Steel Zoo Mesh For Animals Leopard Protection
Custom Made 304 Silver Stainless Steel Zoo Mesh For Animals Leopard Protection
Custom Made 304 Silver Stainless Steel Zoo Mesh For Animals Leopard Protection
Custom Made 304 Silver Stainless Steel Zoo Mesh For Animals Leopard Protection
Specifications
Brand Name :
Wanchi
Model Number :
ZM-002
Certification :
SGS ISO9001
Place of Origin :
Hebei
MOQ :
50 Square Meter
Payment Terms :
T/T, Western Union
Supply Ability :
1000000 Square Meter/Square Meters per Month
Delivery Time :
15 days after payment
Packaging Details :
Packing in Wooden box or Carton box based on the weight
Price :
Negotiation
Color :
Silver
Material :
304
Technology :
Woven
Rope diameter :
1.2mm,1.5mm,2.0mm
Brand name :
Wanchi
Aperture :
20mm-100mm
Description

Custom-made 304 Silver Stainless Steel Zoo Mesh For Animals-Leopard Protection

The describe of our product

The stainless steel wire woven rope mesh material is used high quality stainless steel wire cable, the stainless steel grade includes type 304, type 304 L, type 316, type 316L.

The stainless steel wire woven rope mesh is rhombus mesh, has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force,most resisting rain, snow, hurricane.

Speacification

Stainless Steel Rope Mesh
Code structure of wire Wire rope Diameter Aperture Breaking stenght Min.Breaking load (KN) Weight per sqm
inch mm inch mm lbs. KN KG
WCH-3212P/B 7x19 1/8 3.2 4.75 x 4.75 120 x 120 1,600 5.1 0.83
WCH-3210P/B 7x19 1/8 3.2 4 x 4 102 x 102 1,600 5.1 1.02
WCH-3290P/B 7x19 1/8 3.2 3.55 x 3.55 90 x 90 1,600 5.1 1.14
WCH-3276P/B 7x19 1/8 3.2 3 x 3 76 x 76 1,600 5.1 1.35
WCH-3250P/B 7x19 1/8 3.2 2 x 2 51 x 51 1,600 5.1 2.03
WCH-2410P/B 7x7 3/32 2.4 4 x 4 102 x 102 920 2.65 0.57
WCH-2490P/B 7x7 3/32 2.4 3.55 x 3.55 90 x 90 920 2.65 0.64
WCH-2476P/B 7x7 3/32 2.4 3 x 3 76 x 76 920 2.65 0.76
WCH-2460P/B 7x7 3/32 2.4 2.4 x 2.4 60 x 60 920 2.65 0.99
WCH-2450P/B 7x7 3/32 2.4 2 x 2 51 x 51 920 2.65 1.14
WCH-2076P/B 7x7 5/64 2 3 x 3 76 x 76 676 2.55 0.53
WCH-2060P/B 7x7 5/64 2 2.4 x 2.4 60 x 60 676 2.55 0.69
WCH-2050P/B 7x7 5/64 2 2 x 2 51 x 51 676 2.55 0.8
WCH-2038P/B 7x7 5/64 2 1-1/2 x 1-1/2 38 x 38 676 2.55 1.07
WCH-1676P/B 7x7 1/16 1.6 3 x 3 76 x 76 480 1.43 0.34
WCH-1660P/B 7x7 1/16 1.6 2.4X2.4 60X60 480 1.43 0.41
WCH-1650P/B 7x7 1/16 1.6 2 x 2 51 x 51 480 1.43 0.51
WCH-1638P/B 7x7 1/16 1.6 1-1/2 x 1-1/2 38 x 38 480 1.43 0.68
WCH-1630P/B 7x7 1/16 1.6 1.2 x 1.2 30 x 30 480 1.43 0.85
WCH-1625P/B 7x7 1/16 1.6 1 x 1 25.4 x 25.4 480 1.43 1.02
WCH-1250P/B 7x7 3/64 1.2 2 x 2 51 x 51 270 0.7 0.29
WCH-1238P/B 7x7 3/64 1.2 1-1/2 x 1-1/2 38 x 38 270 0.7 0.38
WCH-1230P/B 7x7 3/64 1.2 1.2 x 1.2 30 x 30 270 0.7 0.48
WCH-1225P/B 7x7 3/64 1.2 1 x 1 25.4 x 25.4 270 0.7 0.58
WCH-1220P/B 7x7 3/64 1.2 4/5 X 4/5 20 x 20 270 0.7 0.73

Product applications

As the material is virtually indestructible stainless steel, then it can be safely contain any species on land, in the air indoors or out.

Product Parameter

Name Cheap Price 304 316 Stainless Steel Wire Rope Net Zoo
Mesh/Stainless Steel Cable Mesh for Bird
Feature Hand knitting, Light weight, high-strength, rustless,
eco-friendly, safety, long service life, ect
Usage plant climbing wall, zoo mesh
Technique Woven
Application Woven Wire Mesh
Hole shape Square
Surface treatment process polishing
Length Requirement
Material Stainless Steel Wire
Weave Style Plain Weave/Twill weave
Color Silver, Black, etc

Product feature

High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.

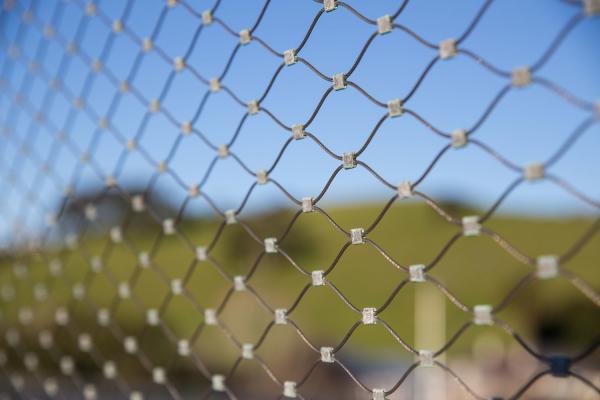

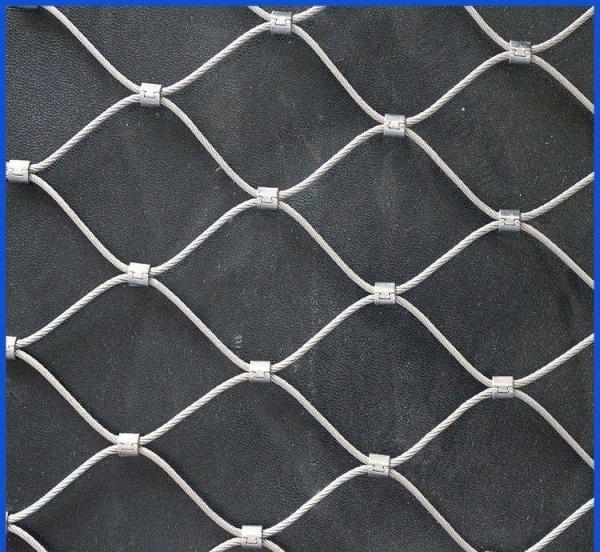

Photo Show

Custom Made 304 Silver Stainless Steel Zoo Mesh For Animals Leopard Protection

Custom Made 304 Silver Stainless Steel Zoo Mesh For Animals Leopard Protection

Custom Made 304 Silver Stainless Steel Zoo Mesh For Animals Leopard Protection
