Stainless Steel Diamond Woven Wire Mesh Panels Good Fire Prevention Properties
Stainless Steel Diamond Woven Wire Mesh Panels Good Fire Prevention Properties
Stainless Steel Diamond Woven Wire Mesh Panels Good Fire Prevention Properties
Stainless Steel Diamond Woven Wire Mesh Panels Good Fire Prevention Properties
Specifications
Brand Name :
wanchi
Model Number :
WM-002
Certification :
SGS ISO9001
Place of Origin :
Hebei
MOQ :
50 square meter
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500+square meter+per week
Delivery Time :
5-8 work days
Packaging Details :
PP film inside and wooden case outside
Material :
Stainless steel wire 304 or 316
Rope Construction :
7x7 7x19
Rope Diameter :
1.2mm-3.2mm
Aperture :
20mm-200mm
Mesh Type :
Knotted
Mesh Size :
Custom-made
Description

Stainless Steel Handwoven Mesh Diamend Woven Type Cable Wire Mesh

Product Description

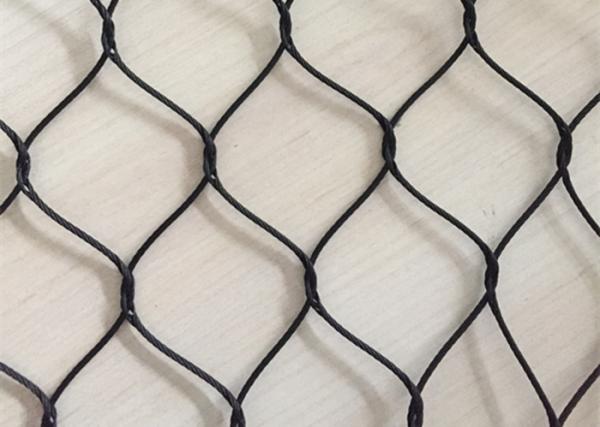

Flexible stainless steel cable mesh (Inter-woven type)

Our Flexible stainless steel cable mesh products are supplied in two main series: Inter-woven and Ferrule Type. Inter-woven

mesh are hand-woven which was also called hand-woven mesh is made from fine s.s.wire rope .The rope construction is 7 x 7 or

7 x 19 and made from AISI 304 or AISI 316 material group.This mesh has strong tensile strength , high flexibility,high transparence

and wide span.The flexible s.s. cable mesh has unreplacable advantages compared with other mesh products in many aspects like

practicability, security, aesthetic property and durability etc. Its more and more appreciated by garden designers and architect all over the world.

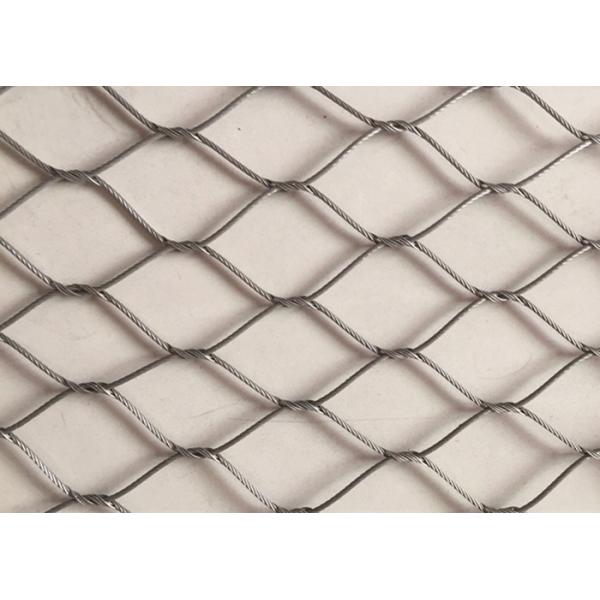

Stainless Steel Diamond Woven Wire Mesh Panels Good Fire Prevention Properties

The specification of stainless steel knotted rope mesh

Code Rope Construction Rope Diameter Opening Size Breaking Force
Inch mm Inch mm KN
WC-01 7 × 19 1/8 3.2 4.7" × 4.7" 120 × 120 7.38
WC-02 7 × 19 1/8 3.2 4" × 4" 102 × 102 7.38
WC-03 7 × 19 1/8 3.2 3.6" × 3.6" 90 × 90 7.38
WC-04 7 × 19 1/8 3.2 3" × 3" 76 × 76 7.38
WC-05 7 × 19 1/8 3.2 2" × 2" 51 × 51 7.38
WC-06 7 × 7 3/32 2.4 4" × 4" 102 × 102 4.18
WC-07 7 × 7 3/32 2.4 3.6" × 3.6" 90 × 90 4.18
WC-08 7 × 7 3/32 2.4 3" × 3" 76 × 76 4.18
WC-09 7 × 7 3/32 2.4 2.4" × 2.4" 60 × 60 4.18
WC-10 7 × 7 3/32 2.4 2" × 2" 51 × 51 4.18
WC-11 7 × 7 5/64 2 3" × 3" 76 × 76 3.17
WC-12 7 × 7 5/64 2 2.4" × 2.4" 60 × 60 3.17
WC-13 7 × 7 5/64 2 2" × 2" 51 × 51 3.17
WC-14 7 × 7 5/64 2 1.5" × 1.5" 38 × 38 3.17
WC-15 7 × 7 1/16 1.6 3" × 3" 76 × 76 2.17
WC-16 7 × 7 1/16 1.6 2" × 2" 51 × 51 2.17
WC-17 7 × 7 1/16 1.6 1.5" × 1.5" 38 × 38 2.17
WC-18 7 × 7 1/16 1.6 1.2" × 1.2" 30 × 30 2.17
WC-19 7 × 7 1/16 1.6 1" × 1" 25 × 25 2.17
WC-20 7 × 7 3/64 1.2 2" × 2" 51 × 51 1.22
WC-21 7 × 7 3/64 1.2 1.5" × 1.5" 38 × 38 1.22
WC-22 7 × 7 3/64 1.2 1.2" × 1.2" 30 × 30 1.22
WC-23 7 × 7 3/64 1.2 1" × 1" 25 × 25 1.22
WC-24 7 × 7 3/64 1.2 0.8" × 0.8" 20 × 20 1.22

The application of stainless steel rope mesh

1. Green Facade - Cable System for Most Climbing Plants

2. Aviary Netting - Lightweight, Durable and Long Lasting

3. Cable Zoo Mesh - Solution to Enclosing Most Animals

4. Helipad Safety Net - Modular Heliport Webbing

5. Safety Net - Structural Measure to Prevent Suicide

6. Cable Mesh - Excellent Solution to Safety

7. Steel Mesh Balustrade - bridge, stair, balcony, path
