4 Inch Sanitary Tri Clamp Fittings Aseptic Clamp Pipe Coupling SMS3017
4 Inch Sanitary Tri Clamp Fittings Aseptic Clamp Pipe Coupling SMS3017
4 Inch Sanitary Tri Clamp Fittings Aseptic Clamp Pipe Coupling SMS3017
4 Inch Sanitary Tri Clamp Fittings Aseptic Clamp Pipe Coupling SMS3017
4 Inch Sanitary Tri Clamp Fittings Aseptic Clamp Pipe Coupling SMS3017
4 Inch Sanitary Tri Clamp Fittings Aseptic Clamp Pipe Coupling SMS3017
4 Inch Sanitary Tri Clamp Fittings Aseptic Clamp Pipe Coupling SMS3017
4 Inch Sanitary Tri Clamp Fittings Aseptic Clamp Pipe Coupling SMS3017
Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Material :
316L Austenitic Stainless Steel
Size :
25 ~ 101.6mm, 1" ~ 4"
Surface Roughness :
Ra<1μm, Enhanced Surface Finish On Request
Hygien Class :
Aseptic Grade, Accessible For CIP
Compoments :
Clamp Liner / Ferrule, Gasket, Clamp
Application :
Connected To Hygienic Pipes By Weld
Description

SMS3017 Sanitary Tri Clamp Fittings Aseptic Clamp Pipe Coupling 1"-4"

Quick Details:

  • Consists of clamp liners, clamp, gasket
  • Clamp liners are attached to pipe ends by welding
  • Used to join tubes together
  • Strong alibility of anti-corrosion, can bear extreme thermo
  • Surface finished by advanced polishing machines.
  • Easy to detach and assemble, free operation and low flow resistance
  • Custom-made products accepted

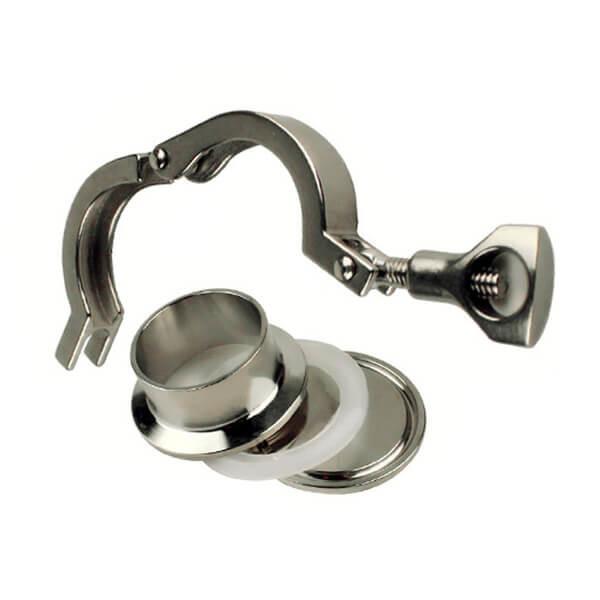

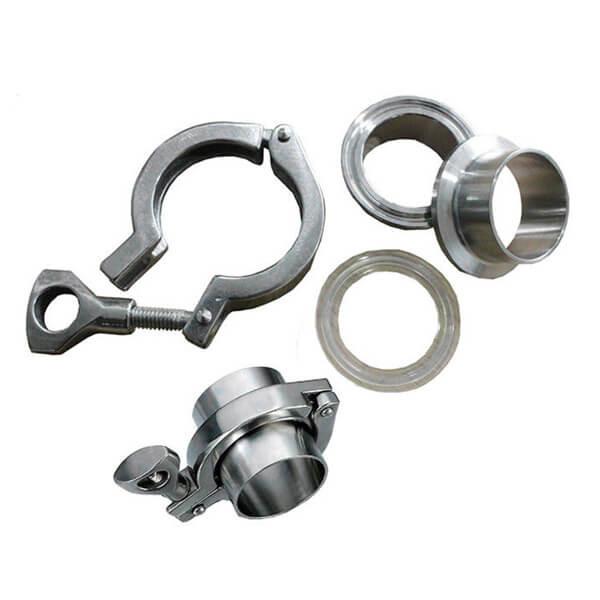

Configuration:

  1. 2 pcs of clamp liner, also can be clamp blank / end cap
  2. Gasket with hardness 75IRHD to 85IRHD
  3. Clamp: high pressure type, heavy duty type, single/double/tripple pin type

Two clamp liners connect to each other with seal gasket between them, then are clamped and fixed by a clamp. The other end of clamp liner is connected to tubes.

Technical Specifications:

  • Size: 25 ~ 101.6mm, 1" ~ 4"
  • Tubing dimensions: according to DIN11866 stainless steel tube for food industry
  • Raw Material: 304 or 316L austenitic stainless steel
  • Surface Roughness: Ra<1μm
  • Angle range≤3.5° f=35mm
  • Maximum pipe end gap: 6mm
