DIN 32676 Sanitary Tri Clamp Fittings / Tri Clover Fittings DN10 ~ DN200
DIN 32676 Sanitary Tri Clamp Fittings / Tri Clover Fittings DN10 ~ DN200
DIN 32676 Sanitary Tri Clamp Fittings / Tri Clover Fittings DN10 ~ DN200
DIN 32676 Sanitary Tri Clamp Fittings / Tri Clover Fittings DN10 ~ DN200
DIN 32676 Sanitary Tri Clamp Fittings / Tri Clover Fittings DN10 ~ DN200
DIN 32676 Sanitary Tri Clamp Fittings / Tri Clover Fittings DN10 ~ DN200
DIN 32676 Sanitary Tri Clamp Fittings / Tri Clover Fittings DN10 ~ DN200
DIN 32676 Sanitary Tri Clamp Fittings / Tri Clover Fittings DN10 ~ DN200
Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Material :
304 Or 316L Forged Stainless Steel
Size :
DN10 ~ DN200
For Tubes :
DIN11850 Pipe, ISO2852 Pipe
Surface Roughness :
Ra, Internal < 0.8 μm, Ra, External < 2.5 μm
Compoments :
Clamp, Clamp Ferrule, Clamp Blank, Gasket
Application :
Connected With Hygienic Pipes By Welding In Food And Pharmaceutical Industries
Description

DIN 32676 Sanitary Tri Clamp Fittings Couplings Set For Food Chemical / Pharma Equipments

Product Description:

This Tri clamp connection couplings set is designed and produced according to German standard DIN32676: Stainless steel clamp connection fittings for food, chemical and pharmaceutical industries.

DIN32676 tri clamp coupling fittings are used especially for stainless steel pipes in DIN11850 and ISO2852 standard. Only welding connection to the pipe is regulated in this standard.

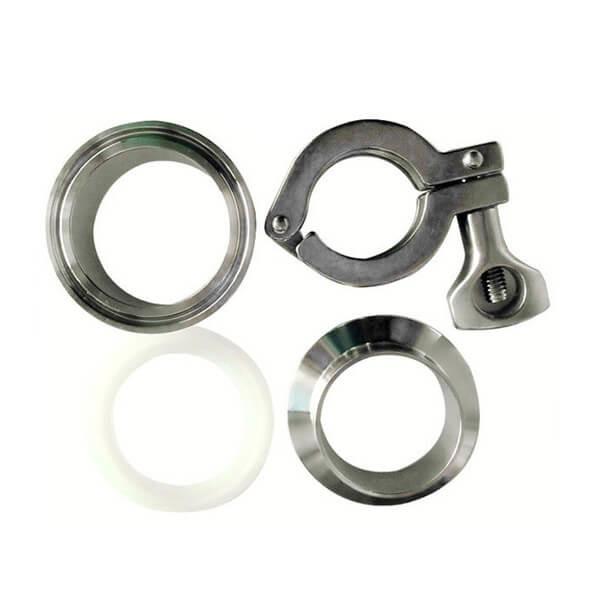

A DIN32676 tri clamp coupling connect set consists of below parts:

  • 2pcs of clamp ferrules (also can be 1pc clamp ferrule, 1pc blank / cap)
  • 1pc of sealing gasket
  • 1pc of clamp

Materials:

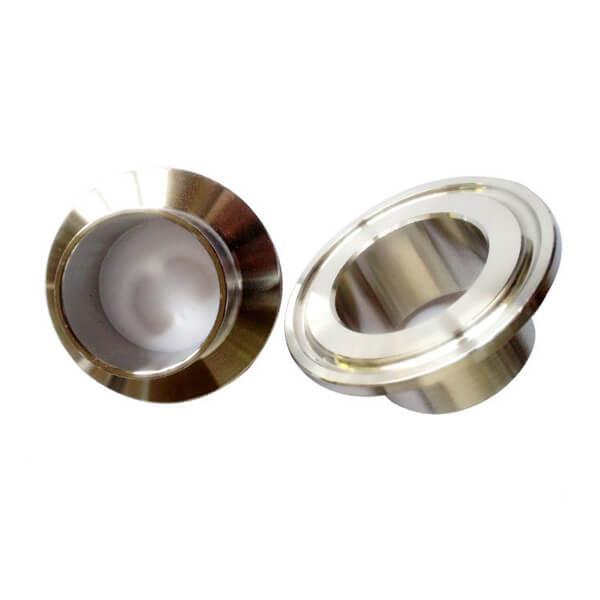

AISI 316L stainless steel. Generally, DIN32676 Tri-Clamp ferrules, blanks and adapters are produced by CNC turning from stainless steel bar, in AISI 316L 1.4404 material. The material conforms typically to ASTM A182 and A276.

As for gasket, customer will have free choice among EPDM, FKM, HNBR, or VMQ

Surface Finish:

The standard internal surface finish for clamp ferrules is less than 0.8μm Ra, external surface finish less than 2.5μm Ra. Enhanced finishes are available on request.

Technical Details:

1. DN10 ~ DN200 for ISO2852 steel pipe

2. Pipe dimensions according to DIN11850 and ISO2852 standard

3. Working pressure should be 16bar for size DN6 ~ 8 ; 10bar for size DN65 ~ 200

4. Working pressure is calculated at temperature 150 degrees centigrade

5. Hardness according to ISO 48 standard required by FDA and BGA: 75 IRHD to 85 IRHD
