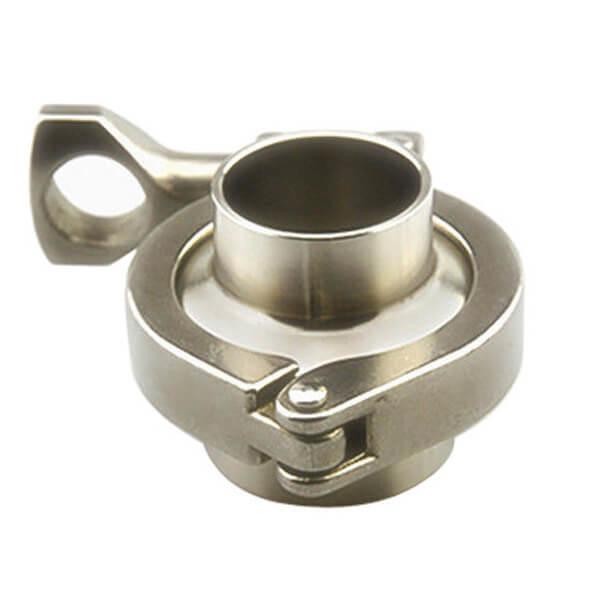

Aseptic Sanitary Tri Clamp Fittings Connection Couplings Set Standard Type
Aseptic Sanitary Tri Clamp Fittings Connection Couplings Set Standard Type
Aseptic Sanitary Tri Clamp Fittings Connection Couplings Set Standard Type
Aseptic Sanitary Tri Clamp Fittings Connection Couplings Set Standard Type
Aseptic Sanitary Tri Clamp Fittings Connection Couplings Set Standard Type
Aseptic Sanitary Tri Clamp Fittings Connection Couplings Set Standard Type
Aseptic Sanitary Tri Clamp Fittings Connection Couplings Set Standard Type
Aseptic Sanitary Tri Clamp Fittings Connection Couplings Set Standard Type
Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Material :
316L Forged Stainless Steel
Size :
DN10 ~ DN150
For Tubes :
DIN11866(series 2), ISO1127 Pipe
Main Type :
Orbital Weld Type, Manual Weld Type
Compoments :
Female Ferrule, Male Ferrule, Gasket, Clamp
Application :
Connected With Hygienic Pipes By Welding In Food And Pharmaceutical Industries
Description

Aseptic Sanitary Tri Clamp Fittings Connection Couplings Set Standard Type

Product Description:

This Tri clamp connection couplings set fully follows the regulation in DIN 11864-3 standard. Material needs to be 316L to meet aseptic requirement of food, chemical and pharmaceutical industries. DIN11864-3 tri clamp coupling fittings are used especially for stainless steel pipes in DIN11866 series B and ISO1127.

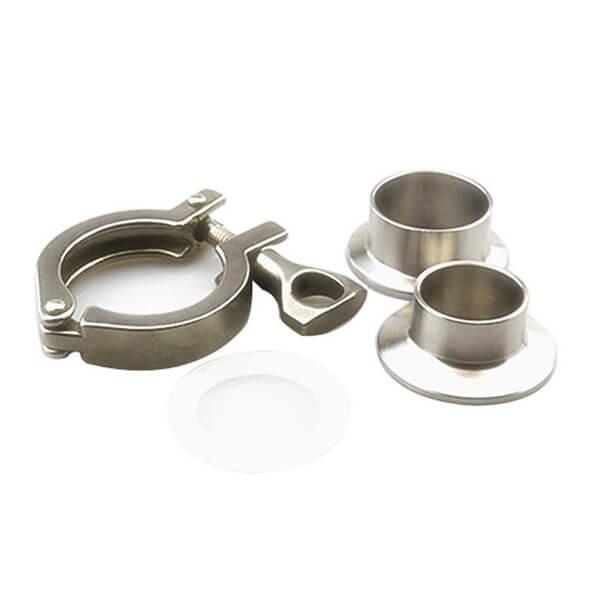

Main Parts:

  1. 2pcs of clamp liner / ferrule, or 1pc clamp liner + 1pc blank / end cap
  2. 1pc of gasket
  3. 1pc clamp: high pressure type, heavy duty type, single/double/tripple pin type
  4. 1pc lock ring: if neccesary

Material:

Clamp and ferrule: must be 1.4435 BN2 (Fe<0.5%) according to EN10088-1, equals to 316L to be highly aseptic

Gasket: EPDM or Rubber

Technical Data:

  • Size: DN10 ~ DN150
  • Tubing dimensions: according to DIN11866 series B and ISO1127
  • Pressure: 1.5 bar

  • Version / Surface quality: Right-angled weld-on ends for orbital-welding

  • Surface roughness: Ra, internal < 0.8 μm, Ra, external < 1.6 μm

  • Pipe-Hygiene Classes: H 3 acc. DIN 11866

  • Option: Electropolishing

  • Torque rating Hexagon-Nut: 5 Nm

  • Pipe-Hygiene Classes: H 3 acc. DIN 11

  • Angle range≤3.5° f=35mm
  • Maximum pipe end gap: 6mm
