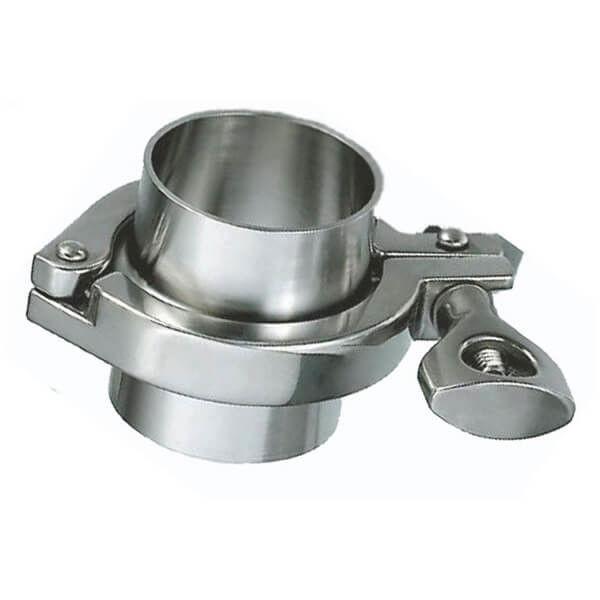

ISO 2852 Sanitary Stainless Steel Tri Clamp Fittings , Pipe Clamp Coupling For Food Industry
ISO 2852 Sanitary Stainless Steel Tri Clamp Fittings , Pipe Clamp Coupling For Food Industry
ISO 2852 Sanitary Stainless Steel Tri Clamp Fittings , Pipe Clamp Coupling For Food Industry
ISO 2852 Sanitary Stainless Steel Tri Clamp Fittings , Pipe Clamp Coupling For Food Industry
ISO 2852 Sanitary Stainless Steel Tri Clamp Fittings , Pipe Clamp Coupling For Food Industry
ISO 2852 Sanitary Stainless Steel Tri Clamp Fittings , Pipe Clamp Coupling For Food Industry
ISO 2852 Sanitary Stainless Steel Tri Clamp Fittings , Pipe Clamp Coupling For Food Industry
ISO 2852 Sanitary Stainless Steel Tri Clamp Fittings , Pipe Clamp Coupling For Food Industry
Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Material :
304 & 316L Austenitic Stainless Steel
Size :
25 ~ 219.1mm Expand Type, 12 ~ 76.1mm Weld Type
Surface Roughness :
Ra<1μm
Main Type :
Weld Type, Expand Type
Compoments :
Clamp Liner / Ferrule, Gasket, Clamp
Application :
Connected With Hygienic Pipes By Welding Or Expanded Way In Food Industries
Description

ISO 2852 Sanitary Stainless Steel Tri Clamp Fittings , Clamp Pipe Couplings For Food Industry

Quick Details:

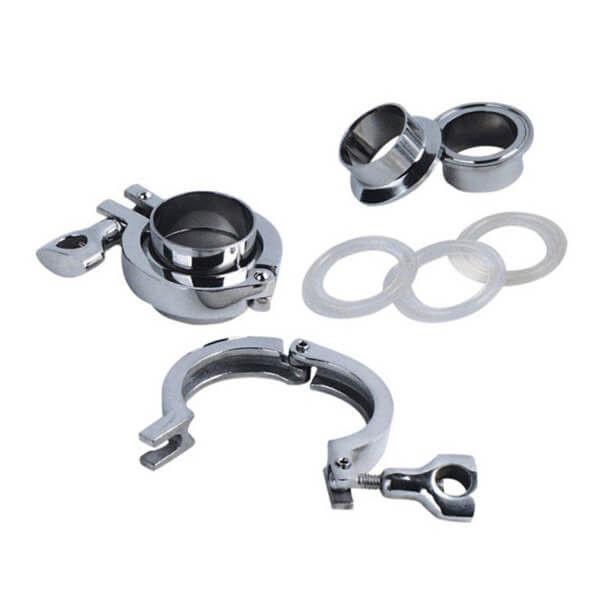

  • Consists of clamp liners, clamp, gasket
  • Clamp liners are attached to pipe ends by welding or expanding way
  • Used to connect pipelines in food industry
  • Easy to install and remove, more convenient than welding connection
  • Excellent quality gasket to prvoide high sealing performance
  • Clamp has high pressure to hold pipe lines firmly
  • Dimensions, material, and other parameters strictly follow ISO2852 standard

Main Parts:

  1. Clamp liner: welded type and expanded type
  2. Gasket: standard type and moulded type expecially for frequent pipe disconnection
  3. Clamp: high pressure type, heavy duty type, single/double/tripple pin type
  4. Lock ring: only needed for expanded type of clamp coulpling

Technical Specifications:

  • Size: 25 ~ 219.1mm expand type, 12 ~ 76.1mm weld type
  • Tubing dimensions: according to ISO2037 stainless steel tube for food industry
  • Raw Material: 304 or 316L austenitic stainless steel
  • Surface Roughness: Ra<1μm
  • Angle range≤3.5° f=35mm
