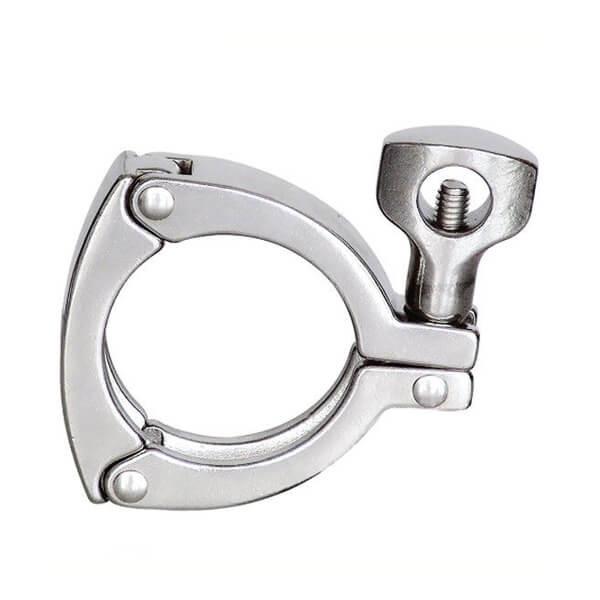

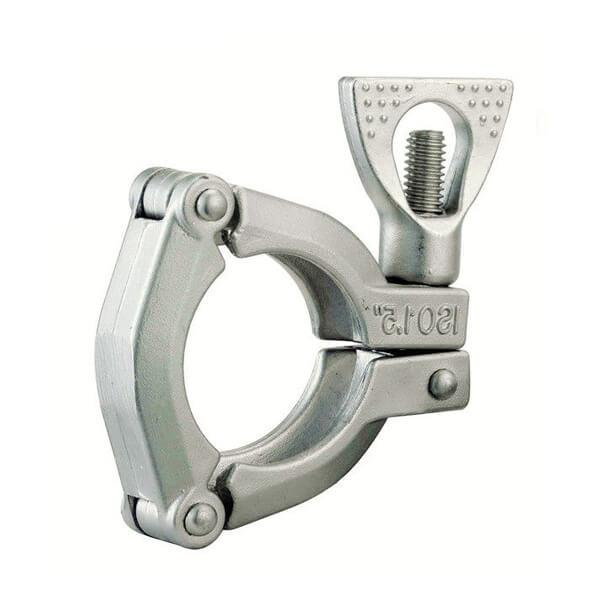

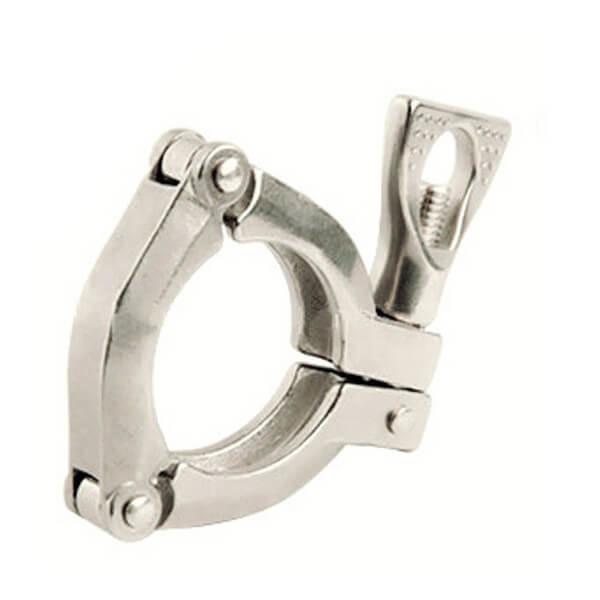

Safety Sanitary Tri Clamp Fittings Three Pieces Connectors Tri Clamp With Triple Leak Proof
Safety Sanitary Tri Clamp Fittings Three Pieces Connectors Tri Clamp With Triple Leak Proof
Safety Sanitary Tri Clamp Fittings Three Pieces Connectors Tri Clamp With Triple Leak Proof
Safety Sanitary Tri Clamp Fittings Three Pieces Connectors Tri Clamp With Triple Leak Proof
Safety Sanitary Tri Clamp Fittings Three Pieces Connectors Tri Clamp With Triple Leak Proof
Safety Sanitary Tri Clamp Fittings Three Pieces Connectors Tri Clamp With Triple Leak Proof
Safety Sanitary Tri Clamp Fittings Three Pieces Connectors Tri Clamp With Triple Leak Proof
Safety Sanitary Tri Clamp Fittings Three Pieces Connectors Tri Clamp With Triple Leak Proof
Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Material :
304 Austenitic Stainless Steel
Size :
1/2" ~ 12"
Surface Roughness :
Ra<0.8μm, Enhanced Surface Finish On Request
Hygien Class :
Hygienic Grade For CIP
Type :
Three Pieces Detachable Type
Application :
Clamp The Liners To Join Pipes Together
Description

High Safety Sanitary Tri Clamp Fittings Three Pieces Detachable Clamps With Triple Leak Proof

Characteristics and Advantages:

  • Steel straps are detachable, which make maintenance much more convenience
  • The unique gasket seal design ensures triple leak-proof, the higher pressure inside the pipe is, the better sealing effect will be
  • Clamps, gaskets and pipe end grooves are wholly pressed, with large tensile strength on the pipe end
  • Sealing gasket with good vibration isolation
  • Economic and safe, compared with flange connection save about 20% of the cost

Technical Specifications:

  • Size: 1" ~ 12", DN25 ~ DN200, other size can be tailored
  • Tensile strength at groove: Upto 4.2 Mpa
  • Raw Material: 304 austenitic stainless steel
  • Standard: ISO, DIN, SMS, 3A, ASME BPE
  • Surfac treatment: Inner surface Ra<0.4~0.8μm; Outer surface mirro polished Ra < 0.8μm
  • Application: stainless steel pipeline connection in food, beverage and pharmacy industries
Product tags

sanitary tri clamp fittings

,

tri clamp sanitary fittings

,

sanitary clamp fittings
