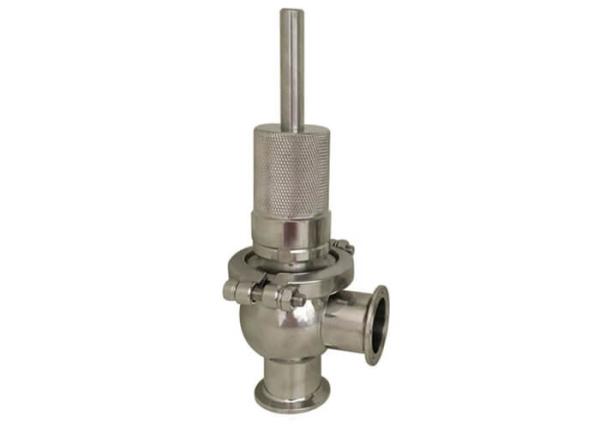

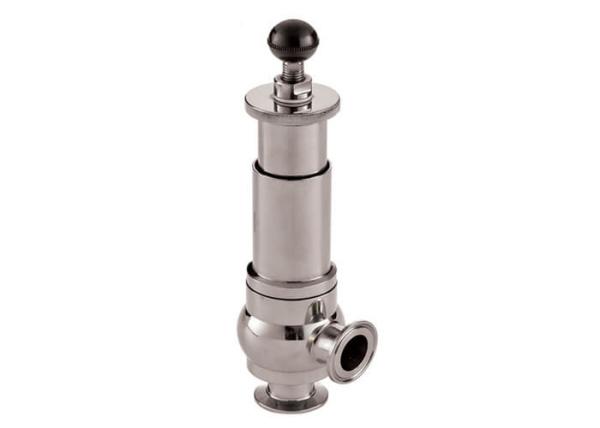

Diary Food Grade High Pressure Safety Relief Valve One Way Flow Direction
Diary Food Grade High Pressure Safety Relief Valve One Way Flow Direction
Diary Food Grade High Pressure Safety Relief Valve One Way Flow Direction
Diary Food Grade High Pressure Safety Relief Valve One Way Flow Direction
Diary Food Grade High Pressure Safety Relief Valve One Way Flow Direction
Diary Food Grade High Pressure Safety Relief Valve One Way Flow Direction
Diary Food Grade High Pressure Safety Relief Valve One Way Flow Direction
Diary Food Grade High Pressure Safety Relief Valve One Way Flow Direction
Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Driven Mode :
Compressed Air
Flow Direction :
One Way
Structure Design :
Spring Return, Slight Opening
Connection End :
Union Connection
Medium :
Food, Beverage, Wine, Beer, Diary, Pharmacy, Water
Material :
304 Or 316L Stainless Steel
Description

Diary Food Grade Anitary Pressure Relief Valve Safety One Way Flow Direction

Quick Details:

  • Automatically opening and closing type
  • Free pressure regulation among safety range
  • Stainless steel material against acid corrosion
  • One way flow type, reversing installation forbidden
  • FDA compliant EPDM sealing material

Valve Selection:

  • Valve Body: 304, or 316L stainless steel
  • Gasket Material: EPDM, NBR, FPM
  • Pressure Range: Free calibration by adjusting spring
  • Manual Handle: Optional for partially opening when necessary
  • Butt Weld Connection Standard: DIN11850, DIN11866, EN10367, ISO1127, ISO2037

Application:

Sanitary stainless steel safety valve, also called pressure relief valve, is widely used to protect pipe lines and pump from break down by over pressure in food, beverage, pharmacy, brewery, wine, diary industries.

Working Principle:

  • Set the valve pressure at a specific value
  • Valve is normally closed by outside force
  • When pipeline pressure exceeds the set value, the valve will open automatically
  • Medium is discharged through safety valve
  • Pipeline pressure reduces and returns to safety value
  • Valve closes by itself until next cycle of excessive pressure

Specification:

  • Size: DN25 - DN80, 1" - 3"
  • Calibration pressure range: 0 - 6 bar
  • Surface treatment: Inside MP Ra<0.8 μm; Outside matt processed
  • Max. temperature: 121℃
  • Sealing material: EPDM
  • Medium: Liquid, gas
  • Butt weld end dimension: according to DIN, SMS, 3A, ISO, BS
