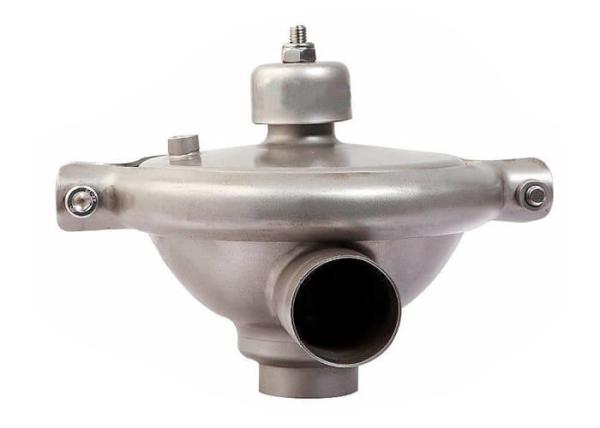

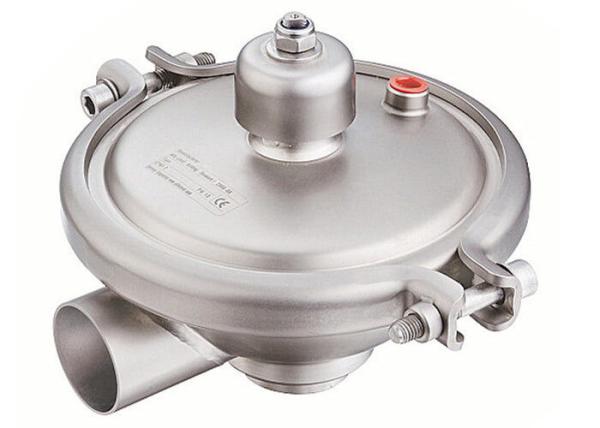

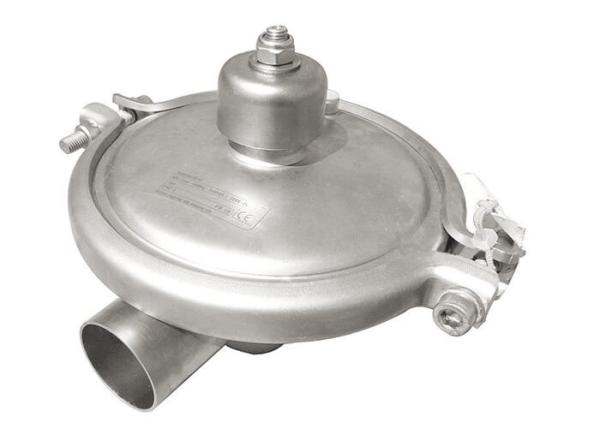

Constant Pressure Regulating Safety Valve And Relief Valve With Butt Weld End DN15-DN100
Constant Pressure Regulating Safety Valve And Relief Valve With Butt Weld End DN15-DN100
Constant Pressure Regulating Safety Valve And Relief Valve With Butt Weld End DN15-DN100
Constant Pressure Regulating Safety Valve And Relief Valve With Butt Weld End DN15-DN100
Constant Pressure Regulating Safety Valve And Relief Valve With Butt Weld End DN15-DN100
Constant Pressure Regulating Safety Valve And Relief Valve With Butt Weld End DN15-DN100
Constant Pressure Regulating Safety Valve And Relief Valve With Butt Weld End DN15-DN100
Constant Pressure Regulating Safety Valve And Relief Valve With Butt Weld End DN15-DN100
Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Driven Mode :
Compressed Air
Size :
DN15 ~ DN100
Valve Opening Type :
Slight Opening
Connection End :
Butt Weld
Flow Direction :
One Way
Material :
304 Or 316L Stainless Steel
Description

Constant Pressure Regulating Sanitary Pressure Relief Valve With Butt Weld End DN15-DN100

Quick Details

  • Vavle body and disc are made of best 316L or 304 stainless steel
  • Outside surface is treated by sandblasting
  • The diaphragm material can be EPDM or PTFE, high temperature standable upto 140 degrees
  • Butt weld connection end offers simple and fast installation, strong and no leakage
  • Very popular to regulate medium pressure in the pipeline or tank at a set pressure value
  • Valve cover and seat are fixed by tri clamp

Working Principle

  • The valve is normally closed when the medium pressure is within set value
  • When medium pressure increases, the diaphragm is pushed upwards
  • Valve stem moves upwards accordingly
  • Medium then flows out of the valve, make the pipeline pressure reduces
  • The diaphragm is pushed back by the air pressure in upper chamber
  • The diaphragm keeps moving downwards until the valve is closed

Specifications

  • Size: DN15 ~ DN100
  • Connection End: Butt weld
  • Valve Closing Pressure: 10 bar
  • Valve Opening Pressure: 5 bar
  • Working Pressure: 0 ~ 10 bar
  • Working Temperature: -10 ~ 140°C
  • Air Supply Pressure: 0 ~ 6 bar
  • Kv in Completely Open condition: 23M3/h
  • Kv in Low Flow Condition: 2M3/h
  • Kv for CIP: 15M3/h
