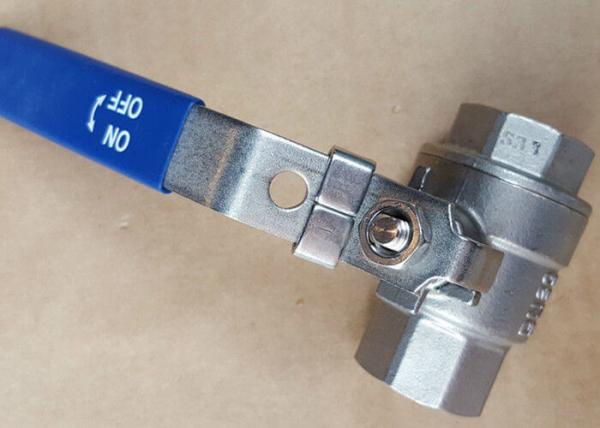

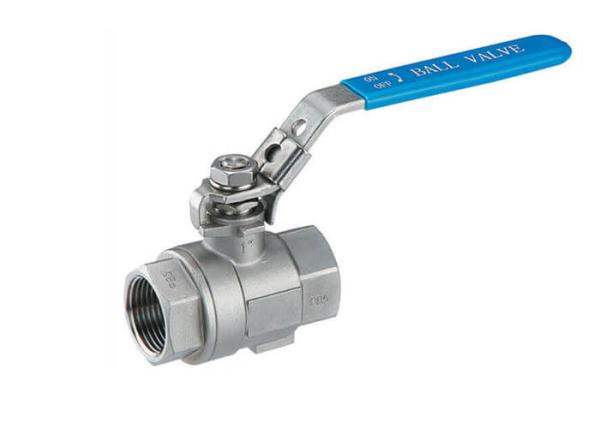

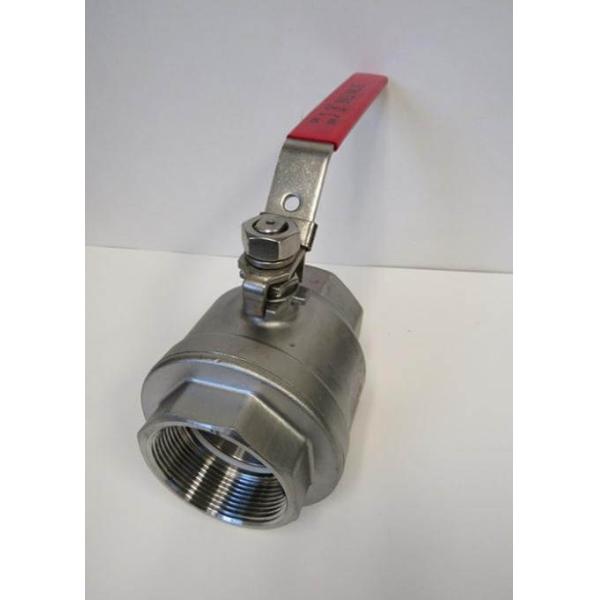

Industrial Threaded End Ball Valve Manual Operation Special Design 1'' - 4''
Industrial Threaded End Ball Valve Manual Operation Special Design 1'' - 4''
Industrial Threaded End Ball Valve Manual Operation Special Design 1'' - 4''
Industrial Threaded End Ball Valve Manual Operation Special Design 1'' - 4''
Industrial Threaded End Ball Valve Manual Operation Special Design 1'' - 4''
Industrial Threaded End Ball Valve Manual Operation Special Design 1'' - 4''
Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Specifications :
3A ASME BPE
Connection :
Threaded
Type :
Sanitary Ball Valves
Materials :
AISI 316L Stainless Steel
Size :
1'' - 4''
Application :
Industrial Usage, Water Industrial Usage, Household Usage
Description

Special Design Sanitary Ball Valves Manual Operation , Threaded Connection Type

According to ASME BPE-2009

Valve line includes, ball, butterfly, check, seat, long stroke, mix proof, PMO, diaphragm and sampling. All valves can be supplied with a variety of actuation and control packages.

Sanitary pump line includes both centrifugal and positive displacement pumps.

Stainless Steel Sanitary Tubing and Tube Fittings Highlights:

Valve line includes, ball, butterfly, check, seat, long stroke, mix proof, PMO, diaphragm and sampling. All valves can be supplied with a variety of actuation and control packages.

Sanitary pump line includes both centrifugal and positive displacement pumps.

Alloy: T304 or T316L


Sizes: 1.50", 2.00", 3.00" OD


Seats: EPDM or Silicone


Finish: Polish to a 32 Ra ID/OD


Handle Interchanges to either side


Field Serviceable


100% Hydraulic Pressure Tested


Economical Price for all sizes from 1.5" -- 4"

Steel material Product wetted steel parts

AISI 304 or 316L

 Provided with material inspection report
Other steel parts AISI 304
Seal material Standard Teflon (PTFE) All seal materials comply with FDA 21CFR117.2600
Options N/A
Pressure Working pressure ≤145psi (10bar)
Supply pressure for air actuator 70 ~ 116psi (5 ~ 8bar)
Temperature Working temperature -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.
Surface treatment Inside surface treatment Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment Ra 32 ~ 64µin (0.8 ~ 1.6µm)
Connection End connections can be butt-welded, sanitary clamp, male and female threaded, flanged, I-line or others upon request.

Size :


Usually 1" - 4", any size is demandable


Fitting ends :


BS, DIN, SMS, A270, Weld ends, Male ends and Clamp ends


Working pressure :


* -0.9 to 10 Bar for cast body


* -0.9 to 20 Bar for forged body


Working temperature :


-10oC up to 150oC

Features:

The valve is lead free and Sanitary, it can be used for drinking water, the pharmaceutical and food industries. Stainless steel sanitary 3-way ball valves are used in a wide variety of high-pressure applications. A full, unrestricted flow allows no product restrictions through the valve, allowing easy diversion. We offer three way ball valves made of T316L stainless steel with PTFE seats that are easily removed. Clamp and weld ends are standard. Other connections are available upon request. Ball valves meet 3A requirements. L-Port is standard, but T-Port is available upon request.

Sterilization temperature reached 150℃


Valve material:SUS 304 Stainless Steel

Port size: 2"

Sealing material: Polytetrafluoroethene

Connection: Clamp

Surface finish: ＜0.4μm

Work Pressure: 0 — 1.6MPa / 232psi

Applicable Temperture: -10℃ ~ +135℃

Applicable Medium:Water, Oil

Operation:Manual

Product certification:ISO, DAS CERTIFICATION

Technical Details:

OUTSIDE DIAMETER (MM) WALL- THICKNESS (MM) NOMINAL OUTSIDE DIAMETER NOMINAL WALL THICKNESS DIMENSIONAL STANDARD
6,35 0,89 1/4" 0,035" ASME BPE
9,53 0,89 3/8" 0,035" ASME BPE
12,70 1,65 1/2" 0,065" ASME BPE
19,05 1,65 3/4" 0,065" ASME BPE
25,40 1,65 1" 0,065" ASME BPE
38,10 1,65 1 1/2" 0,065" ASME BPE
50,80 1,65 2" 0,065" ASME BPE
63,50 1,65 2 1/2" 0,065" ASME BPE
76,20 1,65 3" 0,065" ASME BPE
101,60 2,11 4" 0,083" ASME BPE
152,40 2,77 6" 0,109" ASME BPE

Industrial Threaded End Ball Valve Manual Operation Special Design 1'' - 4''
