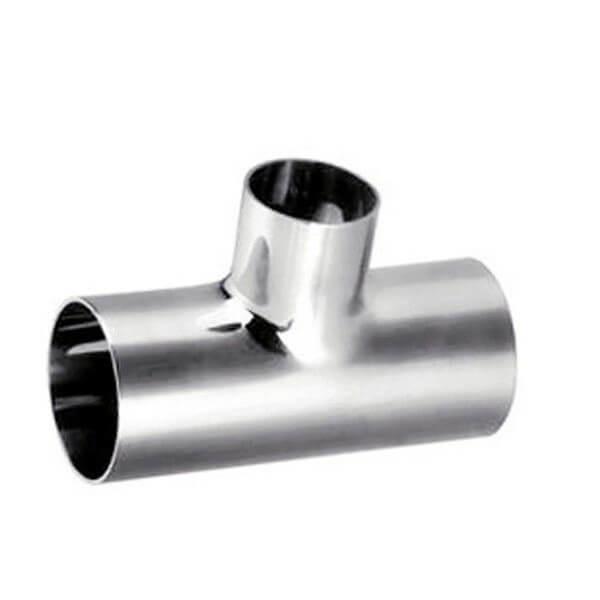

Straight Reducing Tee Sanitary Pipe Fittings And Valves ASME BPE Standard
Straight Reducing Tee Sanitary Pipe Fittings And Valves ASME BPE Standard
Straight Reducing Tee Sanitary Pipe Fittings And Valves ASME BPE Standard
Straight Reducing Tee Sanitary Pipe Fittings And Valves ASME BPE Standard
Straight Reducing Tee Sanitary Pipe Fittings And Valves ASME BPE Standard
Straight Reducing Tee Sanitary Pipe Fittings And Valves ASME BPE Standard
Straight Reducing Tee Sanitary Pipe Fittings And Valves ASME BPE Standard
Straight Reducing Tee Sanitary Pipe Fittings And Valves ASME BPE Standard
Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Raw Material :
316L Stainless Steel
Dimensions According To :
ASME BPE
Connection End :
Butt Weld
Size :
1/4" ~ 6"
Main Type :
Straight Type, Short Type
Applications :
Connection Between Pipe Lines For Pharmaceutical And Biotechnology Industries
Description

Safety Sanitary Butt Weld Fittings Straight Reducing Tee Fitting 1/4" ~ 6" ASME BPE Standard

Product Description:

ASME BPE Butt weld tee fittings are designed especifically for pharmaceutical and biotechnology industries. These industries have very high requirements of hygiene, so we only use material of 316L stainless steel. The tees have butt weld ends, and can very simply welded to stainless steel pipes, in order to help change fluid flow direction. The branch port can be in same size as main port, and also can be smaller.

Features:

  • 100% waterproof
  • High mechanical resistance
  • Effective corrosion protection of the tube
  • Resistant against chemical mediums
  • Trace mark available
  • Very easy welding installation
  • Save installation cost and time

Technical Details:

  • Name: Sanitary Butt Weld Tees
  • Material: 304 or 316L stainless steel
  • Size: Long type 1/2" ~ 6"; Short type 1" ~ 4"
  • Standards: 3A
  • Main types: Concentric tee, Long / short concentric tee, short eccentric tee, 180 degree tee
  • Working pressure: 10 bar
  • Working temperature: -10 °C ~ +140 °C
  • Surface treatment: Food grade Ra<0.8μm; pharmaceutical grade Ra<0.4μm
