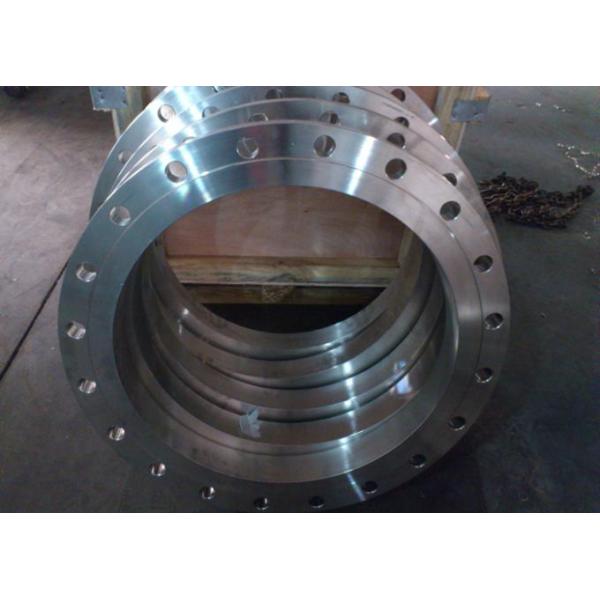

316L Class 150LB Stainless Steel Flange Duplex Steel Blind Flanges
316L Class 150LB Stainless Steel Flange Duplex Steel Blind Flanges
316L Class 150LB Stainless Steel Flange Duplex Steel Blind Flanges
316L Class 150LB Stainless Steel Flange Duplex Steel Blind Flanges
Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Material :
304, 304L, 316, 316L, 316Ti, 317L, Etc.
Process :
Forged/ Casting
Standard :
ANSI B16.5, DIN, JIS Etc.
Size :
3/8” To 72”
Application :
Offshore,Food
Working Pressure :
Up To 3000lbs
Description

F304L / 316L Class 150LB Stainless Steel Pipe Flange Duplex Steel Blind Flanges

Kaysuns provides stainless steel blind flange with every pressure rates from PN10 to PN200, the materials include stainless steel ,alloy steel, nickel based alloy, titanium alloy etc. All of our flanges can be supplied upon EN10204 3.1 /EN10204 3.2 etc.

Stainless Steel Blind Flanges Meterial Grade:


201, 202, 301, 304, 304L, 310S, 316, 316L,316Ti, 317, 317L, 321, 347,904L Duplex Stainless Steel, S31803/2205, S32750/2507 ,S32760, S32304/2304, MONEL400,INCONEL600, INCOLOY800, ALLOY20, ALLOY28, NICKEL ALLOY.

Stainless Steel Blind Flanges Features

One of the features of the stainless steel bl ind flange is to block the end of the pipe, and the other is to have the ability to easily remove the debris from the pipe during maintenance. In the case of plugging, with the head and cap have the same effect. But the head is no way to disassemble, and the flange blind plate is fixed with bolts, it is easy to disassemble. Flange blind plate material is alloy steel, stainless steel, plastic and so on.

Application:

  • Offshore
  • Chemical Engineering
  • Onshore Oil&Gas
  • Paper Plants
  • Fertilizer
  • Environment Engineering
  • Power Project
  • Mining
  • Shipyard
  • Mechanical Manufacture
  • Food & Pharmacy

Rate: Class 150LBS
Standards: ANSI B16.5 , ANSI B 16.47
Dimension: 3/8” to 72” (DN10 ~DN1800)
Material:
Stainless Steel: ASTM A/SA182 F304, F304L,F316, F316L, 316Ti, F317L, F321,F321H, F310H, F347H, N08904, F44 etc. (W1.4301, 1.4306, 1.4948, 1.4401, 1.4404, 1.4571, 1.4438, 1.4541, 1.4878, 1.4550, 1.4845, 1.4539, 1.4547 etc.).

Duplex&Super Duplex: ASTM A/SA182 F51, F53, F55, F59, F60(w1.4462, 1.4410, 1.4501, 1.4507 etc.)

Nickel Alloy:
ASTM B564 N10276, N04400,N06600,N06601,N06625,N08800, N08020 (w2.4819,2.4360,2.4361,2.4816,2.4851,2.4856,1.4876,1.4958 )etc.

Other Alloys:
ASTM A105,A105N; St37.2, C22.8;
ASTM A182 F11, F12, F22, F5, F91;
ASTM A350 LF2, LF3;
ASTM A694 F42, F46, F48, F50, F52, F56,F60,F65,F70 etc.
Tolerances: According to specifications, customized fabrication is available
