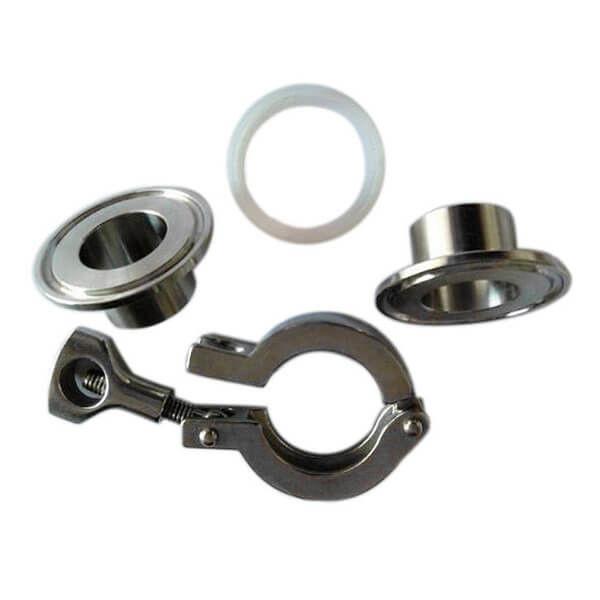

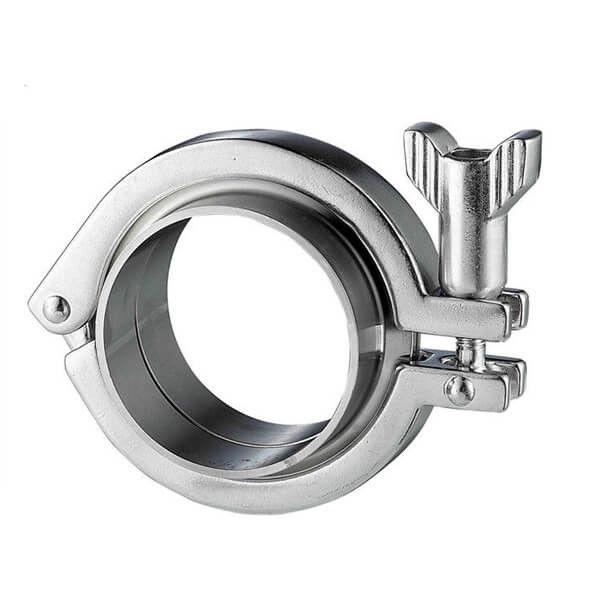

Adjustable Heavy Duty Sanitary Tri Clamp Fittings 2-6 Bar Pressure
Adjustable Heavy Duty Sanitary Tri Clamp Fittings 2-6 Bar Pressure
Adjustable Heavy Duty Sanitary Tri Clamp Fittings 2-6 Bar Pressure
Adjustable Heavy Duty Sanitary Tri Clamp Fittings 2-6 Bar Pressure
Adjustable Heavy Duty Sanitary Tri Clamp Fittings 2-6 Bar Pressure
Adjustable Heavy Duty Sanitary Tri Clamp Fittings 2-6 Bar Pressure
Adjustable Heavy Duty Sanitary Tri Clamp Fittings 2-6 Bar Pressure
Adjustable Heavy Duty Sanitary Tri Clamp Fittings 2-6 Bar Pressure
Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Material :
304 & 316L Stainless Steel, EPDM For Seal
Size :
DN10 ~ DN200
Pressure :
2 ~ 6bar
Dimension According To :
ISO2852, DIN11853, DIN11864, DIN32676, BS4825, SMS3017
Surface Treatment :
MP, EP
Applications :
Especially For Heavy Duty Clamping In Piping Systems Of Hygienic Industries
Description

Adjustable Heavy Duty Clamps Stainless Steel Hygienic Fittings 2-6bar Pressure

Features:

  • The heavy duty sanitary clamp has strong structure to provide support for piping systems
  • Can hold pipe connections much more firmly than common light duty clampls
  • Long warranty period upto 18 months
  • Simple configuration with good looking appearance
  • Low flow resistance, safe and reliable

Materials:

  • 316L stainless steel at medium contact part to meet hygienic requirement
  • 304 stainless steel at other part of clamp connections
  • FDA compliant EPDM for seal

Dimension Standards:

  • ISO 2852: Stainless steel clamp pipe coulpings for food industry
  • BS 4825 PART 3: Specification for clamp type couplings
  • DIN 11853-3: Hygienic clamp connections, short type for food industry
  • DIN 11864-3: Aseptic tri-clamp connection, standard type
  • DIN 31676: Fittings for food, chemical and pharmaceutical industries-Clamp connections
  • SMS 3017: Tri-Clamp couplings
  • ASME BPE: ASME Bioprocessing Equipment

Specifications:

  • Material: SS304 SS316L
  • Pipe diameter: DN10 ~ DN300 (DIN), 1/2" ~ 10" (3A / IDF), Ф12.7-Ф152.4 (ISO)
  • Working pressure: 2 ~ 6 Bar
  • Working temperature: -10~120℃
  • Standard: 3A,DIN,IDF/ISO,SMS etc.
  • Surface process: Mirror polish, matt polish, electro polish, 240 girt, 400 grit, etc.
