Long Weld Neck Stainless Steel Plate Flange Class 150LBS ~ 3000LBS Rate
Long Weld Neck Stainless Steel Plate Flange Class 150LBS ~ 3000LBS Rate
Long Weld Neck Stainless Steel Plate Flange Class 150LBS ~ 3000LBS Rate
Long Weld Neck Stainless Steel Plate Flange Class 150LBS ~ 3000LBS Rate
Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Material :
304, 304L, 316, 316L, 316Ti, 317L, 321, 321H, 347, 347H, 310S, 310H, 904L, 254SMO
Process :
Forged
Rate :
Class 150LBS ~ 3000LBS
Standard :
ASME/ANSI B16.5-1996 / B16.47-1996
Size :
3/8” To 72”
Working Pressure :
150 - 3000lbs
Description

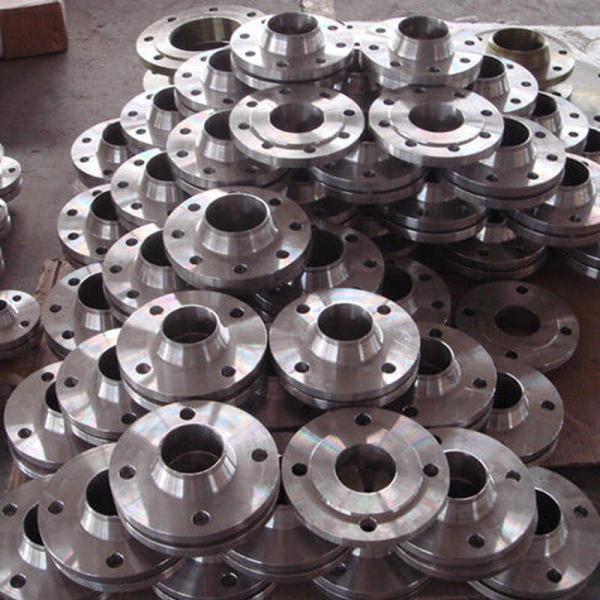

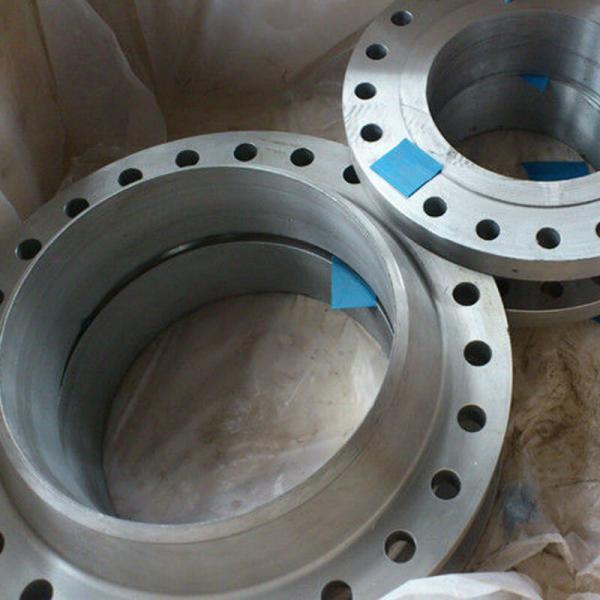

Long Weld Neck Stainless Steel Pipe Flange Plate Class 150LBS ~ 3000LBS Rate

Rate:

Class 150LBS ~ 3000LBS

Dimension:

3/8” to 72” (DN10 ~DN1800)

Material:

▶Stainless Steel: ASTM A/SA182 F304, F304L,F316, F316L, 316Ti, F317L, F321,F321H, F310H, F347H, N08904, F44 etc. (W1.4301, 1.4306, 1.4948, 1.4401, 1.4404, 1.4571, 1.4438, 1.4541, 1.4878, 1.4550, 1.4845, 1.4539, 1.4547 etc.).
▶Duplex&Super Duplex: ASTM A/SA182 F51, F53, F55, F59, F60(w1.4462, 1.4410, 1.4501, 1.4507 etc.)
▶Nickel Alloy: ASTM B564 N10276, N04400,N06600,N06601,N06625,N08800, N08020 (w2.4819,2.4360,2.4361,2.4816,2.4851,2.4856,1.4876,1.4958 )etc.
▶Other Alloys:

ASTM A105,A105N; St37.2, C22.8;

ASTM A182 F11, F12, F22, F5, F91;

ASTM A350 LF2, LF3;

ASTM A694 F42, F46, F48, F50, F52, F56,F60,F65,F70 etc.

Specification:

ASME/ANSI B16.5-1996 and B16.47-1996
Tolerances on flange dimensions (ASME/ANSI B16.5 and B16.7, and MSS SP-44)
Dimension Range Tolerance
in mm
General and Blind Flanges(For blind flange dimendions see page 8-23 for
B16.5, page8-46 for B16.47 Series A/ MSS SP-44 and page 8-51 for B16.47
Series B/ API 605):
G(raised face
diameter)		 ≤NPS 24 ±0.03 ±0.76
≥NPS 26,with
0.06 in raised face		 ±0.08 ±2.03
≥NPS 26,with
0.25 in raised face		 ±0.04 ±1.02
I(bolt hole diameter) All No tolerance in B16.5 or B 16.47
J(bolt circle diameter) All ±0.06 ±1.52
Center to center of
adjacent bolt holes		 All ±0.03 ±0.76
Eccenticity of bolt
circle and machined facing diameters		 ≤NPS 2½ ±0.03 ±0.76
≥NPS 3 ±0.06 ±1.52
Weld Neck Flanges1 (For dimensions see page 8-10 for B 16.5, page 8-46 for
B16.47 Series A/ MSS SP-44 and page 8-51 for B16.47 Series B/ API 605):
D(overall length) ≤NPS 4 ﹢0.06 ﹢1.52
NPS 5 to 10 ﹢0.06,﹣0.12 ﹢1.52,﹣3.05
NPS 12 to 24 ﹢0.12,﹣0.18 ﹢3.05,﹣4.57
≥NPS 26 ±0.19 ±4.83
Thickness of hub All ＞87.5% of pipe nominal wall thickness
Slip on(see page 8-17),Lap Joint(see page8-32) and Socket Welding(see page
8-30 for dimensions) Flanges:
B(inside diameter,or
bore)		 ≤NPS10 ﹢0.03,﹣0.0 ﹢0.76,﹣0.0
≥NPS12 ﹢0.06,﹣0.0 ﹢1.52,﹣0.0
Threaded Flanges (see page 8-40 for dimensions):
B(counterbore)
(Not applicable for
Class 150 lb		 ≤NPS10 ﹢0.03,﹣0.0 ﹢0.76,﹣0.0
≥NPS12 ﹢0.06,﹣0.0 ﹢1.52,﹣0.0
