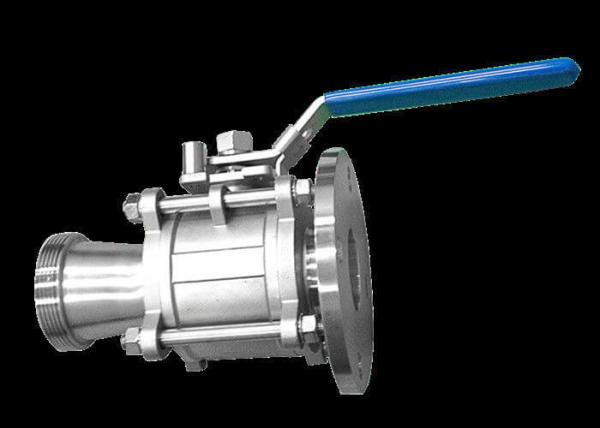

Low Torque Sanitary Ball Valves , Manual Ball Valve External Surface Sand Blasting Finishing

NYHAU sanitary ball valves are made of high-quality stainless steel, which can meet the special requirements of various media in food and biopharmaceutical fields. The smooth, seamless and automatic emptying of handicrafts is also very suitable for steam cleaning;

NYHAU valves can supply valve body and disc materials such as AISI 304 or AISI 316L, 304L and 316 materials according to your requests. This stainless steel hygienic ball valve is suitable for dairy, food, beer, beverage, pharmaceutical, cosmetics and other industrial areas.

Alloy: T304 or T316L

Sizes: 1.50", 2.00", 3.00" OD

Seats: EPDM or Silicone

Finish: Polish to a 32 Ra ID/OD

Handle Interchanges to either side

Field Serviceable

100% Hydraulic Pressure Tested

Economical Price for all sizes from 1.5" -- 4"

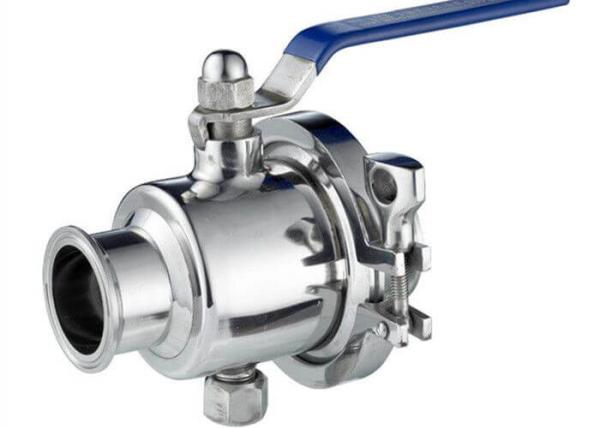

Sanitary ball valves, is also called as hygienic ball valve which are opened by turning handles attached to balls inside the valves. The ball has a hole or port through the middle. When the port is in line with both ends of the valve, flow will occur. When the valve is closed, the hole is perpendicular to the ends of the valve, and flow is blocked. A ball valve is durable and usually work to achieve perfect shutoff even after years of disuse.

Specification:

Sizes are available from 1/2" to 4" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4")

DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100)

Valve body can be AISI 304 or AISI 316L.

Valve seat: Teflon (PTFE)

Max. working pressure: 145psi (10bar)

Temperature range: -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.

End connections: tri-clamp / tri-clamp, others available upon request.

Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.

Direct 2-way body.

Handle: 180°rotary handle.

Options:

End connection can be butt-welded, sanitary tri-clamp, threaded others upon request.

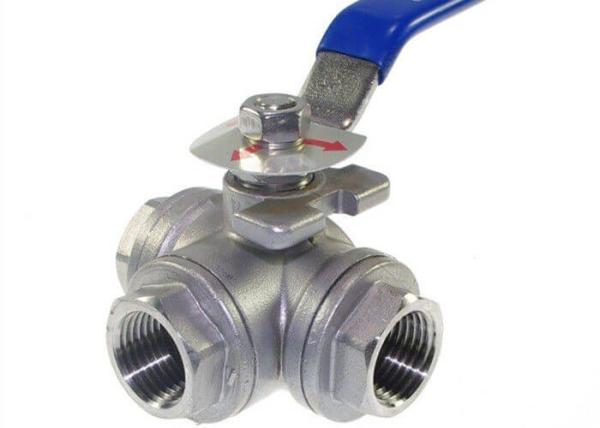

Valve body can be three-way: T type or L type ball core for choose from

Valve body can be with or without purge ports for SIP / CIP.

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

Working temperature :

-10oC up to 150oC

Valve line includes, ball, butterfly, check, seat, long stroke, mix proof, PMO, diaphragm and sampling. All valves can be supplied with a variety of actuation and control packages.

Sanitary pump line includes both centrifugal and positive displacement pumps.
