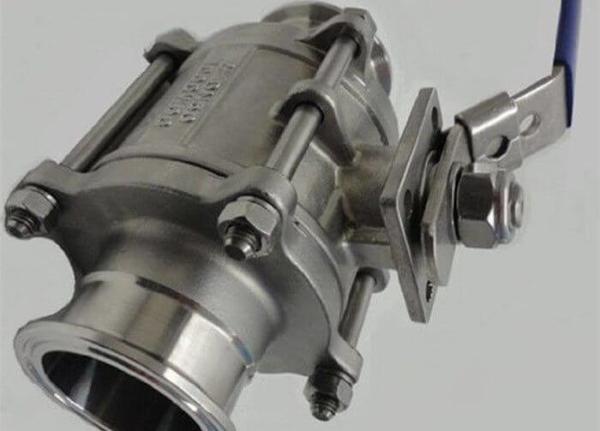

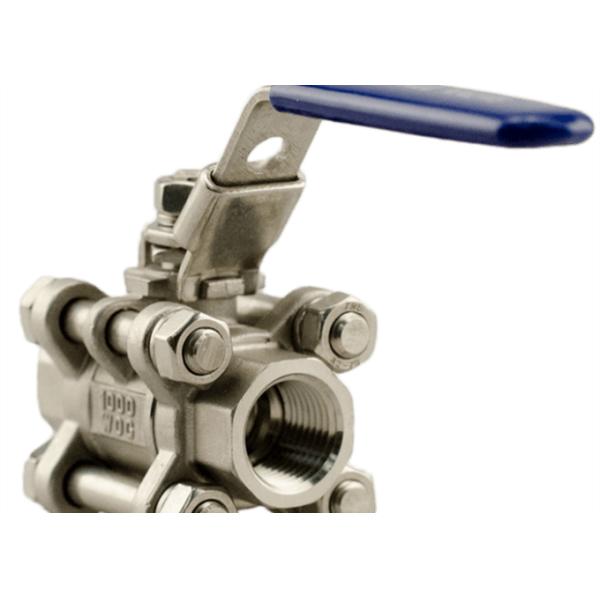

High Sealing Stainless Steel Ball Valve BPE Sanitary Pipe Fittings With Viton Seats
High Sealing Stainless Steel Ball Valve BPE Sanitary Pipe Fittings With Viton Seats
High Sealing Stainless Steel Ball Valve BPE Sanitary Pipe Fittings With Viton Seats
High Sealing Stainless Steel Ball Valve BPE Sanitary Pipe Fittings With Viton Seats
High Sealing Stainless Steel Ball Valve BPE Sanitary Pipe Fittings With Viton Seats
High Sealing Stainless Steel Ball Valve BPE Sanitary Pipe Fittings With Viton Seats
High Sealing Stainless Steel Ball Valve BPE Sanitary Pipe Fittings With Viton Seats
High Sealing Stainless Steel Ball Valve BPE Sanitary Pipe Fittings With Viton Seats
Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Materials :
AISI 304
Diameter :
1'' - 4''
Connection :
Welded/Clamp
Specifications :
3A ASME BPE
industry :
Sanitary industry food beverage beer industry
Application :
General
Power :
Manual
Port Size :
Standard
Size :
Custom Made
type :
ball valve
Description

High Sealing Stainless Steel Ball Valve BPE Sanitary Pipe Fittings With Viton Seats

NYHAU can offer All types of sanitary stainless steel flow control equipment for the food & beverage, dairy, cosmetic, biotechnology, pharmaceutical, and electronic processing industries.

Alloy: T304 or T316L


Sizes: 1.50", 2.00", 3.00" OD


Seats: EPDM or Silicone


Finish: Polish to a 32 Ra ID/OD


Handle Interchanges to either side


Field Serviceable


100% Hydraulic Pressure Tested


Economical Price for all sizes from 1.5" -- 4"

Standard Features:

  • 1.5", 2", 2.5", 3", 4" sizes available
  • Clamp or weld ports
  • Viton seats
  • 10 Bar operating pressure
  • Max operating temperature 248 deg. F
  • Min operating temperature -4 deg. F
ASME BPE and Sanitary Fittings


Sanitary ASME BPE fittings, SFF1 and SFF4 both buttweld and sanitary clamp


Sanitary buttweld and sanitary clamp fittings


Tube OD weld fittings


Stock sizes 1/4 inch through 4 inch


Sanitary fittings and tube up to 12 inch OD is available

Working temperature :


-10oC up to 150oC


Valve line includes, ball, butterfly, check, seat, long stroke, mix proof, PMO, diaphragm and sampling. All valves can be supplied with a variety of actuation and control packages.

Sanitary pump line includes both centrifugal and positive displacement pumps.

Stainless Steel Sanitary Tubing and Tube Fittings Highlights:

Valve line includes, ball, butterfly, check, seat, long stroke, mix proof, PMO, diaphragm and sampling. All valves can be supplied with a variety of actuation and control packages.

Sanitary pump line includes both centrifugal and positive displacement pumps.

BS Weld End / SMS Weld End

Size A B C D E F G
1.0" 120.7 58 58 22.1 25.4 28 22.4
1.5" 120.7 58 74 34.7 38.1 42 35.2
2.0" 120.7 58 84 47.6 50.8 55 45.4
2.5" 158.8 92 98 60.2 63.5 70 60.4
3.0" 158.8 92 108 72 76.2 80 70.4
4.0" 158.8 92 138 97.6 101.6 110 97.2

Size A B C D E F G
25 120.7 58 58 22.5 25.4 28 22.4
38 120.7 58 74 35.5 38.1 42 35.2
51 120.7 58 84 48.4 50.8 55 45.4
63.5 158.8 92 98 60.4 63.5 70 60.4
76 158.8 92 108 72.7 76.2 80 70.4
104 158.8 92 138 99.88 101.6 110 97.2

Steel material Product wetted steel parts

AISI 304 or 316L

 Provided with material inspection report
Other steel parts AISI 304
Seal material Standard Teflon (PTFE) All seal materials comply with FDA 21CFR117.2600
Options N/A
Pressure Working pressure ≤145psi (10bar)
Supply pressure for air actuator 70 ~ 116psi (5 ~ 8bar)
Temperature Working temperature -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.
Surface treatment Inside surface treatment Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment Ra 32 ~ 64µin (0.8 ~ 1.6µm)
Connection End connections can be butt-welded, sanitary clamp, male and female threaded, flanged, I-line or others upon request.

High Sealing Stainless Steel Ball Valve BPE Sanitary Pipe Fittings With Viton Seats
