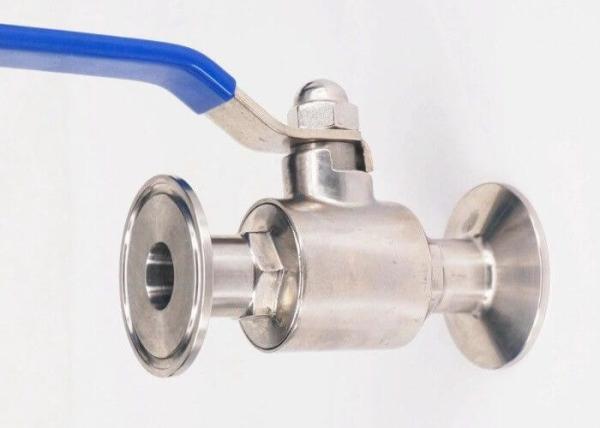

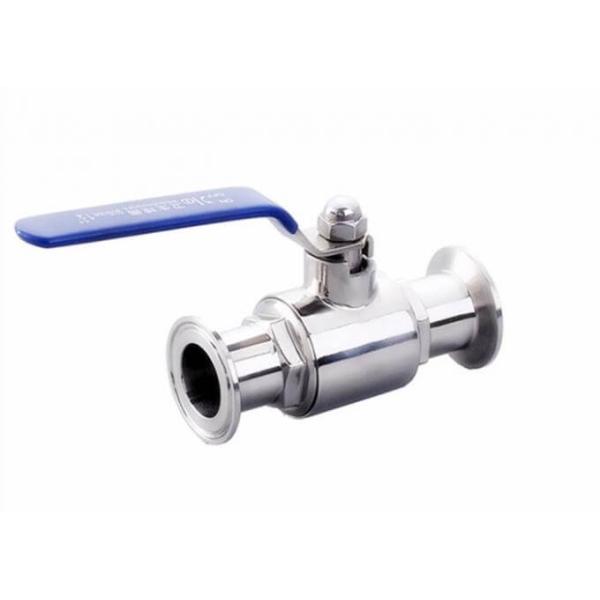

Clamp Ends Sanitary Ball Valves , 2 Inch Ball Valve For Hygienic Industry

Applications:

The ball valve is a manual type sanitary ball valve with tri-clamp / tri-clamp ends, which is extensively used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow. The full port design with zero restriction makes it an optimum choice for viscous and particulate liquids, ball valve operates manually 180°rotary Handle.

Specifications:

Sizes are available from 1/2" to 4" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4")

DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100)

Valve body can be AISI 304 or AISI 316L.

Valve seat: Teflon (PTFE)

Max. working pressure: 145psi (10bar)

Temperature range: -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.

End connections: tri-clamp / tri-clamp, others available upon request.

Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.

Direct 2-way body.

Handle: 180°rotary handle.

Options:

End connection can be butt-welded, sanitary tri-clamp, threaded, flanged, I-line or others upon request.
Valve body can be three-way: T type or L type ball core for choose from

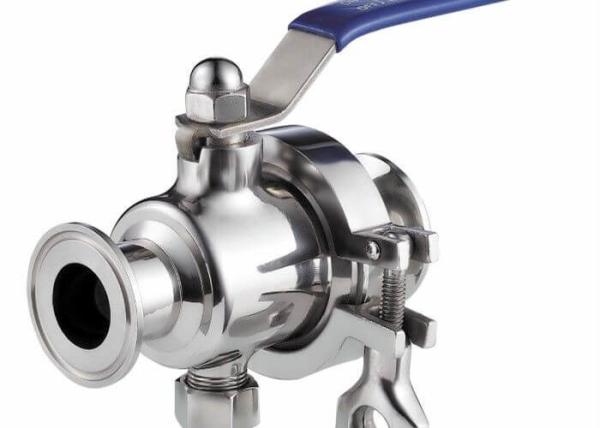

Valve body can be with or without purge ports for SIP / CIP.
Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.
NC operated: normally closed (fail closed)---air to open, spring to close
NO operated: normally open (fail open)---air to close, spring to open
AA operated: double acting---air to open, air to close

Application: Beer, food, dairy, beverage, cosmetics, pharmacy and chemical etc industries

Transportation: BY SEA, BY AIR, BY COURIER

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
