Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Materials :
TP316L Stainless Steel
Structure :
Ball
Connection :
Weld
Specifications :
3A ASME BPE
industry :
Sanitary industry food beverage beer industry
Application :
General
Power :
Manual
Port Size :
Standard
Diameter :
1'' - 4''
Type :
Butterfly Type Ball Vavle
Description

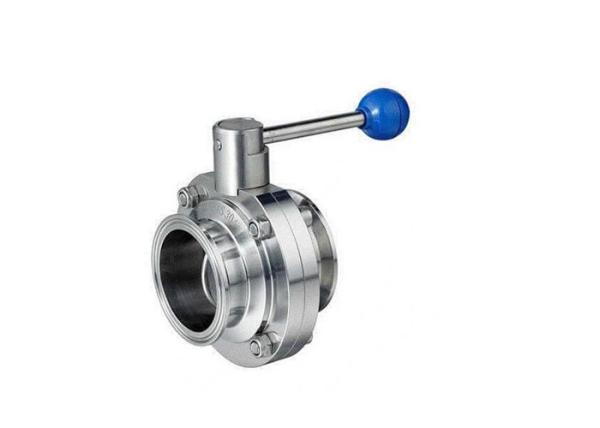

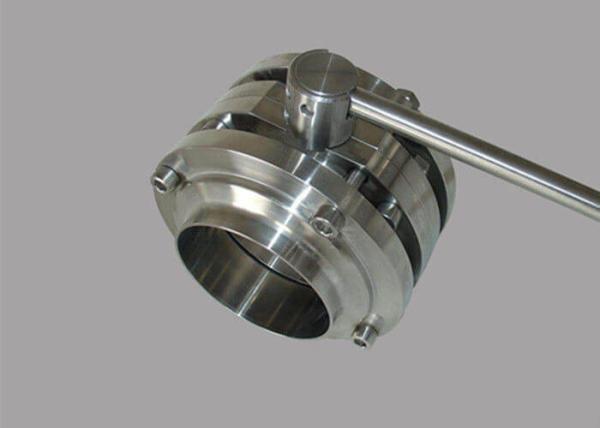

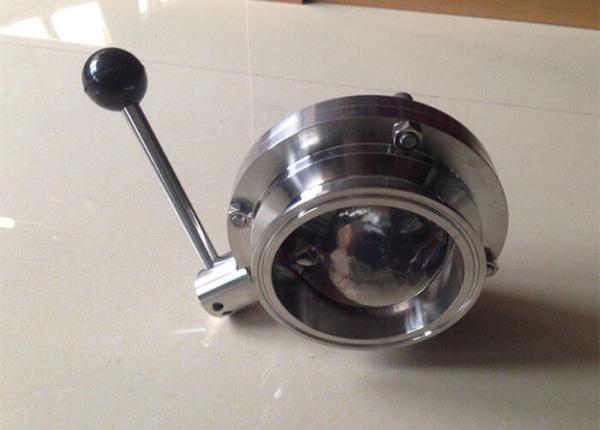

3A ASME BPE Sanitary Butterfly Ball Valve Simple And Compact Structure


Sanitary Butterfly type ball Valve is a new design sanitary ball valve. Its shape likes butterfly valve type, but the closing-opening part is a ball which is rotary to control the valve opening and closing. Sanitary butterfly ball valve is made in stainless steel 1.4301, 1.4404 or TP316L, TP304 ete. We are ability to provides butterfly type ball valve with tri clamp, welded, threaded connection etc, and operation can be manual, air operated, electric operated etc. NYHAU sanitary offers fully line of sanitary vavle for food processing, beverages, fruit juices, wine, biopharmaceutical etc.

Vavle Types:

  • Manual Butterfly type Ball Valve
  • Pneumatic Butterfly type Ball Valve
  • Electric Butterfly type Ball Valve

Strength:

  • Stainless steel T316L, T304, 1.4301, 1.4404 or specified.
  • Small fluid resistance and drainable.
  • Simple and compact structure, light weight, strong and reliable design.
  • Low-torque, 90° rotation, facilitate of remote controlling.
  • Variety connection of tri-clamp, welded, threaded etc.
  • Surface finishing: External surface sand blasting, Internal surface Ra 0.8?m or on request.
  • Operation of manual, air, electric actuator etc available.
  • Sealing materials complies with FDA 177.2600.
  • Standard of 3A,DIN,SMS,RJT etc.

Application:

Applied to processing control and piping system, especially for brewery and winery fermentation tank etc.

Sanitary Butterfly type Ball Valves Specification

PRODUCT Sanitary Butterfly type Ball Valve
DIMENSION 1/2″ ~ 4″
MATERIAL T304, T316L, 1.4301, 1.4404 etc.
STANDARD 3A,DIN,SMS,ISO,IDF,BPE,RJT,DS etc.
SEALING GASKET PTFE, EPDM, FPM, SILICONE etc.
TEMPERATURE -30°C / -22°F up to +150°C/ +302°F
Pressure 0-10bar
Operation Manual, Pneumatic, Electric
APPLICATION Pharmacy, Beer, Food, Petroleum, Dairy, Beverage, Biotech, Cosmetics etc.
How to order *Part Name*Size*Material *Quantity *Standard

3A ASME BPE Stainless Steel Sanitary Valves Butterfly Ball Valve Simple And Compact Structure

Dimension of Sanitary Welded butterfly-type ball valve -DIN Series

Size D1 D2 L L1 H t KxK
DN15 18 19 72 126 86 1.5 8*8
DN20 22 23 72 126 86 1.5 8*8
DN25 28 29 72 126 90 1.5 8*8
DN32 34 35 80 126 92 1.5 8*8
DN40 40 41 84 133 104 1.5 10*10
DN50 52 53 98 144 113 1.5 10*10
DN65 70 – 120 160 131 2.0 11*11
DN80 85 – 140 220 144 2.0 11*11
DN100 104 – 164 284 161 2.0 14*14

Dimension of Sanitary Welded Butterfly-type Ball Valve -3A,SMS,ISO,IDF,DS Series

Size D L L1 H t KxK
3/4” 19 72 126 86 1.5 8*8
1” 25.4 72 126 90 1.5 8*8
1 1/4” 31.8 80 126 92 1.5 8*8
1 1/2” 38 84 133 104 1.5 10*10
2 50.8 98 144 113 1.5 10*10
2 1/2” 63.5 116 160 128 2.0 11*11
3” 76.2 132 220 138 2.0 11*11
3 1/2” 89 140 220 144 2.0 11*11
4” 101.6 164 284 161 2.0 14*14
