304 316L Hygienic Butterfly Valves ASME BPE AISI With Thread And Weld Connection
304 316L Hygienic Butterfly Valves ASME BPE AISI With Thread And Weld Connection
304 316L Hygienic Butterfly Valves ASME BPE AISI With Thread And Weld Connection
304 316L Hygienic Butterfly Valves ASME BPE AISI With Thread And Weld Connection
304 316L Hygienic Butterfly Valves ASME BPE AISI With Thread And Weld Connection
304 316L Hygienic Butterfly Valves ASME BPE AISI With Thread And Weld Connection
304 316L Hygienic Butterfly Valves ASME BPE AISI With Thread And Weld Connection
304 316L Hygienic Butterfly Valves ASME BPE AISI With Thread And Weld Connection
Specifications
Brand Name :
NYHAU
Place of Origin :
WENZHOU,CHINA
MOQ :
Sample order acceptable
Price :
Contact us for the best quote
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5,000pcs per month
Delivery Time :
1 to 2 weeks
Packaging Details :
Wooden Boxed
Material :
AISI 304 316L Stainless Steel
Size :
1'' To 4''
Connection Type :
Tri Clamp/Welded
Alloy :
T304 or T316L
Standard :
3A ASME BPE
Seats :
EPDM or Silicone
Description

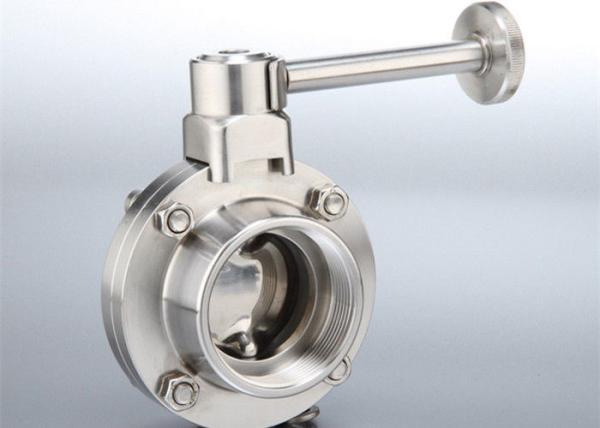

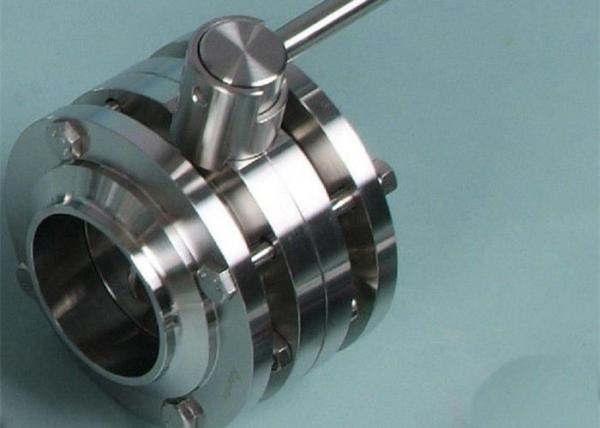

ASME BPE AISI 304 316L Sanitary Butterfly Valves With Thread And Weld Connection

NYHAU's Sanitary Butterfly valve Weld ends ultra slim design made of stainless steel either 316L or 304, Surface finishing 180 Grit ID/ 150 Grit OD, combined with different operation devices & accessories, many elastomeric combinations as well as different end types.

Alloy: T304 or T316L


Sizes: 1.50", 2.00", 3.00" OD


Seats: EPDM or Silicone


Finish: Polish to a 32 Ra ID/OD


Handle Interchanges to either side


Field Serviceable


100% Hydraulic Pressure Tested


Economical Price for all sizes from 1.5" -- 4"

ASME BPE and Sanitary Fittings


Sanitary ASME BPE fittings, SFF1 and SFF4 both buttweld and sanitary clamp


Sanitary buttweld and sanitary clamp fittings


Tube OD weld fittings


Stock sizes 1/4 inch through 4 inch


Sanitary fittings and tube up to 12 inch OD is available

Specifications:


Sizes available: 1/2" to 4" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4"); DN15 - DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100).


Material: Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.


Max. working pressure: 145psi (10bar) for DN25/1"-DN100/4"; 116psi (8bar) for DN125/5"-DN150/6"; 73psi (5bar) for DN200/8"-DN300/12".


Temperature range: 14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat.

Operation: 4-position pull handle as the product photo shows


End connections: thread / thread


Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.

Forged stainless steel 316L and 1.4404, Material certificate to EN10204 available.


Customized fabrication available.


Fast delivery to meet your needs well in time.


Package service with sanitary fittings – save time and cost.


Good experience for worldwide supplying.


Flexibility on order quantity and operation.


Pre-fabrication and assembling available.

Material :


1. Nylon 6 + reinforce glass fiber handle with SS 304 gripper bar and notch plate.


2. All SS 304 handle, gripper bar and notch plate.

Disc head size :


9.4 x 9.4mm, 12 x 8mm or 12 x 12mm available.


Feature :


* Precision and beautiful design.
* Easy operation and safe lock.
* Easy to put your logo marks on.

Characteristics:

Sanitary Tri-Clamp Fittings meet all 3A requirements

Sanitary Tri-Clamp Fittings Stocking Alloys: T304 or T316L

Sanitary Tri-Clamp Fittings Sizes: 1⁄2” – 12” OD Tube


Sanitary Tri-Clamp Fittings Sanitary Finish: 180 Grit Polish ID/OD

Nominal Size Tube Wall Thickness
inch mm. inch mm.
1/2 12.70 0.065 1.65
3/4 19.05 0.065 1.65
1 25.40 0.065 1.65
1 1/2 38.10 0.065 1.65
2 50.80 0.065 1.65
2 1/2 63.50 0.065 1.65
3 76.20 0.065 1.65
4 101.60 0.083 2.11
6 152.40 0.109 2.77
8 203.20 0.120 3.05
10 254.00 0.109 2.77

OUTSIDE DIAMETER (MM) WALL- THICKNESS (MM) NOMINAL OUTSIDE DIAMETER NOMINAL WALL THICKNESS DIMENSIONAL STANDARD
6,35 0,89 1/4" 0,035" ASME BPE
9,53 0,89 3/8" 0,035" ASME BPE
12,70 1,65 1/2" 0,065" ASME BPE
19,05 1,65 3/4" 0,065" ASME BPE
25,40 1,65 1" 0,065" ASME BPE
38,10 1,65 1 1/2" 0,065" ASME BPE
50,80 1,65 2" 0,065" ASME BPE
63,50 1,65 2 1/2" 0,065" ASME BPE
76,20 1,65 3" 0,065" ASME BPE
101,60 2,11 4" 0,083" ASME BPE
152,40 2,77 6" 0,109" ASME BPE
