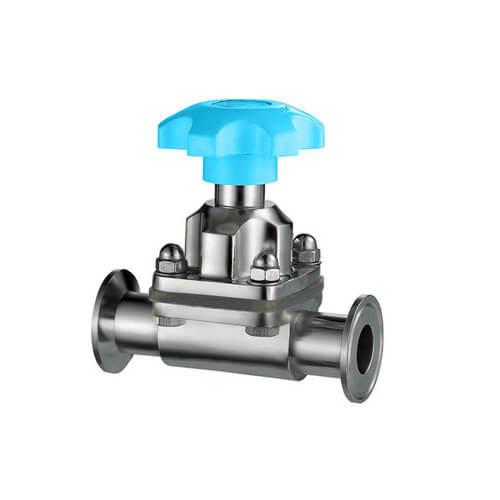

3A Forge Straight Clamp Diaphragm Valve SS304 / SS316L Hygienic Diaphragm Valve
3A Forge Straight Clamp Diaphragm Valve SS304 / SS316L Hygienic Diaphragm Valve
3A Forge Straight Clamp Diaphragm Valve SS304 / SS316L Hygienic Diaphragm Valve
3A Forge Straight Clamp Diaphragm Valve SS304 / SS316L Hygienic Diaphragm Valve
3A Forge Straight Clamp Diaphragm Valve SS304 / SS316L Hygienic Diaphragm Valve
3A Forge Straight Clamp Diaphragm Valve SS304 / SS316L Hygienic Diaphragm Valve
Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Standard :
DIN
Size :
1"-3", Dn20-Dn65
Function :
Manual Valve
Application :
Dairy, food, beer, beverage, pharmaceutical
Seal Material :
PTFE And EPDM
Steel Material :
316L Stainless Steel
Description

3A Sanitary Stainless Steel SS304/SS316L Forge Straight Clamp Diaphragm Valve

Application:


diaphram valve is a series of sanitary diapgram valve, it is widely used on wine, dairy products, beverage, foodstuff industry, pharmacy etc. Achieving the requirement of control and open/close for the pipeline system.

Work principle:


The diaphragm is close under normal state, and that moment the diaphragm clung tho the valve body cavity, and closing off the flow path through the pipeline. When the diaphragm valve have the requirment to clean or open, the valve stem moves upwards according to the manual or pneumatic actuator equipment, spherical diaphragms naturally nemd upwards, so that the valve is open and reach the requirement of clean and open. The diaphragm make the lower body cavity and the upper chamber separted from the valve cover, so that the stem at the top of the diaphragm, disc media and other parts from corrsion, eliminating the need for packing structure, and no media leaks, the optimize valve body made the cleaning liquid flow out totally, so that don't have any entrapment.

Connection mode:

Clamped. Our company offers other types of connection modes, such as weld, T type tee, U type tee etc.

Standard:

3A. Our company offers other standard, such as IDF, DIN,SMS,ISO.

The parts of valve:

an actuator, diaphragm and body which assemble together with bolts and nuts. Sanitary Stainless Steel Forge Straight Diaphragm Valve's actuator is manual. The body is two way.

Material:


Steel componens: Stainless steel 304, stainless 316L


Seal: EPDM+PTEE the seals are imported seal material (which conform to the FDA177.2600standard).
