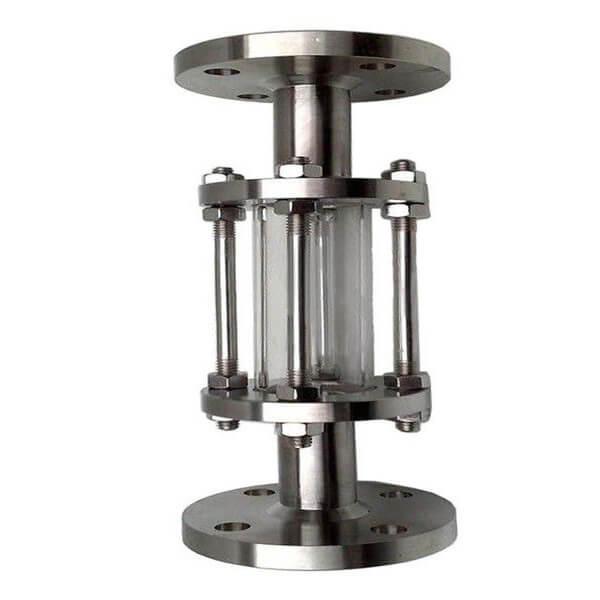

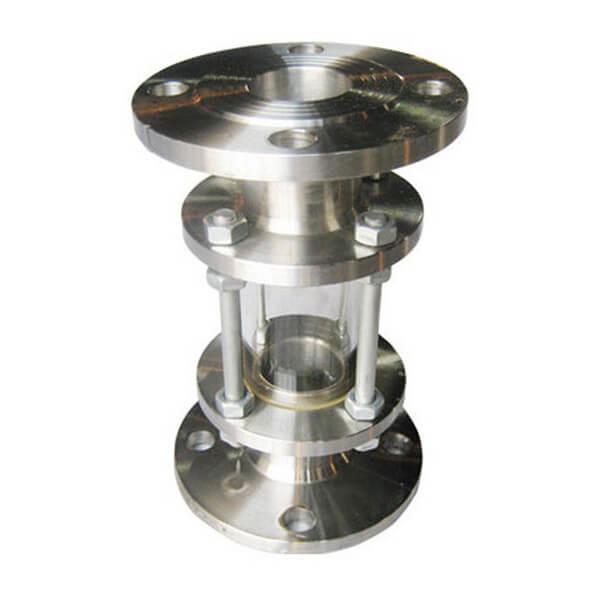

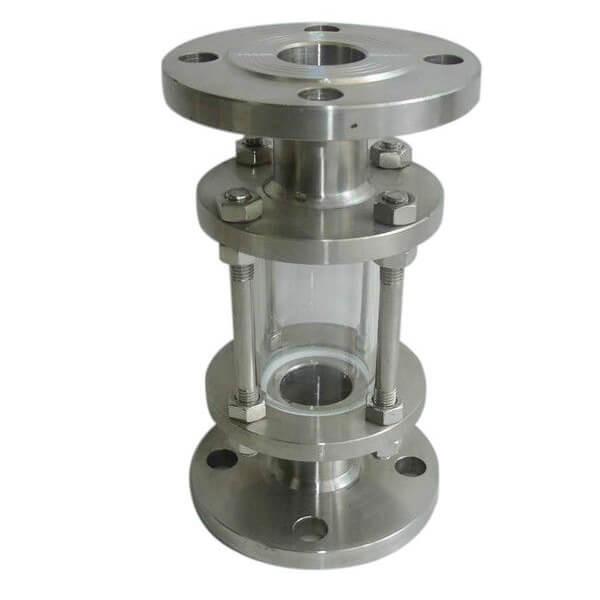

304 / 316L Stainless Steel Sight Glass Full Bore For Biotechnology
304 / 316L Stainless Steel Sight Glass Full Bore For Biotechnology
304 / 316L Stainless Steel Sight Glass Full Bore For Biotechnology
304 / 316L Stainless Steel Sight Glass Full Bore For Biotechnology
304 / 316L Stainless Steel Sight Glass Full Bore For Biotechnology
304 / 316L Stainless Steel Sight Glass Full Bore For Biotechnology
304 / 316L Stainless Steel Sight Glass Full Bore For Biotechnology
304 / 316L Stainless Steel Sight Glass Full Bore For Biotechnology
Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Material :
SS304 or SS316L
Gasket :
Sillicon, EPDM
Size :
1"-4" or DN25-DN100
Standards :
3A, SMS, DIN, RJT, IDF
Application :
dairy,beverage,food,beverage,pharmacy,biotechnology,cosmetic etc
Connection :
Welded,Clamped,Threaded
Description

Full Bore Sanitary Sight Glass Flange Type , 304 / 316L Stainless Sight Glass

Product Description

Product Name: Sanitary Stainless Steel Sight Glass
Material: SS304 or SS316L
Standard: 3A, SMS, DIN, RJT, IDF
Size: 1"-4" or DN25-DN100
Connection Way: Weld, Clamp, Thread, Flange, etc
Seal Material: Silicone, EPDM, Viton, NBR
Surface Treatment: CNC machining
Working Temperature: -10 degree to +120 degree (EPDM)
Packing Details: Usually bubble pack for each within carton box or plywood case, or special packaging upon customer requirements.

Application Range: dairy,beverage,food,beverage,pharmacy,biotechnology,cosmetic etc

Name: stainless steel sight glass valve

Material: AISI304 AISI316L

Specification: DN25-150 & 1”-6”

Standard: DIN,3A,SMS,BS,AS,BPE etc

Connection: Welded,Clamped,Threaded

Packaging: Carton / Wooden Case

Price: Competitive Price

Packing and Shipment:

1. Each sight glass is packed with bubble bag, then put into cartons

2. Cartons can be put on plywood pallet or into plywood case

​3. We are strategic agent of TNT, FedEx, UPS and DHL to help you save shipment cost

​4. We are only 100KM from Shanghai, and arrange both sea and air shipment

5. Existing inventory of standard models ready for immediate delivery

Specification:

a. Size b. DN10-DN150 & 1/2""-6"
c. Type d. Straight Tube Sight Glass
e. Working Pressure f. 1.0 MPa Max.
g. Medium Temperature h. 0~200℃
i. Optional Accessories j. LED light available
k. Standard l. ISO, DIN, IDF, 3A, SMS etc.
m. Material n. SUS304, SUS316L etc.
o. Certificate p. CE, ISO9001/2008, 3A
q. Applications r. Dairy, food, beer, beverage, pharmacy, cosmetic, etc.
