Sanitary T Type Tri Clamp Spray Ball , Double Circulating Clean In Place Spray Ball
Sanitary T Type Tri Clamp Spray Ball , Double Circulating Clean In Place Spray Ball
Sanitary T Type Tri Clamp Spray Ball , Double Circulating Clean In Place Spray Ball
Sanitary T Type Tri Clamp Spray Ball , Double Circulating Clean In Place Spray Ball
Sanitary T Type Tri Clamp Spray Ball , Double Circulating Clean In Place Spray Ball
Sanitary T Type Tri Clamp Spray Ball , Double Circulating Clean In Place Spray Ball
Sanitary T Type Tri Clamp Spray Ball , Double Circulating Clean In Place Spray Ball
Sanitary T Type Tri Clamp Spray Ball , Double Circulating Clean In Place Spray Ball
Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Material :
Stainless Steel SS304,SS316L
Working Pressure :
1.0~3.0bar
Size :
1" ~ 2.5", DN25 ~ DN60
Standards :
ISO, DIN, IDF, 3A, SMS Etc.
Application :
Used For Hygienic Tank Cleaning
Connection End :
Male / Female Thread, Weld, Clamp
Description

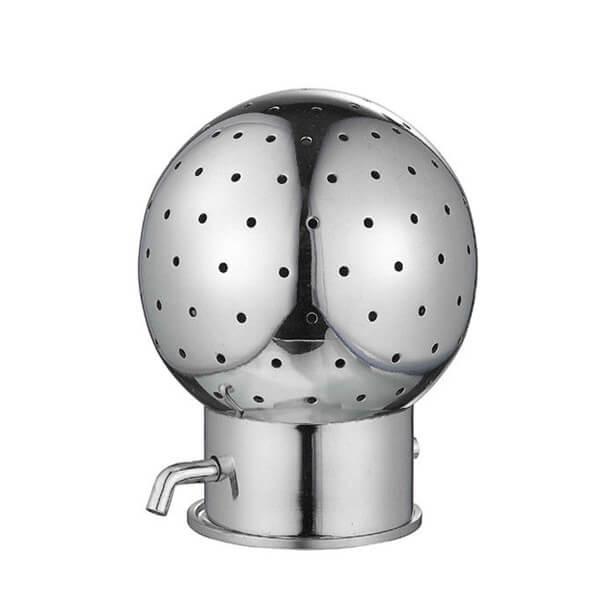

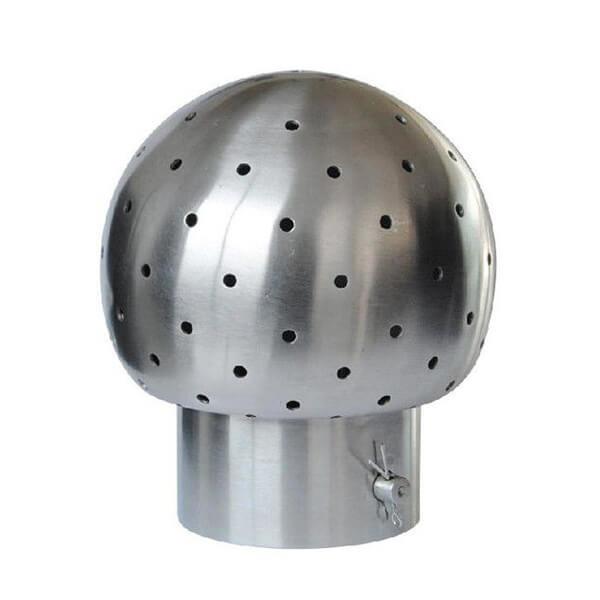

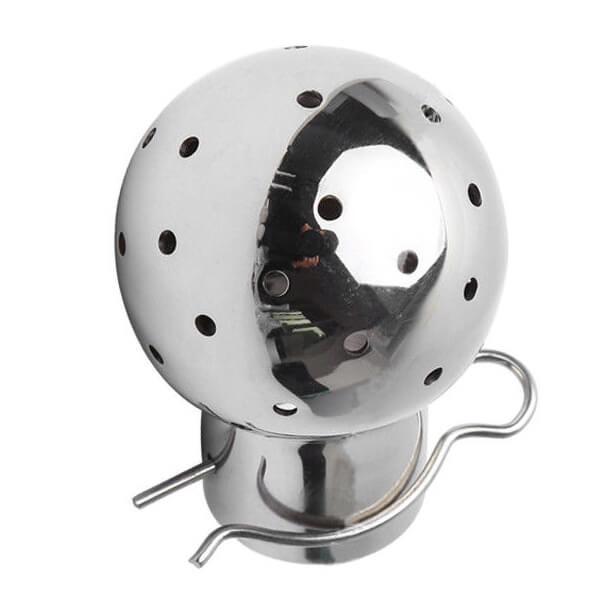

Sanitary T Type Sanitary Spray Balls , Double Circulating Rotating Spray Ball Tank Cleaning

Features:

Effective cleaning especially for sanitary tank with diameter upto 4.5 meters

Very high efficient cleaning function

Very low consumption of water, energy and cleaning material

Hygienic structure with self-lubricating ability on cleaning liquid

Can be connected to the tank by thread, clamp, welding or bolt

Spray in all directions to clean every part of the tank

Working Principle:

The spray cleaning ball automatically spray the cleaning liquid strongly to clean inside of the tank.

The cleaning solution make the sprayer rotary by it's motive power, then the fun jet created the whole tank and reactor with vortex. Medium remainings on the vessel inside surface can be removed effectively.

Technical Data:

Size: 1" ~ 2.5", DN25 ~ DN60
Material: Stainless Steel SS304,SS316L
Type of Cleaning Ball: Double circulating type
Connection End: Thead, Bolt, Clamp, Butt weld
Injection Direction: Top area, bottom area, or 360 degrees in all direction
Working Pressure: 1.0~3.0bar
Cleaning Radius: 1.25mm~2mm
Fluxation: 12 ~ 38 m3/hour
Surface Polish: Mirror Polished, Dull Polished
Lubrication: Pass to clean liquid from lubricate
Working temperature: 95°C
Highest enviroment temperature: 140°C
Moist Radius: 3 meters
Jet Cleaning Redius: Max. 2 meters
