Industrial Safety Tri Clamp Check Valve Preventing Back Flow 3A ASME BPE
Industrial Safety Tri Clamp Check Valve Preventing Back Flow 3A ASME BPE
Industrial Safety Tri Clamp Check Valve Preventing Back Flow 3A ASME BPE
Industrial Safety Tri Clamp Check Valve Preventing Back Flow 3A ASME BPE
Industrial Safety Tri Clamp Check Valve Preventing Back Flow 3A ASME BPE
Industrial Safety Tri Clamp Check Valve Preventing Back Flow 3A ASME BPE
Industrial Safety Tri Clamp Check Valve Preventing Back Flow 3A ASME BPE
Industrial Safety Tri Clamp Check Valve Preventing Back Flow 3A ASME BPE
Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Application :
Industrial Usage, Water Industrial Usage
Materials :
AISI 304 316L Stainless Steel
Type :
Sanitary Check Valves
Connection Type :
Tri Clamp
Diameter :
1'' - 4''
Specifications :
3A ASME BPE
Description

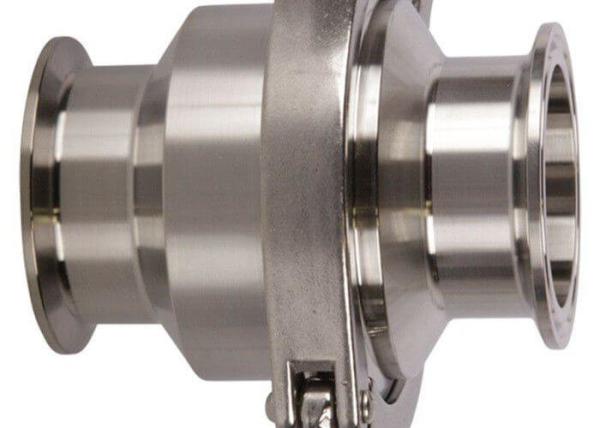

Safety Sanitary Check Valves , Tri Clamp Check Valve Preventing Back Flow

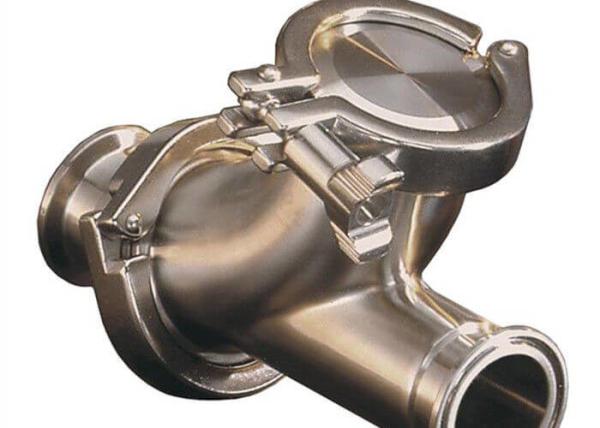

Check valves are widely used for both sanitary and industrial applications to prevent backflow of product.NYHAU’s ball check valves are designed to allow full product flow during processing. Once the product flow stops the ball rolls back to seat at inlet, preventing back flow. Ball Check Valves are commonly used with liquid products. Size range from 1 1/2" - 3". NYHAU’s spring check valves are designed to assist closure pressure to create a positive shutoff. They are commonly used with liquid products. Both valves are offered with clamp and weld ends. Other connections are available upon request. Sizes range from 1/2˝ through 4˝ in TP316 stainless steel.

  • Available sizes 1/2" - 6"
  • Suitable for C.I.P.
  • Operating pressure to 150 psi
  • Temperature from 30°F min. to 225°F max.
  • Standard end connection-clamp type (butt weld &TI-Line upon request)
  • Standard seals-FDA Viton (EPDM & other elastomers upon request)
  • Internal finish-25 to 30ra average
  • Material Test Reports provided upon request
  • Eccentric Type available upon request

Sanitary check valves are offered in sizes 1/2" - 6" with a 316 stainless steel body. Suitable for CIP, operating pressure up to 150PIS and a temperature range between 30F - 225F. Sanitary tri-clamp ends (optional butt weld) and standard FDA approved seals (EPDM available upon request).

Sanitary check valves are widely used for both sanitary and industrial applications to prevent backflow of product.

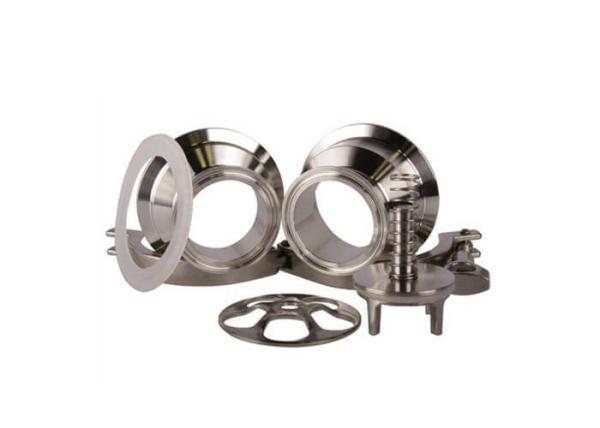

316L stainless steel check valves offer maximum quality that meets all 3A standards. With a unique clamp design, a simple twist of the wing nut permits a quick disassemble without tools. The stainless steel spring in this valve assures positive closer and smooth operation. Eccentric type available upon request.

NYHAU tri-camp sanitary valves are a high performance solution to your industrial Sanitary Valve needs. NYHAU Compliant Sanitary Valves are available in sizes ranging from 1/2” to 12” in materials such as Stainless Steel. NYHAU Sanitary Valves are also available, 2 Way or 3 Way Configurations and are available in L Port and T Port flow patterns. Available end connections include Threaded, Socket Weld, Butt Weld and Flanged.Sanitary Check Valve are ideal for food services, water, mixing, health, pharmaceutical and similar industries.

Sanitary check valve also known as one-way valve, its role is to prevent the pipeline water back in the media. Are different to many other types of valves,for check valves work automatically and most are not controlled by a person or any external control. Accordingly, most do not have any valve handle or stem. Thus there is an important concept in check valves, it is, the cracking pressure. Cracking pressure is the minimum upstream pressure at which the valve will operate. So the check valve is designed for and can therefore be specified for a specific cracking pressure.

Technical Parameters
Steel material Product wetted steel parts

AISI 304 or 316L

(1.4306 / 1.4404)

 Provided with material inspection report
Other steel parts AISI 304
Seal material Standard EPDM All seal materials comply with FDA 21CFR117.2600
Options VMQ (Silicone) or Viton (FPM)
Pressure Working pressure ≤145psi (10bar)
Opening pressure: 4.5psi/0.3 bar (DN25/1"), 3 psi/0.2 bar (DN32/0.75" to DN40/1.5"), 1.5 psi/0.1 bar (DN50/2" to DN100/4")
Temperature Working temperature 14 ~ 248°F (-10 ~ 120°C) with EPDM seat.
Surface treatment Inside surface treatment Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment Ra 32 ~ 64µin (0.8 ~ 1.6µm)
Connection End connections can be butt-welded, sanitary clamp, threaded or others upon request.
