Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Application :
Industrial Usage, Water Industrial Usage
Materials :
AISI304 316L
Type :
Stainless Steel Check Valves
Connection Type :
Butt Weld/Tri Clamp
Diameter :
1/2"-6"
Specifications :
3A ASME BPE
Description

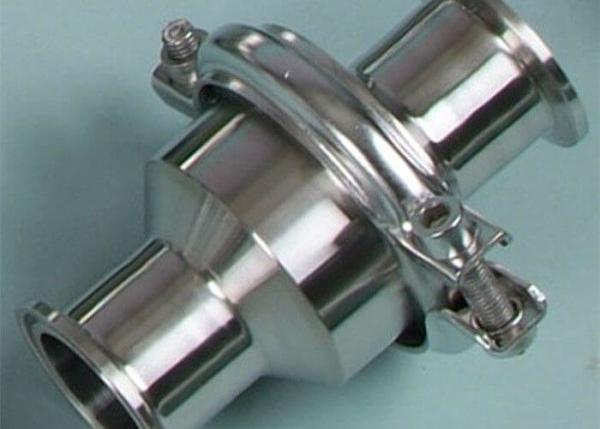

Eccentric Design 1/2"-6" Sanitary Check Valves Non Porous , Easy To Clean And Maintain

Sanitary Check Valve is the sanitary valves worked to prevent the flow from reversing. It is made in stainless steel AISI 316L or 304, with the adavantages of smooth surface, seamless, automatic emptying and easy to maintain etc. Sanitary check valve is also applied to steam and self-cleaning requirement, it is a good choice for the application of food,beverage,biopharmacy etc. With different connection ends, sanitary check valve from NYHAU assures you a safe, easy, fast pipeline.

Design:

  • Forged valve body ensures non-porous, smooth surfaces and stable structure.
  • Compact and simple structure makes sanitary check valve easy to clean and maintain without special tools.
  • Sanitary weld check valve Male check valve and Sanitary Tri Clamp Check Valve are two splitted design, assembled by a clamp and sealed with a gasket.

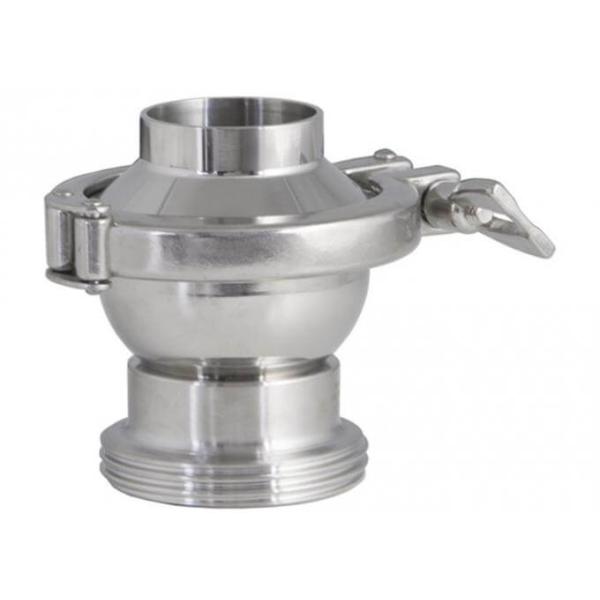

  • Sanitary union type check valve is basically consist of a valve body, a cover and a nuts in threaded union form.
  • Ribbed construction of the stainless steel disc resists heavy pressure hammer, minimizes the resistance to flow and also serves as a guide to the valve plug.
  • Eccentric design allows the check valve installing vertically or horizontally.

Material:

Stainless Steel 304,316L or en.1.4301, 1.4404 etc.

Strength:

  • Material of stainless steel 316L and 1.4404 is from reputed mill to guarantee the chemical composition and mechanical propertis. Material certificate will be submitted follow to orders.
  • Forged valve body and disc to control the leakage and visual.
  • Superior facilities and good experiences for fabrication.
  • In ability to improve and develop new design.
  • Fast delivery is possible to meet your needs well in time.
  • Low cost from bulk production will reduce your budget and improve your business.
  • Small quantity available.

Quality & Inspection:

  • PMI test to verify material grade
  • Dimension controlling during fabricating and finished
  • Visual and surface 100% examination before shipment
  • Packed in carton box firstly, then in wooden case
  • Third party inspection available.

Application:

Food, Brewery, Beverage, Dairy, Pharmaceutical, Biopharma etc.

Dimension of Sanitary Check Valve-DIN

SIZE H D11 2 D t G(RD)

DN20
DN25
112
116
22 23
28 29
72
72
1.5
1.5
43.5*1/6
51.5*1/6

DN40
DN50
116
121
40 41
52 53
87
100
1.5
1.5
64.5*1/6
77.5*1/6

DN80
DN100
159
179
85 –
104 –
128
164
2.0
2.0

94.5*1/6

109.3*1/4

129.3*1/4

Dimension of Sanitary Check Valve – 3A,SMS,ISO,IDF,DS

SIZE H D D1 t G(RD)

1”
1 1/4”
110
112
72
87
25.4
31.8
1.5
1.5

33.5*1/8

39.5*1/6

59.5*1/6

2”
2 1/2”
119
141
100
115
50.8
63.5
1.5
2.0
84.5*1/6
97.3*1/6

3 1/2”
4”
161
173
128
164
89
101.6
2.0
2.0
124.3*1/4
131.3*1/4

Technical Specifications & Options of Sanitary Check Valve

General Specifications of Sanitary Check Valve
Working Pressure Working Pressure 0~10 bar
Opening Pressure 0.1~0.3bar

Working

Temperature

 Continuous Working Temperature -10°C ~ +121°C(EPDM)
Sterilization Temperature 150°C (Max 20min)
Surface Finish Internal Surface Finish R0.8m
External Surface Finish R1.6m
Connections Connection Standards DIN, SMS, 3A, ISO
Connection Methods Welding, Clamp, Threading
Material
Metal Material Product Wetted 304 (1.4301) or 316L (1.4404) forged
Other Steel Parts 304 (1.4301)
EN 10204 3.1B certificate is available on request.
Seal Material Standard EPDM
Options FPM, Silicone, NBR
All seal materials comply with FDA 177.2600.
