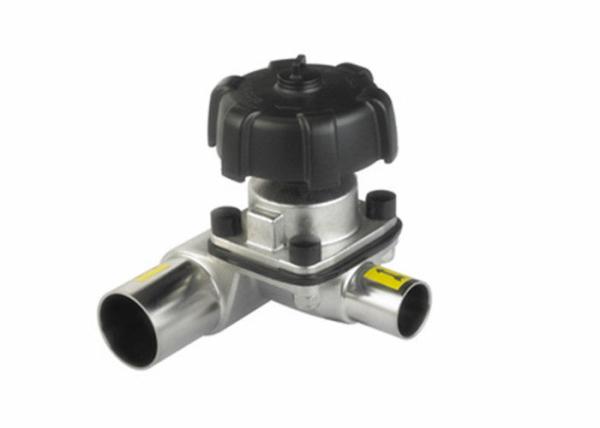

2 Inch Sanitary 3 Diaphragm Valve Stainless Steel AISI 316L DN25 ~ 50
2 Inch Sanitary 3 Diaphragm Valve Stainless Steel AISI 316L DN25 ~ 50
2 Inch Sanitary 3 Diaphragm Valve Stainless Steel AISI 316L DN25 ~ 50
2 Inch Sanitary 3 Diaphragm Valve Stainless Steel AISI 316L DN25 ~ 50
2 Inch Sanitary 3 Diaphragm Valve Stainless Steel AISI 316L DN25 ~ 50
2 Inch Sanitary 3 Diaphragm Valve Stainless Steel AISI 316L DN25 ~ 50
2 Inch Sanitary 3 Diaphragm Valve Stainless Steel AISI 316L DN25 ~ 50
2 Inch Sanitary 3 Diaphragm Valve Stainless Steel AISI 316L DN25 ~ 50
Specifications
Brand Name :
HYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Material :
AISI 316L Stainless Steel
Size :
DN25 ~ 50 or other size on request
Application :
Dairy, water, food, beer, beverage, phramaceutical, cosmetic, chemical industry.
Specificartion :
1"-6", DN25-DN150
Connection :
Welded
Working Temperature :
90 ºC ~ 150ºC
Description

AISI 316L 2 Inch Sanitary 3 Diaphragm Valve , Stainless Steel Diaphragm Valve

Connection mode: Welded


Specification: 1"-6", DN25-DN150


Material quality: SUS304, SUS316L


Standard: ISO, DIN, IDF, SMS, 3A


Application: SP diaphram valve is a series of sanitary diapgram valve ,it is widely used on wine,dairy products,beverage,foodstuff industry,pharmacy etc.achieving the requirement of control and open/close for the pipeline system.

Work principle: The diaphragm is close under normal state,and that moment the diaphragm clung tho the valve body cavity ,and closing off the flow path through the pipeline .When the diaphragm valve have the requirment to clean or open. the valve stem moves upwards according to the manual or pneumatic actuator equipment,spherical diaphragms naturally nemd upwards,so that the valve is open and reach the requirement of clean and open.


The diaphragm make the lower body cavity and the upper chamber separted from the valve cover, so that the stem at the top of the diaphragm,disc media and other parts from corrsion, eliminating the need for packing structure, and no media leaks , the optimize valve body made the cleaning liquid flow out totally ,so that don't have any entrapment.

Material:
Steel componens: stainless steel 304,stainless 316L
Seal: EPDM+PTEE the seals are imported seal material (which conform to the FDA177.2600standard).

3A Size A B C D E F I H L
3/4"-1" 127 25.4 50.5 83 19.05 25.2 15.75 5.5 93/103.5
3/4"-1 1/4" 146 31.8 50.5 85 19.05 25.2 15.75 8 93/103.5
3/4"-1 1/2" 160 38.1 50.5 87 19.05 25.2 15.75 10.5 93/103.5
3/4"-2" 190 50.8 64 105 19.05 25.2 15.75 14.5 93/103.5
1"-1 1/4" 146 21.8 50.5 103.5 25.4 50.5 22.1 6.5 93/103.5
1"-1 1/2" 160 38.1 50.5 105.5 25.4 50.5 22.1 8.5 93/103.5
1 "-2" 190 50.8 64 109.5 25.4 50.5 22.1 14.5 93/103.5
1/4"-1 1/2" 160 38.1 50.5 125 31.8 50.5 28.5 6 107/124.5
1 1/4"-2" 190 50.8 64 127 31.8 50.5 28.5 13 107/124.5
1 1/2"-2" 190 50.8 64 134 38.1 50.5 34.8 13 107/124.5

DN Size A B C D E F I H L
DN20/25 127 28 50.5 83 22 50.5 19 5.5 93/103.5
DN20/32 146 34 50.5 85 22 50.5 19 8 93/103.5
DN20/40 160 40 50.5 87 22 50.5 19 10.5 93/103.5
DN20/50 190 52 64 105 22 50.5 19 14.5 93/103.5
DN25/32 146 34 50.5 103.5 28 50.5 25 6.5 93/103.5
DN25/40 160 40 50.5 105.5 28 50.5 25 8.5 93/103.5
DN25/50 190 52 64 109.5 28 50.5 25 14.5 93/103.5
DN32/40 160 40 50.5 125 34 50.5 31 6 107/124.5
DN32/50 190 52 64 127 34 50.5 31 13 107/124.5
DN40/50 190 52 64 134 40 50.5 37 13 107/124.5
