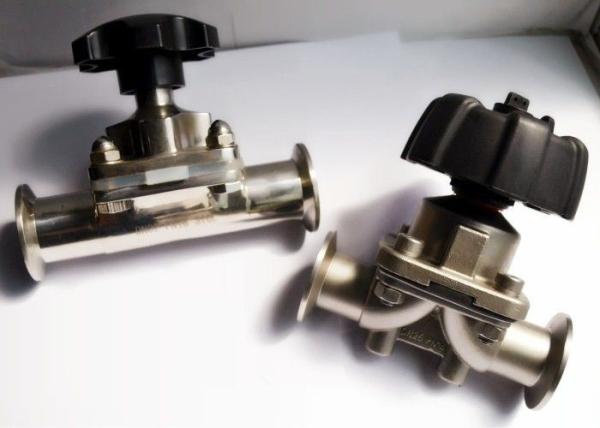

1/4'' Hygienic Diaphragm Valve , SP-4M AISI-316L SS Manual Operated Valve
1/4'' Hygienic Diaphragm Valve , SP-4M AISI-316L SS Manual Operated Valve
1/4'' Hygienic Diaphragm Valve , SP-4M AISI-316L SS Manual Operated Valve
1/4'' Hygienic Diaphragm Valve , SP-4M AISI-316L SS Manual Operated Valve
1/4'' Hygienic Diaphragm Valve , SP-4M AISI-316L SS Manual Operated Valve
1/4'' Hygienic Diaphragm Valve , SP-4M AISI-316L SS Manual Operated Valve
1/4'' Hygienic Diaphragm Valve , SP-4M AISI-316L SS Manual Operated Valve
1/4'' Hygienic Diaphragm Valve , SP-4M AISI-316L SS Manual Operated Valve
Specifications
Brand Name :
HYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Material :
AISI-316L
Size :
1/4''
Application :
Dairy, water, food, beer, beverage, phramaceutical, cosmetic, chemical industry.
Specificartion :
1"-6", DN25-DN150
Connection :
Welded
Working Temperature :
90 ºC ~ 150ºC
Description

1/4'' Sanitary Diaphragm Valves , SP-4M AISI-316L SS Manual Operated Valve

Application:

SP-4M series is a manual type sanitary diaphragm valve, which is widely used in food, beverage, dairy, brewing, pharmaceutical industries, etc. It is excellent for flow control as well as for open/close duties.

Materials:

Materials: AISI-316L


Size: 1/4''


Diaphragm: EPDM + PTFE

The seal materials comply with FDA177.2600 standard. Using proprietary technology, the diaphragm uses a combination of EPDM and PTFE, which is secured using SS bolts. The sealing part where contact with the medium is of PTFE material, it has good cold resistance -13°F (-25°C), excellent heat-resistance 482°F (+250°C), tolerance to most chemicals, and excellent abrasion resistance to medium flow.

Standard Design:

Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, ASME / BPE.


The parts mainly include: a hand wheel, diaphragm and valve body which are assembled together with bolts and nuts. The body can be two ways or three ways.


End connections: butt-welded, sanitary clamp, or others upon request


Body type: T-type tee, U type tee, Mini type, tank bottom type, etc.

Technical Specification:

Size available: 1/4", 1/2", 3/8", 3/4", 1", 1 1/2", 2" 2 1/2", 3"


Max. working pressure: 147psi (10bar)


Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM


End connections: butt-welded, sanitary clamp, T-type tee, U type tee, Mini type, tank bottom type etc.


Inside polishing: Ra 16-32& micro;in (0.4 ~ 0.8µm)


Diaphragm available: EPDM+PTFE / EPDM / Silicon / FPM (Viton)


Available for CIP/SIP.

Technical Parameters:

Steel material Product wetted parts

AISI 316L / 304 forged

 Provided with material inspection report
Other steel parts AISI 304
Seal material Standard EPDM+PTFE All seal materials comply with FDA 21CFR117.2600
Options VMQ
Pressure Working pressure 0 ~ 10bar (0 ~ 145psi)
Control air pressure 5 ~ 8bar (70 ~ 120psi)
Temperature Working temperature EPDM: 14 ~ 248°F (-10 ~ 120°C)
VMQ: -58 ~ 356°F (-50 ~ +180°C)
FPM: -22 ~ 446°F (-30 ~ +230°C)
Sterilization temperature 302°F (150°C, Max. 20 min)
Surface treatment Inside surface treatment Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment Ra 32 ~ 63µin (0.8 ~ 1.6µm)
Connection The welding diameter Welding ends:
DIN 11850-2 with 11850-1 / SMS / 3A / ISO Series, etc.
End connections: butt-welded, sanitary clamp, T-type, U-type or others upon request.
Pneumatic control Normally Closed (NC) - Air to open and spring to close;
Normally Open (NO) - Air to close and spring to open;
Air to Air (AA) - Air to open, air to close.

1/4'' Hygienic Diaphragm Valve , SP-4M AISI-316L SS Manual Operated Valve
