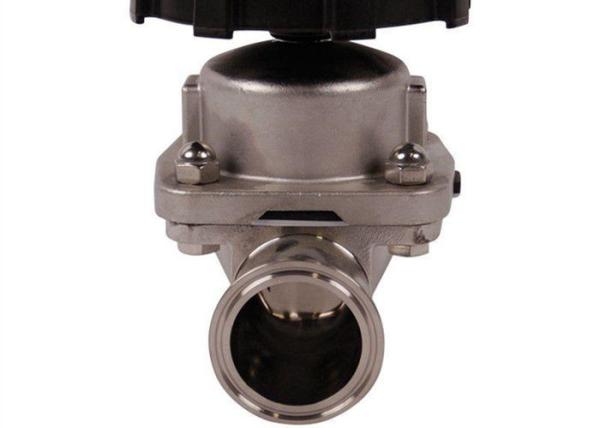

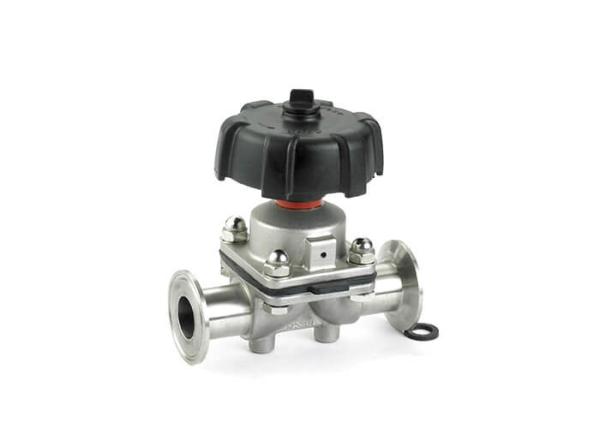

Fast Assembly Sanitary Diaphragm Valves , TP 316L 3 Way Diaphragm Valve
Fast Assembly Sanitary Diaphragm Valves , TP 316L 3 Way Diaphragm Valve
Fast Assembly Sanitary Diaphragm Valves , TP 316L 3 Way Diaphragm Valve
Fast Assembly Sanitary Diaphragm Valves , TP 316L 3 Way Diaphragm Valve
Fast Assembly Sanitary Diaphragm Valves , TP 316L 3 Way Diaphragm Valve
Fast Assembly Sanitary Diaphragm Valves , TP 316L 3 Way Diaphragm Valve
Fast Assembly Sanitary Diaphragm Valves , TP 316L 3 Way Diaphragm Valve
Fast Assembly Sanitary Diaphragm Valves , TP 316L 3 Way Diaphragm Valve
Specifications
Brand Name :
NYHAU
Certification :
3A,CE,ISO,FDA
Place of Origin :
KunShan,China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Mouth
Delivery Time :
5-8 work days
Packaging Details :
Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)
Material :
AISI-316L
Size :
1/4
Application :
Pharmaceutical, WFI, Fine Chemical industries
Specificartion :
3A ASME BPE
Connection End :
Tri Clamp
Valve Body :
AISI 316L
Description

Fast Assembly Sanitary Diaphragm Valves , TP 316L 3 Way Diaphragm Valve

HYHAU can offer All types of sanitary stainless steel flow control equipment for the food & beverage, dairy, cosmetic, biotechnology, pharmaceutical, and electronic processing industries.

The diaphragm provides the body seal as well as the seat seal. There are no paths to the outside environment and, as such, the valve is suitable for aseptic processes. When the valve is being closed, a pressure pad which supports the diaphragm moves towards the sealing face on the body. As the pressure plate moves, the diaphragm flexes and is forced down onto the seat area in the centre of the body, thus, closing off the flow path through the body.


The valve can be actuated either manually or pneumatically and controlled by control units and solenoid valves.


A standard diaphragm valve is used to shut the flow of a line, an NDL type valve shuts only one outlet of the main line.

Applications:

Diaphragm valves, ,manually or pneumatically operated, are specially designed to use on hygienic and aseptic processes in the pharmaceutical industries, The valves is excellent for flow control as well as for on/off duties. Diaphragm valves are widely applied to CIP/SIP.

Specification:


Sizes available from 3/4" to 3" (3/4", 1", 1 1/2", 2" 2 1/2", 3")
DN20-DN80 (DN20, DN25, DN40, DN50, DN65, DN80)


Valve body: AISI 316L.


Valve seat: EPDM+PTFE


Max. working pressure: 145psi (10bar)


Working temperature range: -22 ~ 266°F (-30 ~ 130°C), or higher upon request.


Inside treatment: Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.

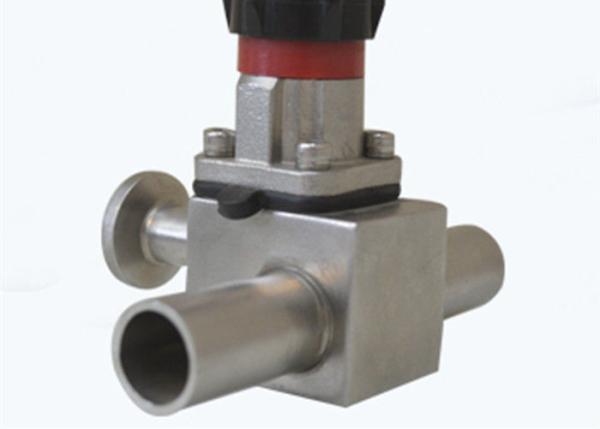

2-way body 3-way body

The diaphragm provides the body seal as well as the seat seal. There are no paths to the outside environment and as such the valve is suitable for aseptic processes.


As the valve is closed a pressure pad which supports the diaphragm moves towards the sealing face on the body. As the pressure plate moves the diaphragm flexes and is forces down onto the seal area in the centre of the body thus closing off the flow path through the body.


The inter-relationship of body to the pressure plate prevents over compression of the diaphragm. The valve can be actuated either manually or pneumatically are controlled by control tops and solenoid valves.

Technical parameters:


Working temperature: -10℃ to +120℃


Parts in contact with the handling material: SS316L,


Other stainless steel parts: SS304


Sizes Range:

DN Size A B C D E L H I
DN15 3/4" 108 66 18 15 65 76.5/85.5 25 10
DN20 118 75 19 22 65 76.5/85.5 25 10
DN25 1" 127 82 25 28 89 93/103.5 28 10
DN32 1 1/4" 146 98.5 31 34 109 107/124.5 36 11
DN40 1 1/2" 160 105.5 37 40 109 107/124.5 39 14
DN50 2" 190 123 49 52 139 129/151.5 46.5 12
DN65 2 1/2" 216 129.5 67 70 200 140/168 55 10

3A Size 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2"
C 15.75 22.1 28.5 34.8 47.5 60.2
D 19.05 25.4 31.8 38.1 50.8 63.5

SMS/ISO Size 19 25 32 38 51 63
C 16.05 22.4 28.8 35.1 47.8 59.5
D 19.05 25.4 31.8 38.1 50.8 63.5


Technical Specifications:

Max.Pressure 10bar(145PSI)
Working Pressure -10°C to +120°C(EPDM)
-14°F to 248°F
+140°C(SIP,MAX.30MIN)284°F

Fast Assembly Sanitary Diaphragm Valves , TP 316L 3 Way Diaphragm Valve
