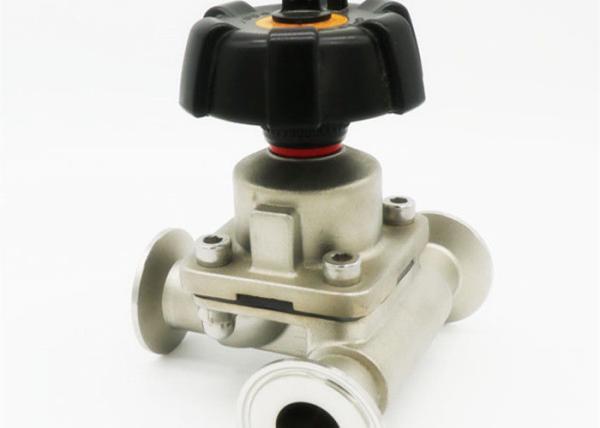

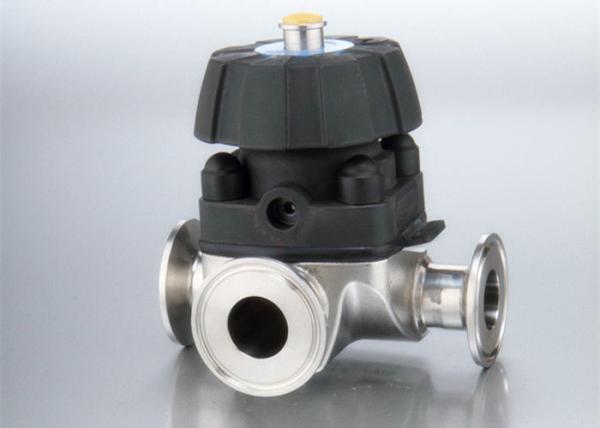

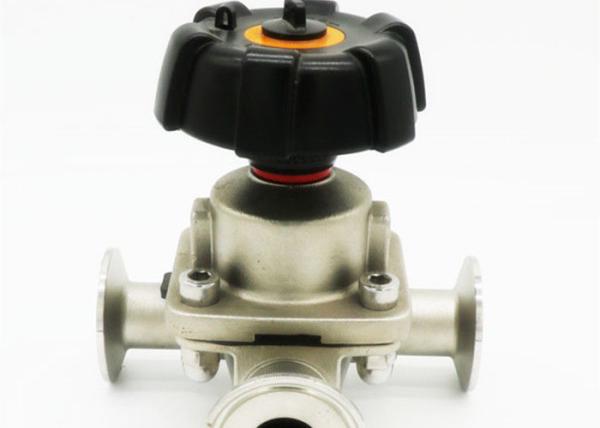

Three Way Manual Diaphragm Valve TP316L Stainless Steel Material For Beverage

Descriptions:

This sanitary diaphragm valve made of stainless steel either 316L, Surface finishing 180 Grit ID/ 150 Grit OD, combined with an envelope diaphragm PTFE filled with EPDM or VITON upon request, clamp ends. It has a maximum operating pressure rating 140 (psi depending on the valve size) at 70 degrees F ambient temperature. It is suitable for use in the food, beverage, biotech, pharmaceutical, and other hygienic applications. When purchasing fittings, consider the application, as this will affect material type, shape, size, pressure drop and required durability.

Features:

Valve body:SS316L, Body is made from investment casting ASTM 351.Forged body can be supplied on request.

Size :3/4″ to 4″ DN15-DN100

Also available in Mini type: DN6, DN8, DN10,

Membrane:PTFE+EPDM,SILICONE,EPDM.FDA certificated

Operation: Manual Type,Pneumatic actuated

Connections: Clamped,Butt-weld,female,male

Working temp: EPDM(-40 ℃ ~120 ℃) PTFE(-25 ℃~180℃)

Working pressure: Max 10 Bar

Surface: internal mirror polished Ra<0.4μm External-Sand Blasted

HYHAU supply other ranges of hygienic diaphragm valves,such as three way diaphragm valve,U type diaphragm valve, T type diaphragm valve,pneumatic diaphragm valves,two way clamped diaphragm valve.

Sizes Range:

Quality Assurance:

1. Material Controlled & Machined Precisely.
2. Easily welded
3. Quickly fit up
4. High corrosion resistant
5. Long service life
6. Safety Stock System.
7. Well packaged
8. Fast delivered
9. Surface Finish: #180 Grit, #320 Grit

Applications:

HYHAU's stainless steel sanitary valves are applicable to a wide range of manufacturing industries:

1. Bio-Pharm

2. Food

3. Beverage

4. Dairy
