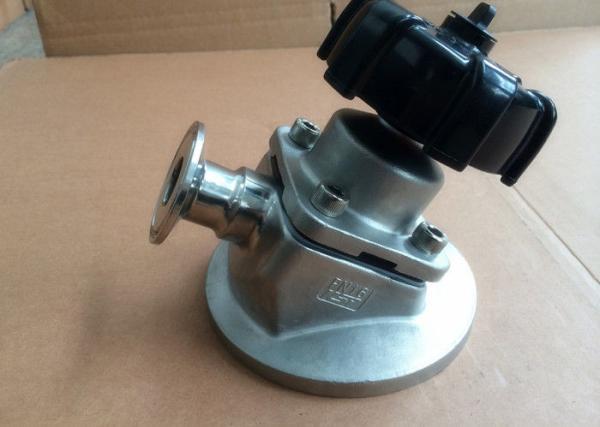

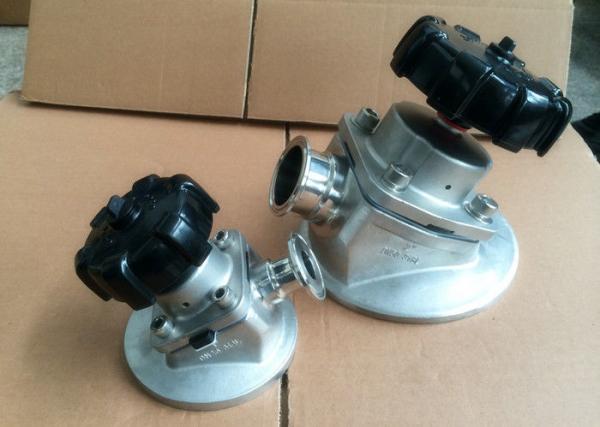

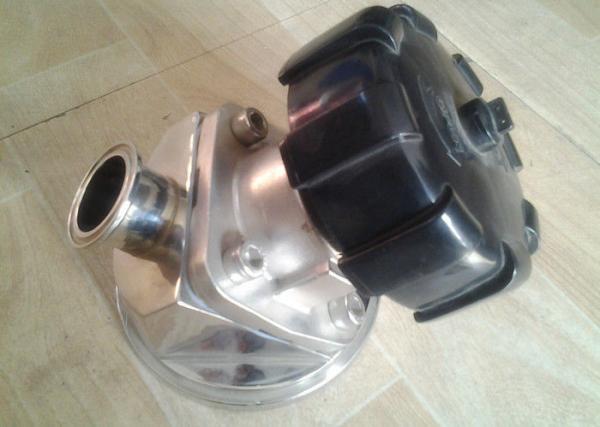

Aseptic Sanitary Diaphragm Valves Tri Clamp Tank Bottom Valve With Low Turbulence

Sanitary diaphragm valve are made from stainless steel SS316, and come with double gaskets: EPDM and PTFE. The sanitary design allows precise control of the fluid flow rate with low turbulence and minimal back pressure.Tank bottom valve, with its conical profile allows for complete drainability and the prevention of deadlegs or entrapment areas. These valves are installed by either bolting or welding to the tank surface. Our tank bottom valves are available in sizes ranging from 1/4” through 4”, are manufactured using type SA-479 316L stainless steel and are available with a wide variety of drain ports and end connections. Positive closure can be achieved by means of manual or pneumatic actuation.

HYHAU offers many surface finish option to meet your specifications. In addition, heat number are etched into the body providing full traceability with mill test summaries provided.

45° outlet – standard

Specifications:


Standard Sizes:
1/2"–4" (DN 15–100)


Materials:
316L Stainless Steel Bar Stock ASME SA-479
(UNS S31603), 1/2"–4" (DN 15–100)


Tank Connection:
The tank interface surface is designed for a weld attachment. However, ANSI flanges can be ordered upon special request.


Drain Port End Connections:
Standard outlet port is on a 30° angle. 45° angle is available upon special request.


Buttweld:
• 14, 16 Gauge O.D. Tubing, dependent on size.
• Schedule 5, 10, and 40 Pipe


Quick Disconnect
• Tri-Clover Tri-Clamp

Technical Details:

Steel Material Product wetted steel parts AISI 316L Provided with material inspection report
Other steel parts AISI 304
Seal Material Standard EPDM+PTFE All seal materials comply with FDA 21CFR177.2600
Option EPDM, FPM, Silicone,
Pressure Working Pressure 0-145psi (0-10bar)
Supply pressure for air actuator Min.- Max.: 5~8bar (70-116 PSI)
Temperature Working temperature -4° F to 302° F (-20°C to 150°C)
Surface Treatment Inside surface treatment Ra 16-32 µ in (0.4-0.8 µm)
Outside surface treatment Sand blast or mirror
Connection End connections: Sanitary Clamp, Flanged, or others upon request

Drive Model: Manual type plastic turning knob
Size: DN25 ~ 50 or other size on request
Steel Material: 316L, hygienic design
Diaphragm Material: EPDM or EPDM + PTFE
Max. Working Pressure: 6 ~ 10 bar
Working Temperature: 90 ºC ~ 150ºC
Connection End Tri Clamp
Surface Treatment: Rg 0.4 ~ 0.6µm or electrolysis process
Clamp Standards: SMS 3017, DIN 11864, DIN 11853, DIN32676, BS 4825, ISO 2852
Application: Pharmaceutical, WFI, Fine Chemical industries
