Specifications
Brand Name :
BOZEX
Model Number :
BZX.S1201-M8-12
Certification :
ISO9001, DIN7982 , DIN7983
Place of Origin :
SHENZHEN CHINA
MOQ :
1000PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50Million pcs per day
Delivery Time :
5-8working days
Packaging Details :
box size: 20cm*20cm*10cm
Key Words :
304 Stainless Steel Weld Head Screws
Original Material :
Alloy Steel, 304 Stainless Steel, Carbon Steel
Application :
electrical equipment, Cars
Screw Type :
Thumb
Color :
Weld Head Type
Port :
Shenzhen, Ningbo, Shanghai
Description

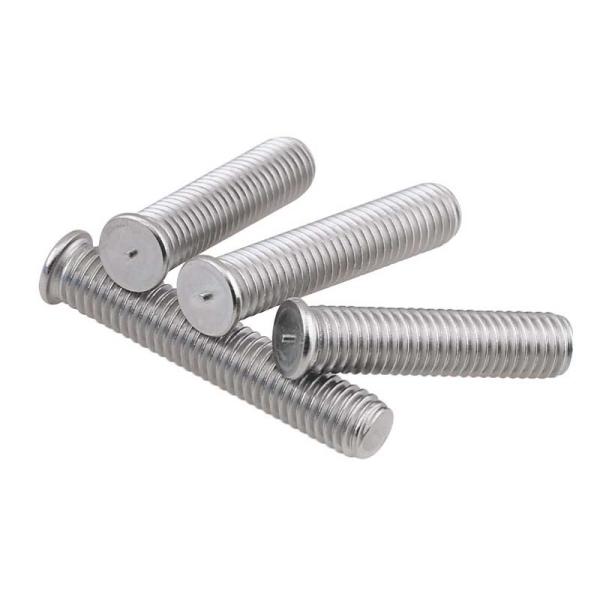

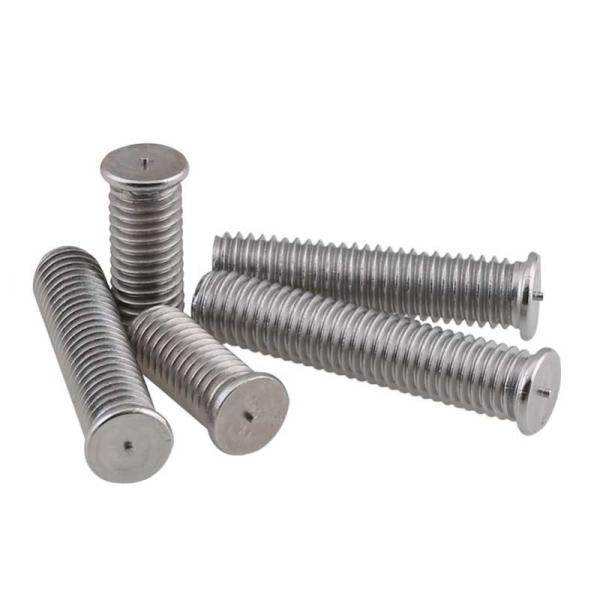

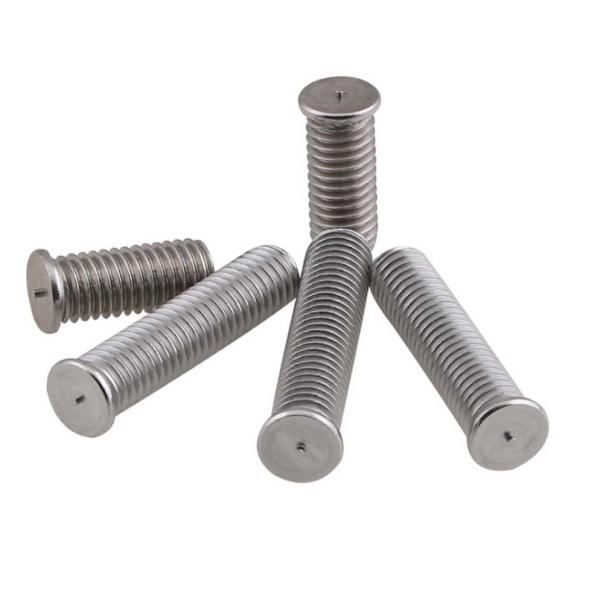

304 Stainless Steel Weld Head Screws Of Size M8 For Automation Equipment
Quick Details
Name: 304 Stainless Steel Weld Head Screws
Material: Alloy, 304 Stainless Steel, 316 Stainless Steel, 201 Stainless Steel
Screw Size: M5, M6, M8 Length : 10 - 50mm
Service: OEM, ODM Trade term: FOB/EXW/CIF
Shipping Way: Air, Boat, Train, FEDEX, UPS, DHL
Packaging: Inner Small box + carton box + Pallet

Products Description

304 Stainless Steel Weld Head Screws, also known as flat machine screws, flat head screws, their head is a 90-degree cone, similar to common wood screws, the head has a tool tightening groove, a flat, cross, hexagon, etc. .

Screws play the role of connecting two or more objects. They are indispensable in daily life or industrial manufacturing. There are countersunk head bolts (slotted) and countersunk head bolts (with tenon).


304 Stainless Steel Weld Head Screws are mostly used after installation, the surface of the parts can not be raised, and the fastened parts have two thicknesses, the so-called thick, which means that the thickness of the fastened part is greater than the thickness of the head of the countersunk screw Thickness. After the screw is tightened, there is still a part of the screw thread that does not enter the threaded hole. In this case, the countersunk screw can definitely be tightened.

304 Stainless Steel Weld Head Screws Drawing and Parameter
304 Stainless Steel Head Screws M6 M8 DIN7983 Weld Flat Head Machine Screws 10-50mm

Size Code Dia. H. Lg.
M3 x 30 BZX.S1201-M3-30 4.65 1.3 30
M3 x 25 BZX.S1201-M3-25 4.65 1.3 25
M3 x 20 BZX.S1201-M3-20 4.65 1.3 20
M3 x 16 BZX.S1201-M3-16 4.65 1.3 16
M3 x 12 BZX.S1201-M3-12 4.65 1.3 12
M3 x 10 BZX.S1201-M3-10 4.65 1.3 10
M3 x 8 BZX.S1201-M3-8 4.65 1.3 8
M3 x 6 BZX.S1201-M3-6 4.65 1.3 6
M4 x 40 BZX.S1201-M4-45 5.65 1.3 40
M4 x 35 BZX.S1201-M4-35 5.65 1.3 35
M4 x 30 BZX.S1201-M4-30 5.65 1.3 30
M4 x 25 BZX.S1201-M4-25 5.65 1.3 25
M4 x 20 BZX.S1201-M4-20 5.65 1.3 20
M4 x 16 BZX.S1201-M4-16 5.65 1.3 16
M4 x 12 BZX.S1201-M4-12 5.65 1.3 12
M4 x 10 BZX.S1201-M4-10 5.65 1.3 10
M4 x 8 BZX.S1201-M4-8 5.65 1.3 8
M4 x 6 BZX.S1201-M4-6 5.65 1.3 6
M5 x 50 BZX.S1201-M5-50 6.68 1.4 50
M5 x 40 BZX.S1201-M5-45 6.68 1.4 40
M5 x 35 BZX.S1201-M5-35 6.68 1.4 35
M5 x 30 BZX.S1201-M5-30 6.68 1.4 30
M5 x 25 BZX.S1201-M5-25 6.68 1.4 25
M5 x 20 BZX.S1201-M5-20 6.68 1.4 20
M5 x 16 BZX.S1201-M5-16 6.68 1.4 16
M5 x 12 BZX.S1201-M5-12 6.68 1.4 12
M5 x 10 BZX.S1201-M5-10 6.68 1.4 10
M5 x 8 BZX.S1201-M5-8 6.68 1.4 8
M6 x 50 BZX.S1201-M6-50 7.68 1.4 50
M6 x 45 BZX.S1201-M6-45 7.68 1.4 45
M6 x 40 BZX.S1201-M6-40 7.68 1.4 40
M6 x 35 BZX.S1201-M6-35 7.68 1.4 35
M6 x 30 BZX.S1201-M6-30 7.68 1.4 30
M6 x 25 BZX.S1201-M6-25 7.68 1.4 25
M6 x 20 BZX.S1201-M6-20 7.68 1.4 20
M6 x 16 BZX.S1201-M6-16 7.68 1.4 16
M6 x 12 BZX.S1201-M6-12 7.68 1.4 12
M6 x 10 BZX.S1201-M6-10 7.68 1.4 10
M6 x 8 BZX.S1201-M6-8 7.68 1.4 8
M8 x 50 BZX.S1201-M8-50 9.72 1.5 50
M8 x 45 BZX.S1201-M8-45 9.72 1.5 45
M8 x 40 BZX.S1201-M8-40 9.72 1.5 40
M8 x 35 BZX.S1201-M8-35 9.72 1.5 35
M8 x 30 BZX.S1201-M8-30 9.72 1.5 30
M8 x 25 BZX.S1201-M8-25 9.72 1.5 25
M8 x 20 BZX.S1201-M8-20 9.72 1.5 20
M8 x 16 BZX.S1201-M8-16 9.72 1.5 16
M8 x 12 BZX.S1201-M8-12 9.72 1.5 12
