304 Stainless Steel Head Screws Slotted Pan Head Machine Screw M1.6 3-60mm DIN7982
304 Stainless Steel Head Screws Slotted Pan Head Machine Screw M1.6 3-60mm DIN7982
304 Stainless Steel Head Screws Slotted Pan Head Machine Screw M1.6 3-60mm DIN7982
304 Stainless Steel Head Screws Slotted Pan Head Machine Screw M1.6 3-60mm DIN7982
304 Stainless Steel Head Screws Slotted Pan Head Machine Screw M1.6 3-60mm DIN7982
304 Stainless Steel Head Screws Slotted Pan Head Machine Screw M1.6 3-60mm DIN7982
304 Stainless Steel Head Screws Slotted Pan Head Machine Screw M1.6 3-60mm DIN7982
304 Stainless Steel Head Screws Slotted Pan Head Machine Screw M1.6 3-60mm DIN7982
Specifications
Brand Name :
BOZEX
Model Number :
BZX.S090801-M8-60
Certification :
ISO9001, DIN7982 , DIN7983
Place of Origin :
SHENZHEN CHINA
MOQ :
1000PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50Million pcs per day
Delivery Time :
5-8working days
Packaging Details :
box size: 20cm*20cm*10cm
Key Words :
304 Stainless Steel Pan Head Slotted Screws
Material :
304 Stainless Steel, Alloy Steel
Application :
Machine, Industry, Building, Lamps, electrical equipment
Function :
The surface of the mounting hole on the connector
Thread Size(T) :
M1.6 To M10
Sample :
Free sample provided
Color :
Natural, Black Oxide
Packaging :
Inner Box + Carton Box + Pallet
Description

304 Stainless Steel Pan Head Slotted Screws

Quick Details

Name: 304 Stainless Steel Pan Head Slotted Screws

Material: 304 Stainless Steel, 316 Stainless Steel, 201 Stainless Steel

Size: M1.6 to M10 Length : 3 - 60mm

Service: OEM, ODM Trade term: FOB/EXW/CIF

Shipping Way: Air, Boat, Train, FEDEX, UPS, DHL

Products Description

Head screws, also known as flat machine screws and flat head screws, have a 90-degree cone on the head, which is similar to common wood screws. The head has a tool-tightening groove, such as a flat, cross, hexagon, etc. .

Screws play the role of connecting two or more objects. They are indispensable in daily life or industrial manufacturing. There are countersunk head bolts (slotted) and countersunk head bolts (with tenon).

304 Stainless Steel Pan Head Slotted Screws Shape
Cylindrical head. Half-sunk head. Sink head. Spherical cylindrical head. Pan head. Half round head. Hex Head.

On the surface of the mounting hole on the connecting piece, a 90-degree cone-shaped round socket is processed, and the head of the flat machine screw is in the round socket and is flush with the surface of the connecting piece. Flat machine screws are also used in some occasions with half-round head flat machine screws. These screws are more beautiful and are used in places where a little protrusion can be allowed on the surface.

When purchasers place orders for countersunk head screws, some of them are expressed directly in Chinese, and some professional purchasers generally use national codes or specific letters to express them. For countersunk screws, use letters to replace KM, FM, KA and so on.

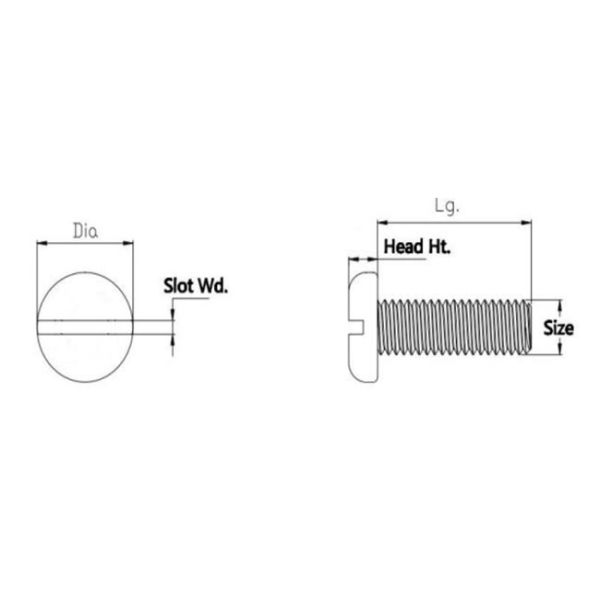

304 Stainless Steel Pan Head Slotted Screws Drawing and Parameter

304 Stainless Steel Head Screws Slotted Pan Head Machine Screw M1.6 3-60mm DIN7982

Size Code Slot Wd. Dia Lg. Ht.
M1.6 x 3 BZX.S090801-M1.6-3 0.6 3.2 3 1
M1.6 x 4 BZX.S090801-M1.6-4 0.6 3.2 4 1
M1.6 x 5 BZX.S090801-M1.6-5 0.6 3.2 5 1
M1.6 x 6 BZX.S090801-M1.6-6 0.6 3.2 6 1
M1.6 x 8 BZX.S090801-M1.6-8 0.6 3.2 8 1
M1.6 x 10 BZX.S090801-M1.6-10 0.6 3.2 10 1
M1.6 x 12 BZX.S090801-M1.6-12 0.6 3.2 12 1
M1.6 x 14 BZX.S090801-M1.6-14 0.6 3.2 14 1
M1.6 x 16 BZX.S090801-M1.6-16 0.6 3.2 16 1
M2 x 3 BZX.S090801-M2-3 0.7 4 4 1.3
M2 x 4 BZX.S090801-M2-4 0.7 4 4 1.3
M2 x 5 BZX.S090801-M2-5 0.7 4 5 1.3
M2 x 6 BZX.S090801-M2-6 0.7 4 6 1.3
M2 x 8 BZX.S090801-M2-8 0.7 4 8 1.3
M2 x 10 BZX.S090801-M2-10 0.7 4 10 1.3
M2 x 12 BZX.S090801-M2-12 0.7 4 12 1.3
M2 x 14 BZX.S090801-M2-14 0.7 4 14 1.3
M2 x 16 BZX.S090801-M2-16 0.7 4 16 1.3
M2 x 18 BZX.S090801-M2-18 0.7 4 18 1.3
M2 x 20 BZX.S090801-M2-20 0.7 4 20 1.3
M2 x 22 BZX.S090801-M2-22 0.7 4 22 1.3
M2 x 25 BZX.S090801-M2-25 0.7 4 25 1.3
M3 x 4 BZX.S090801-M3-4 1 5.6 4 1.8
M3 x 5 BZX.S090801-M3-5 1 5.6 5 1.8
M3 x 6 BZX.S090801-M3-6 1 5.6 6 1.8
M3 x 8 BZX.S090801-M3-8 1 5.6 8 1.8
M3 x 10 BZX.S090801-M3-10 1 5.6 10 1.8
M3 x 12 BZX.S090801-M3-12 1 5.6 12 1.8
M3 x 14 BZX.S090801-M3-14 1 5.6 14 1.8
M3 x 16 BZX.S090801-M3-16 1 5.6 16 1.8
M3 x 18 BZX.S090801-M3-18 1 5.6 18 1.8
M3 x 20 BZX.S090801-M3-20 1 5.6 20 1.8
M3 x 22 BZX.S090801-M3-22 1 5.6 22 1.8
M3 x 25 BZX.S090801-M3-25 1 5.6 25 1.8
M3 x 30 BZX.S090801-M3-30 1 5.6 30 1.8
M3 x 35 BZX.S090801-M3-35 1 5.6 35 1.8
M3 x 40 BZX.S090801-M3-40 1 5.6 40 1.8
M3 x 45 BZX.S090801-M3-45 1 5.6 45 1.8
M3 x 50 BZX.S090801-M3-50 1 5.6 50 1.8
M8 x 10 BZX.S090801-M8-10 2.31 16 10 4.8
M8 x 12 BZX.S090801-M8-12 2.31 16 12 4.8
M8 x 14 BZX.S090801-M8-14 2.31 16 14 4.8
M8 x 16 BZX.S090801-M8-16 2.31 16 16 4.8
M8 x 18 BZX.S090801-M8-18 2.31 16 18 4.8
M8 x 20 BZX.S090801-M8-20 2.31 16 20 4.8
M8 x 22 BZX.S090801-M8-22 2.31 16 22 4.8
M8 x 25 BZX.S090801-M8-25 2.31 16 25 4.8
M8 x 30 BZX.S090801-M8-30 2.31 16 30 4.8
M8 x 35 BZX.S090801-M8-35 2.31 16 35 4.8
M8 x 40 BZX.S090801-M8-40 2.31 16 40 4.8
M8 x 45 BZX.S090801-M8-45 2.31 16 45 4.8
M8 x 50 BZX.S090801-M8-50 2.31 16 50 4.8
M8 x 55 BZX.S090801-M8-55 2.31 16 55 4.8
M8 x 60 BZX.S090801-M8-60 2.31 16 60 4.8
M10 x 20 BZX.S090801-M10-20 2.81 20 20 6
M10 x 30 BZX.S090801-M10-30 2.81 20 30 6
M10 x 35 BZX.S090801-M10-35 2.81 20 35 6

Why Choose us?
1. Our company have more than 15 years experience in the Stainless Steel Screws field.
2. We have Professional experienced engineers, sales and overseas engineers.
3. We have automatically generate machines produce the screws, Bolts, Nuts, Washers and so on .
4. Our high productivity can make sure your quickly delivery time.
