DIN571 Stainless Steel Hexagon Head Self-Tapping Screw Wood Screw

Quick Details:

Hex head wood Screw
1) Standard of Hex head Wood Screw: DIN571, ANSI/ASME. BSW, ISO, etc
2) Material of hex head wood screw: Carbon Steel, Stainless steel, Aluminium, Brass.
3) Diameter of hex head wood screw: M6~M16, 1/4"~3/4"
4) Length of hex head wood screw: 25~280mm, 1"~8"
5) Finish of hex head wood screw: Plain, zinc, black phosphated, grey phosphated, nickel, dacroment
6) Packing of hex head wood screw: Small Box, in carton, 36 cartons per pallet

A2 A4 Stainless Steel SS304 SS316 Hex Hexagon Head Self Tapping Coach Lag Wood Screw (DIN571)

A screw, or bolt, is a type of fastener, typically made of metal, and characterized by a helical ridge,known as a male thread (external thread) or just thread, wrapped around a cylinder. Some screwthreads are designed to mate with a complementary thread, known as a female thread (internal thread),often in the form of a nut or an object that has the internal thread formed into it.

Other screwthreads are designed to cut a helical groove in a softer material as the screw is inserted. The most commonuses of screws are to hold objects together and to position objects.A screw will almost always have ahead on one end which contains a specially formed shape that allows it to be turned, or driven, with atool. Common tools for driving screws include screwdrivers and wrenches. The head is usually largerthan the body of the screw, which keeps the screw from being driven deeper than the length of thescrew and to provide a bearing surface.

There are exceptions; for instance, carriage bolts have adomed head that is not designed to be driven; set screws often have a head smaller than the outerdiameter of the screw; J-bolts have a J-shaped head which is not designed to be driven, but rather isusually sunk into concrete allowing it to be used as an anchor bolt. The cylindrical portion of the screwfrom the underside of the head to the tip is known as the shank; it may be fully threaded orpartially threaded.

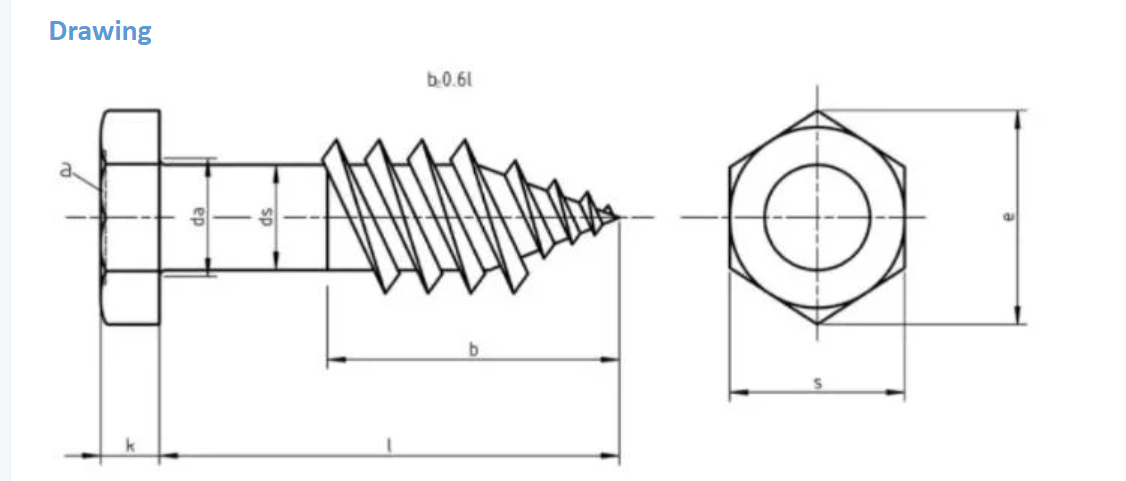

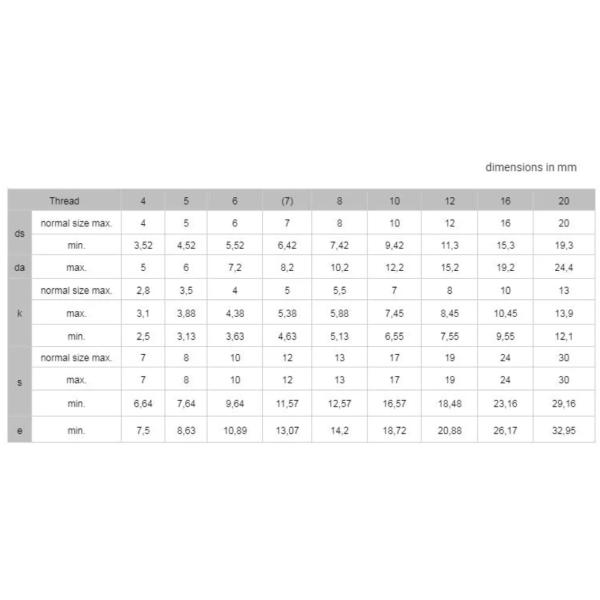

Parameters and Drawing

Bolt din933, din931, din7990, din6922, Hex bolt , carriage bolt, heavy hex bolt, flange head bolt, achor bolt ect
Rod threaded rod din976, threaded bar din975 stud bolt, B7 stud bolt ect
Nut din934, hex heavy hex nut, flange bolt, cap nut, nylon nut, ect
Screw hex screw, self drilling screw, self tapping screw, drywall screw, pan head screw, button head screw, machine screw, wood screw, ect
washer :flat washer, spring washer, lock washer,square washer,spring lock washer, plain washer ect
Stamping Parts
