Specifications
Brand Name :
Fulilai
Place of Origin :
China
MOQ :
1tons
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability :
100000 Tons per Month
Delivery Time :
15-21days
Packaging Details :
Sea-worthy Package
Name :
Galvanized Steel Sheet coil plate
Thickness :
0.12-4.5mm
Tolerance :
±10%
Standard :
ASTM,AISI,JIS,DIN,GB
Surface :
BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D
Processing Service :
Decoiling, Cutting, Punching
Grade :
300 Series
Hard :
Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Form :
Coils, Strip etc.
Technique :
Cold Rolled
Special Use :
High-strength Steel Plate
Application :
Construction,Kitchenware,Medical instruments,Industry,Decoration
MOQ :
5 tons
Payment :
T/T 30% Advanced, Balance against BL Copy
Packing :
Standard Seaworthy Packaging
Delivery :
10-15 days
Price term :
FOB CIF EXW
Description

Steel Galvanized Coils DX51D Z100 Galvanized Steel Strips Coil

Galvanized steel is to prevent the steel plate surface from corrosion to extend its service life, in the steel plate surface coated with a layer of metal zinc, the zinc coated steel plate are called galvanized sheet.

ASTM A240 TP304 GI Coils, ASME SA 240 GI 304 Coils, Austenitic GI Steel 304 Coils at Best Price, GI Steel 304 Hot Rolled Coils, GI 304 Bright Annealed Coils, BA Finish GI Steel 304 Coils, GI Steel 304 Jindal Make Coils, GI 304 Industrial Strips & Coils, 2B Finish GI 304 Coil, GI 304 Precision Slit Coils Dealer, 304 GI Steel CR Coils, GI 304 Wide Coils Exporter in China, Galvanized 304 Steel Sheet, Galvanized 304 Steel Coils.


DX51D Z100 Galvanized Steel Strip Coil 300 Series Grade BA 2B Surface

Shandong Fulilai Steel Group is a leading supplier of galvanized steel sheet & coil. Galvanized steel is defined as a carbon steel sheet coated with zinc on both sides. There are two main processes used to produce galvanized steel: continuous hot dipping and electro-galvanizing.
The hot dipping process consists of passing the steel through a bath of molten zinc, while the electro-galvanizing process consists of the application of zinc through electrolytic disposition. The result is a layer of zinc tightly adhering to the base metal through an iron-zinc bonding layer.
A zinc coating is one of the most effective and economical methods of protecting bare steel from a corroding environment. The zinc not only serves as a barrier between the steel and the environment, but it will also sacrifice itself to protect the underlying steel sheet. Sacrificial or galvanic protection occurs when two dissimilar metals are in contact and coupled with water and oxygen. Zinc corrodes preferentially to the iron in steel. This protection prevents corrosion of the steel at areas not covered with zinc. Thus, the spread of corrosion from cut edges, drill holes, etc. is minimized.

Specification of GI Sheet&Coils&Plate

Product Name
Galvanized Steel Coil,Galvanised Steel Coil,Zinc Coated Steel Coil,GI,HDGI
Galvalume Steel Coil,Aluzinc Steel Coil,Zinc Aluminum Steel Coil,GL,HDGL
Standard
EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
Steel Grade
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD,
S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or As Requirement
Type
Coil/Sheet/Plate/Strip
Material
CGCC/SGCH/G350/G450/G550/DX51D/DX52D/DX53D
Thickness
0.12mm-4.0mm or 0.8mm/1.0mm/1.2mm/1.5mm/2.0mm
Width
600mm-1500mm or 914mm/1000mm/1200mm/1219mm/1220mm
Zinc Coating
Z30g/m2-Z350g/m2
Surface Structure
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
Coil Weight
3 Tons -8Tons
Coil ID
508mm/610mm

STEEL GRADE CHEMICAL COMPOSITION % MECHANIC PROPERTY C.B OF COATING
C Si Mn S P T.S Y.S E.L COATING
x103 x103 x102 x103 x103 Mpa Mpa % d=0 180° G/M²
JIS G3302 SGCC 12 30 41 31 21 480 300 13 OK Z60-150
JIS G3302 SGCH 12 10 21 18 8 680 650 20 OK Z60-150
ASTM A653 CS.B 29 30 60 35 30 386 250-380 20 OK Z60-275
DX51D+Z 20 21 18 1.8 11 355 245 38 OK Z60-275
G550 12 6 73 5 17 715 654 8 OK Z60-275

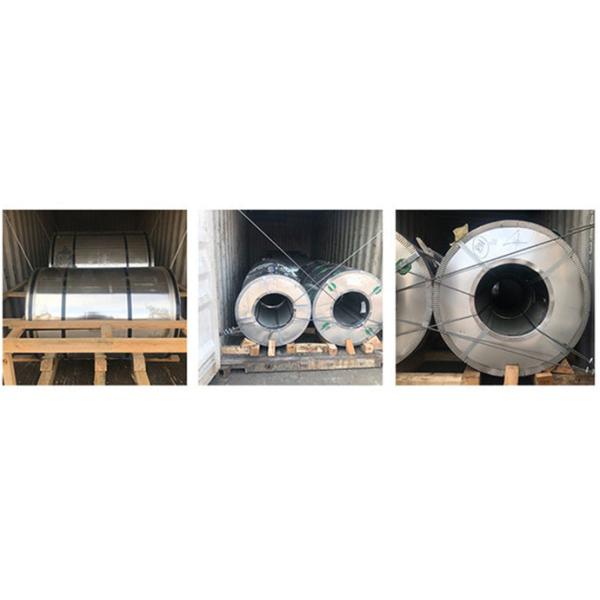

Packing&Shipping

DX51D Z100 Galvanized Steel Strip Coil 300 Series Grade BA 2B Surface

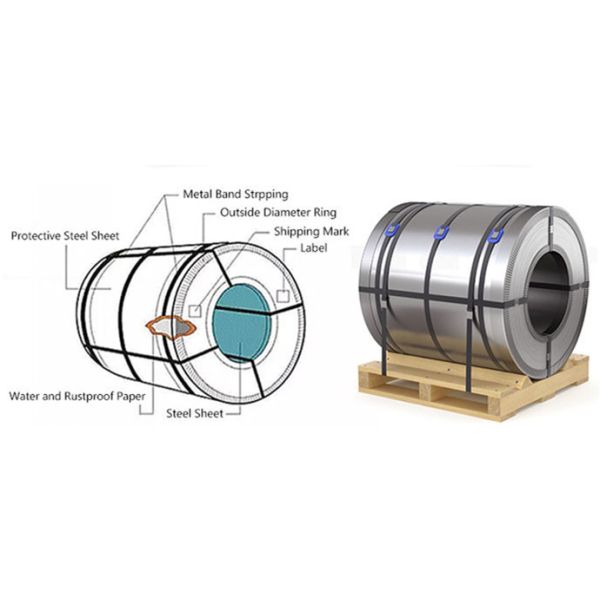

Packing:3 layers of packing, inside is kraft paper, water plastic film is the middle and outside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve.

DX51D Z100 Galvanized Steel Strip Coil 300 Series Grade BA 2B Surface

Loading Port: Tianjin/Qingdao/Shanghai Port.

Applications of GI Sheet&Coils&Plate

Construction industry: roof sheet/panel, roof components,balcony window,newsstands,warehouse,rolling door,heaters,drainage etc.

Household application: refrigerators,washing machines,switch cabinet,air conditioning,microwave oven,bread machine etc.

Furniture industry: lampshade,wardobe,desk,bookcase,counter,medical equipment etc.

Transportation industry: cars,cars shell,tractor,container ship,shipbuilding.highway fence,ships bulkhead etc.
