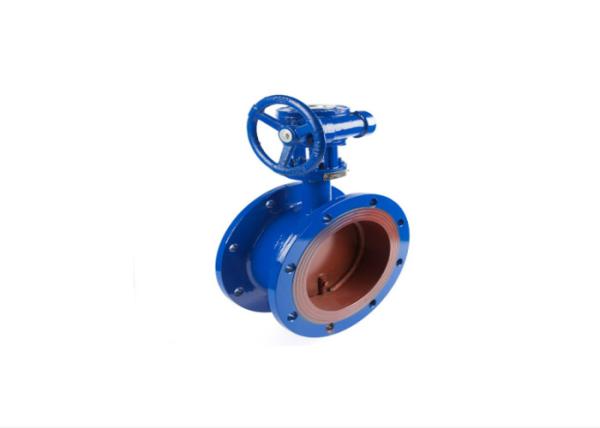

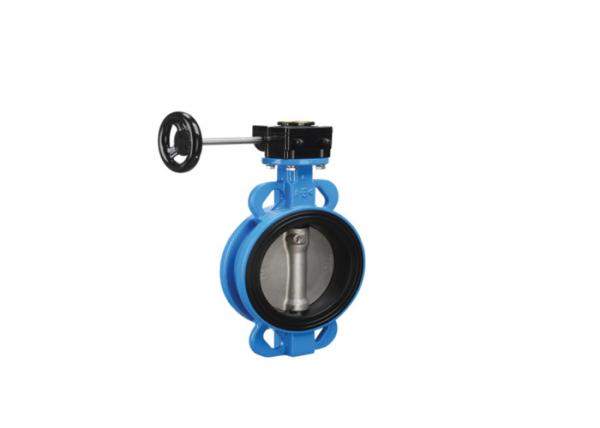

Custom Dn65 Dn800 Plastic PPH Seal Wafer Worm Gear Type Butterfly Valve For Cement Silo
Custom Dn65 Dn800 Plastic PPH Seal Wafer Worm Gear Type Butterfly Valve For Cement Silo
Custom Dn65 Dn800 Plastic PPH Seal Wafer Worm Gear Type Butterfly Valve For Cement Silo
Custom Dn65 Dn800 Plastic PPH Seal Wafer Worm Gear Type Butterfly Valve For Cement Silo
Custom Dn65 Dn800 Plastic PPH Seal Wafer Worm Gear Type Butterfly Valve For Cement Silo
Custom Dn65 Dn800 Plastic PPH Seal Wafer Worm Gear Type Butterfly Valve For Cement Silo
Custom Dn65 Dn800 Plastic PPH Seal Wafer Worm Gear Type Butterfly Valve For Cement Silo
Custom Dn65 Dn800 Plastic PPH Seal Wafer Worm Gear Type Butterfly Valve For Cement Silo
Custom Dn65 Dn800 Plastic PPH Seal Wafer Worm Gear Type Butterfly Valve For Cement Silo
Custom Dn65 Dn800 Plastic PPH Seal Wafer Worm Gear Type Butterfly Valve For Cement Silo
Specifications
Brand Name :
TOBO
Model Number :
/
Certification :
CE/ISO
Place of Origin :
CHINA
MOQ :
1PCS
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000pcs/month
Delivery Time :
15workdays
Packaging Details :
Valves are wrapped in plastic bubble sheet & in plywood boxes
Application :
Water, Oil, Gas, etc.
Body Material :
Carbon Steel, Stainless Steel, Alloy Steel
Certificate :
ISO 9001, CE, etc.
Connection Type :
Wafer, Lug, Flange
Design Standard :
API 609, MSS SP-67, etc.
Disc Material :
Carbon Steel, Stainless Steel, Alloy Steel
End Connection :
ANSI, DIN, JIS, etc.
Operation Type :
Manual, Electric, Pneumatic
Pressure Rating :
150-300 psi
Seat Material :
EPDM, PTFE, Nylon, etc.
Size :
2-24 inch
Temperature Range :
-20℃~+180℃
Testing Standard :
API 598, API 6D, etc.
Valve Type :
Wafer Butterfly Valve
Warranty :
1 Year
Description

Custom dn65 dn800 Plastic PPH Seal Wafer Worm Gear Type Butterfly Valve For Cement Silo

Fingure: B5000F
Size : 2"-36"
Design Standard : API 609-83
Face to Face : ANSI B16.10
Flange Drilling : ANSI B16.5
Application
characteristic is :due to use three eccentric configuration, hermetic capability reliably,
which ensure disc never touch sealing seat when it start, solve the problem of
hermetical seat burden unequally,prolong service life, and ensure reliable hermetic
advantage capability with of high temperature resistant, wearable,antisepsis etc.

Specification
Structre type:double flanged three eccenticity
Design standard:API609-83
flange connection dimension:ANSI B 16.5
Flange drilling:ISO5211.
Structure length:ANSI B 16.10-1992
Pressure test:API 598-82

Materials
Custom Dn65 Dn800 Plastic PPH Seal Wafer Worm Gear Type Butterfly Valve For Cement Silo

BodyWCB,CF8M　
DiseWCB,CF8M
Stem416 〿〿Cr13〿Cr18Ni9Ti　
Seal ring316,Fluorine plastic
PackingFlesxible graphite,fluorine plastic　

Dimensions

API 150LB Series
DNLHH2DD1D2Mn-φd1
50108110345152120.592M184-19
80114125380190152.5127M184-19
100127145415229190.5157M188-19
125140165455254216186M208-22
150140175545279241.5216M208-22
200150210645343298.5270M208-22
250160250695406362324M2412-25
300178285830483432381M2412-25
350190320900533476413M2716-29
400216355980597540470M2716-29
4502223801030635578533M3016-32
5002294151110699635584M3020-32
6002674751305813749.5692M3320-35
7502925801525985914857M3328-35
80031863015851060978914M3928-41
9003306801765116810851022M3932-41

API 300LB Series
DNLHH2DD1D2Mn-φd1
5010811034516512792M188-19
80114125380210168127M208-22
100127145415254200157M208-22
125140165455279235186M208-22
150140175545318270216M2012-22
200150210645381330270M2412-26
250160250695445387324M2716-29
300178285830521451381M3016-32
350190320900584514413M3020-32
400216355980648571470M3320-35
4502223801030711628533M3324-35
5002294151110775686584M3324-35
6002674751305914813692M3924-41
75029258015251092997857M4528-49
9003306801765127011681022M5032-53
