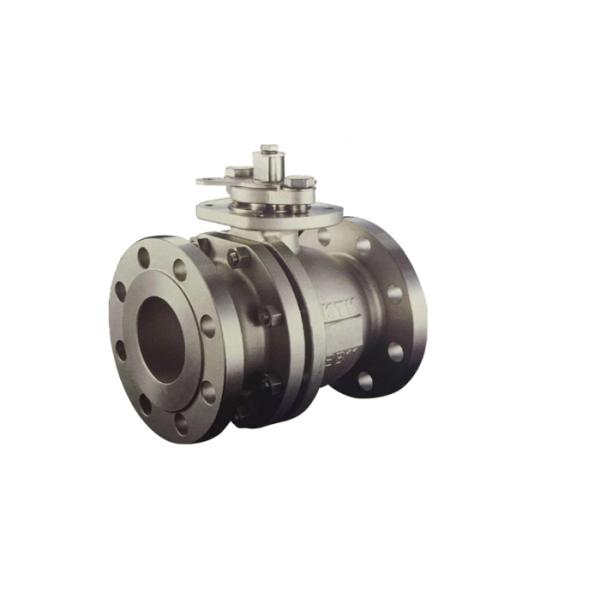

Class 800LB Stainless Steel Ball Valve
Class 800LB Stainless Steel Ball Valve
Class 800LB Stainless Steel Ball Valve
Class 800LB Stainless Steel Ball Valve
Specifications
Brand Name :
TOBO
Model Number :
Ball Valve
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1pc
Price :
1-100
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100pcs one day
Delivery Time :
2-3days
Packaging Details :
Inner package:plastic bag sealed package Outer package:carton package or wooden case package The lettering, nameplate, certificate for cryogenic valves are available We can customize the package for globe valve;
Key word1 :
3 Way Ball Valve Stainless Steel
MOQ :
1pc
Nominal Pressure :
customize pressure
Logo :
customize logo
Description

Flanged Floating 3 Way Ball Valve Stainless Steel Stainless Steel 304 316

First, the product structure and properties

Description
ball valve using four seats, integrated structure.

Applicable
At the confluence of liquids, gases, powders and other media, streaming and distribution. Its effortless operation and easy maintenance. Applicable to the petroleum, chemical, power and other corporate sector delivery on pipes, tanks, container equipment all kinds of gas, liquid

Product Description
Material A105/customize
Working Pressure Class800LB 900LB 1500LB 2500LB/customize
End connection NPT,BSPT,BSP,DIN/customize
Size 1/4"-2" /customize
Valve Specification
DN Size(mm)
L D D1 D2 b Z-d H W
15 108 95 65 45 14 414 95 140
20 117 105 75 55 14 414 105 160
25 127 115 85 65 14 414 113 180
32 140 135 100 78 16 418 135 250
40 165 145 110 85 16 418 142 300
50 178 160 125 100 16 418 154 350
65 191 180 145 120 18 418 175 350
80 203 195 160 135 20 818 190 400
100 229 215 180 155 20 818 225 500
125 356 245 210 185 22 818 245 600
150 394 280 240 210 24 823 265 800
200 457 335 295 265 26 1223 305 800
250 533 405 355 320 30 1225 370 1300

PN DN Size(mm)
L D D1 D2 B N-φ H
1.6MPa 25 160 115 85 65 14 4-14 275
32 180 135 100 78 16 4-18 280
40 200 145 110 85 16 4-18 330
50 230 160 125 100 16 4-18 350
65 290 180 145 120 18 4-18 370
80 310 195 160 135 20 8-18 400
100 350 215 180 155 20 8-18 415
125 400 245 210 185 22 8-18 460
150 480 280 240 210 24 8-23 510
200 550 335 295 265 26 12-23 710
250 650 405 355 320 30 12-25 786
300 750 460 410 375 30 12-25 925

RFQ

Q1. What is your MOQ?

Our MOQ is one piece.

Q2. Do you provide sample for customer?
Yes, sample is available.

Q3. Do you do OEM service?
Yes, we accept OEM order and can make customer's LOGO on the products.

Q4. Do you support customization?
Yes, customization is acceptable.

Q5. Can you advise suitable cryogenic valves to me?
We have more than 15 years experience in cryogenic field. We are professional in valve selection and will advise you suitable valves with detailed parameters and prices.

Q6. How long is your delivery time?
It usually takes 5-30 days depending on the quantity of the order and the stock.
