Specifications
Brand Name :
TOBO
Model Number :
SS316L, 304
Certification :
ISO
Place of Origin :
China
MOQ :
3 PCS
Price :
1.2USD
Payment Terms :
D/P, T/T, Western Union
Supply Ability :
30000PCS
Delivery Time :
7work days
Packaging Details :
Plywood or as The Customers′ Requirement.
Sizes :
2"~16"
Pressure :
Class 150/2500
Standard :
DIN, GB
Temperature range :
-29°C to 425°C
HS Code :
8481804090
Description

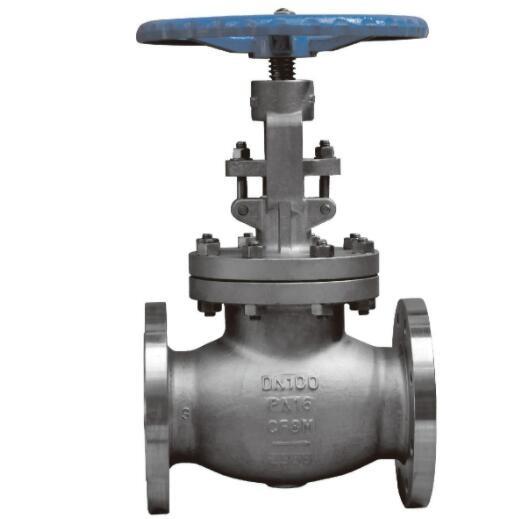

BS1873 Carbon Steel Flange Ends Globe Valve

Product Description

ANSI 150LB/300LB CF8/304 CF8M/316 Flanged Stainless Steel Globe Valve

A globe valve, different from ball valve, is a type of valve used for regulating flow in a pipeline, consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body.
Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. This has an opening that forms a seat onto which a movable plug,can be screwed in to close (or shut) the valve.The plug is also called a disc or disk.In globe valves,the plug is connected to a stem which is operated by screw action using a handwheel in manual valves.Typically,automated globe valves use smooth stems rather than threaded and are opened and closed by an actuator assembly.

Descriptions:

1) Design standard: ASME B16.34
2) Flange standard: ASME B16.5
3) Face to Face: ASME B16.10
4) Inspection standard: API598
5) Material: ASTM A351-CF8,CF8M,304,316
ASTM A216-WCB
6) Working pressure: 150LB/300LB
7) Sizes: 1/2" ~ 16"
8) Metal to metal sealing
9) Hand Wheel Operation
10) Working temperature:-20~ 300 degree C
11) Working medium: Water,Oil,Acid,ect.

Standard SS 316 SS 316L SS 316H SS 316TI
UNS S31600 S31603 S31609 S31635
WERKSTOFF NR. 1.4401 / 1.4436 1.4404 / 1.4435 - 1.4571
AFNOR Z7CND17‐11‐02 Z3CND17‐11‐02 / Z3CND18‐14‐03 - Z6CNDT17‐12
JIS SUS 316 SUS 316L - SUS 316Ti
GOST - 03Ch17N14M3 / 03Ch17N14M2 - 08Ch17N13M2T
BS 316S31 / 316S33 316S11 / 316S13 - 320S31
EN X5CrNiMo17-12-2 / X3CrNiMo17-13-3 X2CrNiMo17-12-2 / X2CrNiMo18-14-3 - X6CrNiMoTi17-12-2

Type Flange globe valve
Application Manual
Temperature of Media Minus 29 degrees to 150 degrees
Power Manual
Media Water, Oil, Air, And Some Corrosive liquid
Port Size DN32
Structure Flange globe valve
Size 1-1/4inch

Part Material

No. Part Name Material No. Part Name Material
1 Body CF8 CF8M WCB 10 Stem 201
2 Disc CF8 CF8M WCB 11 Handwheel WCB
3 Open-loop 201 12 Valve-Stem Nut 201
4 Valve Cover CF8 CF8M WCB 13 Packing Gland 201
5 Bolt Stud 201 14 Bolt 201
6 Gasket PTFE 15 Hexnut 201
7 Hexnut 201 16 Slipknot bolt 201
8 Packing Flexible graphite 17 Loking plate 201
9 Gland CF8 CF8M WCB

And the manufacturing and maintenance are convenient,and the pressure application range is wide.

Type Flange globe valve
Application Manual
Temperature of Media Minus 29 degrees to 150 degrees
Power Manual
Media Water, Oil, Air, And Some Corrosive liquid
Port Size DN32
Structure Flange globe valve
Size 1-1/4inch

Stainless Steel Globe Valve BS1873 Carbon Steel Flange Ends Globe Valve

Stainless Steel Globe Valve BS1873 Carbon Steel Flange Ends Globe ValveStainless Steel Globe Valve BS1873 Carbon Steel Flange Ends Globe Valve
