Screwed End Stainless Steel Globe Valve UK 1/2 Under 150lbs ~ 800lbs Pressure
Screwed End Stainless Steel Globe Valve UK 1/2 Under 150lbs ~ 800lbs Pressure
Specifications
Brand Name :
TOBO
Model Number :
SS304
Certification :
API ISO CE
Place of Origin :
China
MOQ :
5Pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000Pcs per Month
Delivery Time :
10 working days
Packaging Details :
Carton, Ply-Wooden case or according to the clients request
Production Name :
Flanged End Globe Valve
Ends :
Flanged Ends Or Threaded
Material :
SS304
Application :
Gas,Oil,Water, Corrosie Liquid and Steam
Size :
DN80
Pressure :
PN16
Tempreture :
High Temperature
Stem Thread Position :
Outside Screw Stem Globe Valve
Description

Screwed End Stainless Steel Globe Valve UK 1/2" Under 150lbs ~ 800lbs Pressure

Detailed Product Description
Product Name: Globe Valve Application: Oil, Gas, Water, Steam Etc.,
Size: DN15 ~DN50 Pressure: PN16~160/ 150lbs~2500lbs/JIS 10K/20K
Standard: API 6D/ ANSI 16.5 B/ JIS 20K/JIS 10K Temperature: -29~425 C
Body: Cast Steel/WCB/WC6/stainless Steel Stem: Stainless Steel/ 2Cr13
Connect: Screwed Or Welding
High Light:

cast steel globe valve

,

2 inch globe valve

Screwed End Globe Valves UK 1/2" Under 150lbs ~ 800lbs Pressure

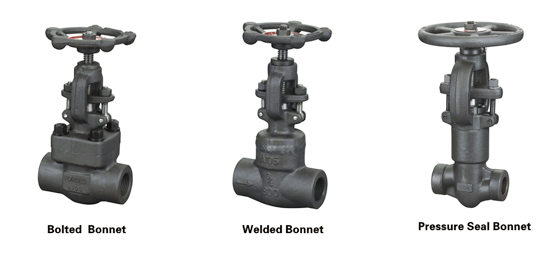

Forged steel globe valves are available in three bonnet designs.

The first design is the Bolted, with male-female joint, spiral wound gasket, made in F304L/graphite.Ring joint gasket are also available on request.

The second design is the welded bonnet, with a threaded and seal welded joint.

On request a full penetration strength welded joint is available.

The third design is the pressure seal bonnet, with a threaded and pressure seal bonnet joint.

Mail part & material

NO. Part Name CS to ASTM AS to ASTM SS to ASTM
Type A105 Type F22 Type F304(L) Type F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Disc A276 420 A276 304 A276 304(L) A276 316(L)
3 Stem A182 F6 A182 F304 A182 F304(L) A182 F316(L)
4 Gasket Corrugated SS+ graphite SS+PTFE
5 Bonnet Bolt A105 A276 304 A276 F304()L A276 F316(L)
6 Bonnet Bot A193 B7 A193 B16 A193 B8 A193 B8M
7 Pin A276 420 A276 304
8 Gland A276 410 A182 F304(L) A182 F316(L)
9 Gland Eyebolt A193 B7 A193 B16 A193 B8 A193 B8M
10 Gland Flange A216 WCB A351 CF8
11 Gland Nut A194 2H A194 4 A194 8 A194 8M
12 Yoke Nut A276 410
13 H.W.Lock Nut A194 2H A194 4 A194 8 A194 8M
14 Nameplate SS
15 Handwheel A197
16 Stem Packing Flexible PTFE
Suitable Medium Water, oil, gas etc., Water, oil, gas etc., HNO3,CH3OOH etc
Suitable Temperature -29℃～425℃ -29℃～550℃ -29℃～180℃

Technical Specification

※ Globe valves conform to API 602, and ASME B 16.34


※ each are tested according to API 598, and marking is per MSS SP-25

※ Full Port or Conventional Port


※ Outside Screw and Yoke(OS & Y)


※ Two piece self-aligning packing gland


※ Bolted bonnet with spiral wound gasket, threaded and seal welded bonnet or threaded and

pressure seal bonnet

※ Integral backseat


※ Socket weld ends to ASME B16.11


※ Screwed Ends (NPT) to ANSI/ASME B1.20.1

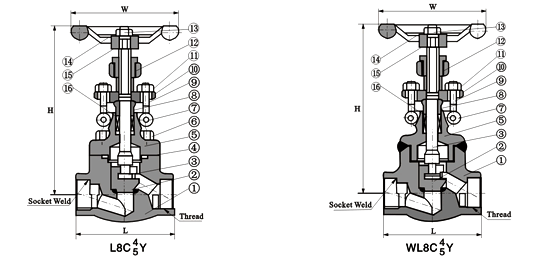

Main external and connection dimension

Screwed End Stainless Steel Globe Valve UK 1/2

Screwed End Stainless Steel Globe Valve UK 1/2

CLASS 800LB

NPS Conv. 3/8" 1/2" 3/4" 1" 11/4" 11/2" 2"
Full 3/8" 1/2" 3/4" 1" 11/4" 11/2" 2"
L 79 79 92 111 120 152 172 200
H(OPEN) 166 166 171 207 240 258 330 355
W 100 100 100 125 160 160 180 200
Weight Bolted 1.9 1.9 2.1 3.5 6.0 7.5 11.4 14.6
Welded 1.7 1.7 1.9 3.3 5.2 6.8 10.6 13.8

CLASS 900LB~ 1500LB

NPS Conv. 3/8" 1/2" 3/4" 1" 11/4" 11/2" 2"
Full 3/8" 1/2" 3/4" 1" 11/4" 11/2" 2"
L 92 111 111 120 152 172 200 220
H(OPEN) 171 207 207 240 258 330 355 370
W 100 125 125 160 160 180 200 240
Wieght Bolted 2.2 3.7 3.6 6.8 7.6 11.6 15.0 21.9
Welded 2.0 3.4 3.3 6.0 5.6 10.3 14.2 18.0
