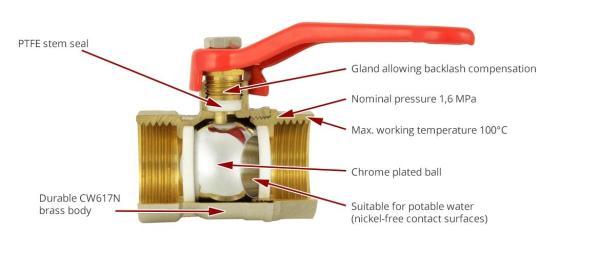

Self Relieving Seat Floating Ball Valve 28mm ANS I/ JIS / API / ASME / DIN / BS Standard
Self Relieving Seat Floating Ball Valve 28mm ANS I/ JIS / API / ASME / DIN / BS Standard
Self Relieving Seat Floating Ball Valve 28mm ANS I/ JIS / API / ASME / DIN / BS Standard
Self Relieving Seat Floating Ball Valve 28mm ANS I/ JIS / API / ASME / DIN / BS Standard
Self Relieving Seat Floating Ball Valve 28mm ANS I/ JIS / API / ASME / DIN / BS Standard
Self Relieving Seat Floating Ball Valve 28mm ANS I/ JIS / API / ASME / DIN / BS Standard
Specifications
Brand Name :
TOBO
Model Number :
Floating Ball Valve
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000PCS
Delivery Time :
15-20 DAYS
Packaging Details :
Valves are wrapped in plastic bubble sheet
Product Name :
Floating Ball Valve
Material :
SS316
Presure :
1,000/800psi
Size :
DN65
Usage :
Oil and Gas
Temperature of Media :
High-Pressure Temperature
Temperature :
-20 to 425°C
Description

Self Relieving Seat Floating Ball Valve 28mm ANS I/ JIS / API / ASME / DIN / BS Standard

Detailed Product Description
Product Name: Floating Ball Valve Size: DN15 ~DN600
Standard: ANS I/ JIS / API / ASME / DIN / BS / Temperature: -20~429 C
Seat: Self Relieving Seat Ball: Stainless Steel/ SS304/SS316/SS201
Stem: Stainless Steel / 2Cr13 Connect: L Or T
High Light:

flanged ball valves

,

stainless steel ball float valve

Self Relieving Seat Floating Ball Valve 28mm ANS I/ JIS / API / ASME / DIN / BS Standard

Floating Ball Valve Technical Specification

- Nominal diameter: 1/2”-25”

- Applicable Temperature: -29℃～425℃(steel) -40℃～550℃(stainless steel)

- Nominal pressure: 150lbs, 300lbs, 600Lb,900lbs,1500lbs PN16/25/40/64/100/160, JIS 5K /10K/20K

- Applicable Medium: water ,gas,oil,and other causticity medium.

Floating Ball Valve Applications Standard

- Manufacture standard : API 608/ DIN/ BS/JIS

- Face to face dimension: ANSI B 16.10,API 6D/ DIN/ BS/JIS

- Flange dimension: ANSI B 16.5 MSS-SP-44/ DIN/ BS/JIS

- Test: API 598 API 6D/ DIN/ BS/JIS

Floating Ball Valve Description:

The ball valve is designed and manufactured according well to API 608. Floating ball when small caliber,

and fixed ball when large caliber.

It has fire protection structure and antistatic device. Widely used for petroleum, chemistry, water

treatment industries.

Floating Ball Valve Features:

- Reliable Seal Structure

The seat is made of PTFE. Because the contact area between seat and the ball will becomes more high

with rising of pressure of the middle cavity, Small Resistance ball valve has the smallest resistance of all

the valve, in the case of reduced bore, the resistance is little still.

-Prompt switch

The ball valve circumrotates in 90°,It work quickly to open or close.

Test Pressure

Test Item Shell Test Seal Test Back Seal Test Air Seal Test
Medium Water Air
Unit MPa Lbf/in2 MPa Lbf/in2 MPa Lbf/in2 MPa Lbf/in2
Pressure (Class) 150 3.1 450 2.2 315 2.2 315 0.5-0.7 60-100
300 7.8 1125 5.6 815 5.6 815
400 10.3 1500 7.6 1100 7.6 1100
600 15.3 2225 11.2 1630 11.2 1630
900 23.1 3350 16.8 2440 16.8 2440

Main Connection Dimensions

Self Relieving Seat Floating Ball Valve 28mm ANS I/ JIS / API / ASME / DIN / BS Standard

Type Size(mm) Dimension(mm)
inch DN L D D1 D2 b Z-Φd H W
Q41F/H/Y-150Lb
Q341 F/H/Y-150Lb
Q641 F/H/Y-150Lb		 1/2″ 15 108 89 60.5 35 12 4-Φ15 68 115
3/4″ 20 117 98 70 43 12 4-Φ15 75 130
1″ 25 127 108 79.5 51 12 4-Φ15 85 150
11/4″ 32 140 117 89 64 13 4-Φ15 96 190
11/2″ 40 165 127 98.5 73.2 15 4-Φ15 107 230
2″ 50 178 152 120.7 92 16 4-Φ19 118 240
21/2″ 65 190 177.8 139.7 104.7 18 4-Φ19 145 280
3″ 80 203 190.5 152.4 127 19 4-Φ19 160 310
4″ 100 229 229 190.5 157 24 8-Φ19 185 330
5″ 125 356 254 216 185.7 26 8-Φ22 230 600
6″ 150 394 279 241.3 216 26 8-Φ22 260 800
8″ 200 457 343 298.5 270 29 8-Φ22 310 1000
10″ 250 533 406 362 324 31 12-Φ25 350 1200

Type Size(mm) Dimension(mm)
inch DN L D D1 D2 b Z-Φd H W
Q41F/H/Y-300Lb
Q341F/H/Y-300Lb
Q641F/H/Y-300LbY		 1/2″ 15 140 95 66.5 35 15 4-Φ15 72 115
3/4″ 20 152 117 82.5 43 16 4-Φ19 75 130
1″ 25 165 124 89 51 18 4-Φ19 85 150
11/4″ 32 178 133 98.5 64 19.5 4-Φ19 95 180
11/2″ 40 190 156 114.3 73.2 21 4-Φ22 110 230
2″ 50 216 165 127 92 23 8-Φ19 120 240
21/2″ 65 241 190.5 149.4 104.7 26 8-Φ22 150 280
3″ 80 283 210 168.5 127 29 8-Φ22 165 310
4″ 100 305 254 200.2 157 32 8-Φ22 190 330
5″ 125 381 279 235 185.7 35 8-Φ22 240 600
6″ 150 403 318 270 216 37 12-Φ22 270 800
8″ 200 502 381 330 270 42 12-Φ25 315 1000
10″ 250 568 445 387.5 324 48 16-Φ29 380 1200

Type Size(mm) Dimension(mm)
inch DN L D D1 D2 b Z-Φd H W
Q41F/H/Y-600Lb
Q341F/H/Y-600Lb
Q641F/H/Y-600Lb		 1/2″ 15 165 95 66.5 35 15 4-Φ15 88 115
3/4″ 20 190 118 82.5 43 16 4-Φ19 98 130
1″ 25 216 124 89 51 18 4-Φ19 105 150
11/2″ 40 241 156 114.3 73.2 23 4-Φ22 135 180
2″ 50 292 165 127 92 26 8-Φ19 155 240
3″ 80 356 210 168.2 127 32 8-Φ22 175 280
4″ 100 432 273 216 157 38 8-Φ25 210 330
6″ 150 559 356 292 216 48 12-Φ29 340 800
8″ 200 660 419 349 270 56 12-Φ32 400 1000
10″ 250 787 508 432 324 64 16-Φ35 440

1200
