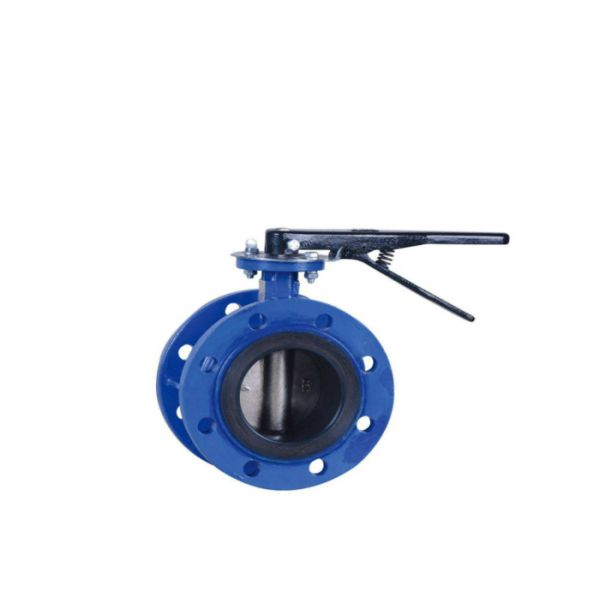

Wafer Butterfly Valve With Blue Trigger Handle Stainless Steel ZG1Cr18Ni12Mo2Ti 2 PN10
Wafer Butterfly Valve With Blue Trigger Handle Stainless Steel ZG1Cr18Ni12Mo2Ti 2 PN10
Specifications
Brand Name :
TOBO
Model Number :
Wafer Butterfly Valves
Certification :
DIN2501 （DIN2534＿ISO2084）
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000PCS
Delivery Time :
7-10DAYS
Packaging Details :
Packed in plywood wooden cases
Size :
DN50
Class :
PN10
Body :
ZG1Cr18Ni12Mo2Ti
Drilling :
Dual Drilled
Temperature :
maximum 130°C temperature
Structure type :
Resilient Seated
Disc :
316
Packing :
Flexible graphite, fluorine plastic
Description

Wafer Butterfly Valve With Blue Trigger Handle Stainless Steel ZG1Cr18Ni12Mo2Ti 2" PN10

1. Nominal Size: DN50~DN2800 / NPS 2”~48”;

2. Nominal pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100 , Class150

3. Body material: WCB,ZG1Cr5Mo,ZG1Cr18Ni9Ti,CF8(304),CF3(304L),ZG1Cr18Ni12Mo2Ti,CF8M(316),CF3M(316L)

4. Connecting type: Wafer, Double flange, Lugged wafer, Butt Weld.

5. Application: Petroleum, Chemical industry, Metallurgy, Electric power, Food, Pharmacy Water supply and drainage, Gas delivery, it can service as adjusting flow or cut and connect medium.

6. Suitable medium: Water, Sewage, Sea water, Air, Steam, Coal gas, Corrosive medium etc.

Standard

1. Design and manufacture standard: JB/T 8527 , API 609

2. Face to face dimension standard: ANSI B 16.10-1992

3. Flange dimension standard: ANSI B16.5

4. Test and inspection standard:API 598-82

Advantage

1. Three- eccentric structure: When valve is closed more tight, then seal will be more safe Sealing surface is very reliable, and with zero-leakage.

2. Metal seat : Seat is bead welded with hard metal, valve can bear corrosive, high temperature, abrasion. With long service life.

3. Multilevel hard and soft overlapped seal ring: easy to install, regulate, and replacement.

4. The whole valve adopt steel material, it has a character of fireproof in itself.

Fingure: B5000F
Size : 2"-36"
Design Standard : API 609-83
Face to Face : ANSI B16.10
Flange Drilling : ANSI B16.5
Application
characteristic is :due to use three eccentric configuration, hermetic capability reliably,
which ensure disc never touch sealing seat when it start, solve the problem of
hermetical seat burden unequally,prolong service life, and ensure reliable hermetic
advantage capability with of high temperature resistant, wearable,antisepsis etc.

Specification
Structre type:double flanged three eccenticity
Design standard:API609-83
flange connection dimension:ANSI B 16.5
Flange drilling:ISO5211.
Structure length:ANSI B 16.10-1992
Pressure test:API 598-82

Materials

Body WCB,CF8M　
Dise WCB,CF8M
Stem 416 Cr13Cr18Ni9Ti　
Seal ring 316,Fluorine plastic
Packing Flesxible graphite,fluorine plastic　

Dimensions

API 150LB Series
DN L H H2 D D1 D2 M n-φd1
50 108 110 345 152 120.5 92 M18 4-19
80 114 125 380 190 152.5 127 M18 4-19
100 127 145 415 229 190.5 157 M18 8-19
125 140 165 455 254 216 186 M20 8-22
150 140 175 545 279 241.5 216 M20 8-22
200 150 210 645 343 298.5 270 M20 8-22
250 160 250 695 406 362 324 M24 12-25
300 178 285 830 483 432 381 M24 12-25
350 190 320 900 533 476 413 M27 16-29
400 216 355 980 597 540 470 M27 16-29
450 222 380 1030 635 578 533 M30 16-32
500 229 415 1110 699 635 584 M30 20-32
600 267 475 1305 813 749.5 692 M33 20-35
750 292 580 1525 985 914 857 M33 28-35
800 318 630 1585 1060 978 914 M39 28-41
900 330 680 1765 1168 1085 1022 M39 32-41

API 300LB Series
DN L H H2 D D1 D2 M n-φd1
50 108 110 345 165 127 92 M18 8-19
80 114 125 380 210 168 127 M20 8-22
100 127 145 415 254 200 157 M20 8-22
125 140 165 455 279 235 186 M20 8-22
150 140 175 545 318 270 216 M20 12-22
200 150 210 645 381 330 270 M24 12-26
250 160 250 695 445 387 324 M27 16-29
300 178 285 830 521 451 381 M30 16-32
350 190 320 900 584 514 413 M30 20-32
400 216 355 980 648 571 470 M33 20-35
450 222 380 1030 711 628 533 M33 24-35
500 229 415 1110 775 686 584 M33 24-35
600 267 475 1305 914 813 692 M39 24-41
750 292 580 1525 1092 997 857 M45 28-49
900 330 680 1765 1270 1168 1022 M50 32-53


Types of Butterfly Valves Based on Body Construction

Based on the type of ends of the body butterfly valves are available in following types.

  • Both Flanged Ends

  • Wafer Type Ends

  • Lug Type Ends

  • Butt Welded Types Ends

Water Type

The wafer body is placed between pipe flanges, and the flange bolts surround the valve body. A wafer type butterfly valve is easy to installed but it cannot be used as an isolation valve.

Seat Types

Butterfly valves can be metal-to-metal seated, soft seated, or with a fully lined body and disc. The first image is of a soft seated fully lined body and disc valve. Second, is a soft seat with metal disk and the third is metal to metal seat type valve.

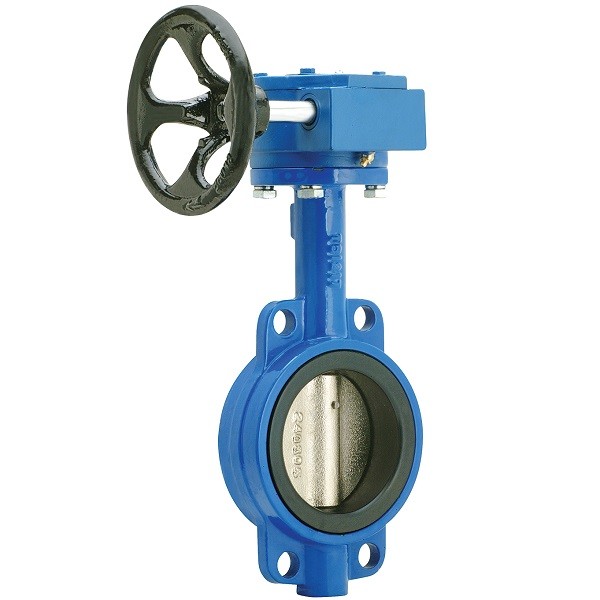

Wafer Butterfly Valve With Blue Trigger Handle Stainless Steel ZG1Cr18Ni12Mo2Ti 2Wafer Butterfly Valve With Blue Trigger Handle Stainless Steel ZG1Cr18Ni12Mo2Ti 2
