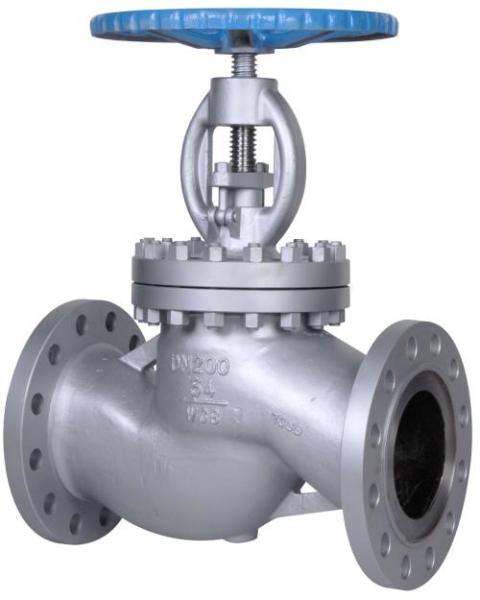

DN80 SS304 PN16 Stainless Steel CLASS 600~2500 Pressure Sealed Globe Valve

Key Features:

• OS&Y,Rising stem,Plug Disc
  Pressure sealing Bonnet,Threaded or welded seating
  ASTM A216 WCB,A217 WC6,A351CF8,A351CF8M,
  A351 CF3,A351 CF3M,A351 CN7M

  Standards compliance
  Design and Manufacture: ANSI B16.34,BS1873
  Face to face(end to end): ANSI B16.10
  Flanged connection: ANSI B16.5
  Butt welded end: ANSI B16.25
  Test and inspection: API598.

  A.Back up ring: Absorbs thrust applied by internal pressure
  B.Thrust ring: Protects the soft metallic gasket from deformation
  C.Gasket: Unique angular design provides superior sealing

  Materials
  NO.	Part name	Material
  24	Grease nipple	Brass
  23	Grub screw	Carbon steel
  22	Hand wheel nut	Carbon steel
  21	Hand wheel	Malleable lron/cast steel ducile lron
  20	Yoke nut	Carbon steel/stainless steel
  19	Eye bolt and nut	A 193 B7/A194 2H~A193 B8/A194 8
  18	Pin	Carbon steel/stainless steel
  17	Stem nut	A 439-D2/cu-alloy
  16	Gland flange	Carbon steel~stainless steel
  15	Gland	Stain less steel
  14	Gland bush	Carbon steel~stainless steel
  13	Back seat	Stainless steel
  12	Disc nut	CS+SS/SS/SS+STL
  11	Stem	Stainless steel
  10	Seat ring	CS+SS/SS/SS+STL(See body material)
  09	disc	CS+SS/SS/SS+STL(See body material)

  NO.	Part name	WCB	LCB	WC6	WC9
  08	Stud and nut	A193 Gr B7/A194 Gr 2H	A193 Gr B7/A194 Gr 4	A193 Gr B16/A194 Gr 4/7	A193 Gr B16/A194 Gr 4/7
  07	Gland packing	Graphite	Graphite	Graphite	Graphite
  06	Gasket	Soft lron	Soft lron	Ss304	Ss304
  05	Thrust ring	A105	A182 F304	A182 F11	A182 F22
  04	Back up ring	A105	A182 F304	A182 F11	A182 F22
  03	Yoke	A216 Gr WCB	A352 Gr LCB	A271 Gr WC6	A271 Gr WC9
  02	Bonnet	A216 Gr WCB	A352 Gr LCB	A271 Gr WC6	A271 Gr WC9
  01	Body	A216 Gr WCB	A352 Gr LCB	A271 Gr WC6	A271 Gr WC9

  NO.	Part name	C5	C12	CF8	CF8M
  08	Stud and nut	A193 Gr B16/A194 Gr 4/7	A193 Gr B16/A194 Gr 4/7	A193 Gr B7/A194 Gr 2H	A193 Gr B7/A194 Gr 2H
  07	Gland packing	Graphite	Graphite	Graphite	Graphite
  06	Gasket	Ss304	Ss304	Ss304	Ss316
  05	Thrust ring	A182 F22	A182 F22	A182 F304	A182 F316
  04	Back up ring	A182 F22	A182 F22	A182 F304	A182 F316
  03	Yoke	A216 Gr C5	A217 Gr C12	A351 Gr CF8	A351 Gr CF8M
  02	Bonnet	A216 Gr C5	A217 Gr C12	A351 Gr CF8	A351 Gr CF8M
  01	Body	A216 Gr C5	A217 Gr C12	A351 Gr CF8	A351 Gr CF8M

  CLASS 600~2500 PRESSURE SEALING GLOBE VALVE

  Dimensions
  Class 600
  Size	inch	2	2-1/2	3	4	5	6	8	10	12
  L-L1	mm	292	330	356	432	508	559	660	787	838
  L1-SP	mm	178	216	254	305	381	457	584	711	813
  H	mm	510	610	610	725	800	1010	1180	1360	1780
  K	mm	250	300	300	350	500	550	600	600	400 ?ont
  WT	Kg	38	65	105	105	185	230	410	615	895

  Dimensions
  Class 900
  Size	inch	2	2-1/2	3	4	5	6	8	10	12
  L-L1	mm	368	419	381	457	559	610	737	838	965
  L1-SP	mm	225	254	305	365	432	508	660	787	914
  H	mm	550	580	675	750	815	1085	1300	1420	1825
  K	mm	300	350	350	500	500	350 ?ont	350 ?ont	400 ?ont	450 ?ont
  WT	Kg	70	85	105	130	255	315	670	925	1200

  Dimensions
  Class 1500
  Size	inch	2	2-1/2	3	4	5	6	8	10
  L-L1	mm	368	419	470	546	673	705	832	991
  L1-SP	mm	216	254	305	405	483	559	711	864
  H	mm	565	580	380	800	825	1130	1450	1535
  K	mm	300	350	400	450	500	600	450 ?ont	500 ?ont
  WT	Kg	80	90	115	160	300	410	650	1150

  Dimensions
  Class 2500
  Size	inch	2	2-1/2	3	4	5	6	8	10
  L-L1	mm	451	508	578	673	794	914	1022	1270
  L1-SP	mm	279	330	368	457	533	610	762	914
  H	mm	575	605	725	835	875	1200	1510	1720
  K	mm	350	350	350 ?ont	400 ?ont	400 ?ont	400 ?ont	450 ?ont	550 ?ont
  WT	Kg	95	110	125	210	565	615	1050	1525

Globe valves are extensively employed to control flow. The range of flow control, pressure drop, and duty must be

considered in the design of the valve to avert premature failure and to assure satisfactory service. Valves subjected

to high-differential pressure-throttling service require specially designed valve trim.

Generally the maximum differential pressure across the valve disc should not exceed 20 percent of the maximum

upstream pressure or 200 psi (1380 kPa), whichever is less. Valves with special trim may be designed for applications

exceeding these differential pressure limits.

Advantages and disadvantages of Globe valves

ADVANTAGES:

• Good shutoff capability
• Moderate to good throttling capability
• Shorter stroke (compared to a gate valve)
• Available in tee, wye, and angle patterns, each offering unique capabilities
• Easy to machine or resurface the seats
• With disc not attached to the stem, valve can be used as a stop-check valve

DISADVANTAGES:

• Higher pressure drop (compared to a gate valve)
• Requires greater force or a larger actuator to seat the valve (with pressure under the seat)
• Throttling flow under the seat and shutoff flow over the seat

Packing Details:

We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.

Delivery Details: According to the order, 7~60days
